SF133M 13.3 inch 1920 x 1080 HDMI Portable Display for Raspberry Pi/ PS4/ XBOX/ NS

Description


The HD 1920 X 1080 resolution and true color (16.7M) provide you a stunning color performance. The whole aluminum alloy shell can meet your requirements of beautiful appearance. It can be charged by USB3.0, 5V power bank, 5V/ 2A power adapter. There are two HDMI interfaces, 3.5mm headset jack and 75mm x 75mm wall hole on the display. It can be used as a computer screen, phone screen, wireless screen, also used as a display for Raspberry Pi, ps4, XBOX/ NS gamer. The HD 1920 X 1080 resolution and true color (

Model:SF133M

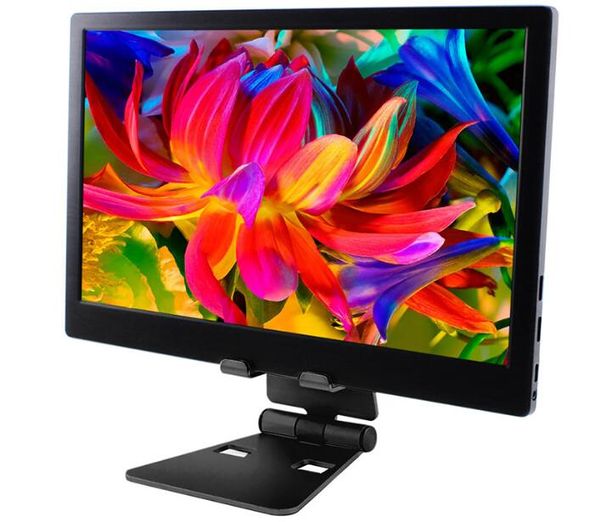

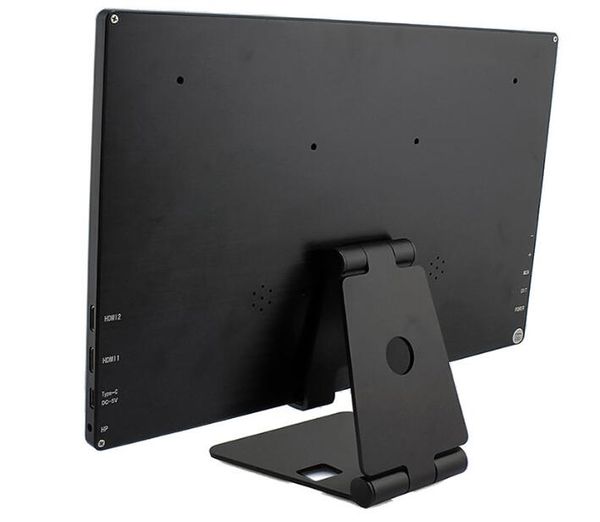

SF133M 13.3 inch 1920 x 1080 HDMI Portable Display for Raspberry Pi PS4 XBOX NS 1.jpg SF133M 13.3 inch 1920 x 1080 HDMI Portable Display for Raspberry Pi PS4 XBOX NS 2.jpg

Features


  • Full HD 1920 x 1080 resolution and true color (16.7M).
  • Built-in sound.
  • New edp full view LCD screen.
  • A variety of charging methods.
  • Supports 75mm x 75mm wall hole.

Specifications


  • Resolution: 1920 x 1080
  • Color gamut: 72%
  • Dimension: 320mm x 200mm x 8mm
  • Screen type: IPS TFT- LCD
  • Brightness: 300cd/m2
  • Contrast ratio: 800: 1
  • Power voltage: 5V/ 2A ( USB type C)
  • Interface type: dual mini HDMI
  • Visual angle: 178 whole angle
  • Screen ratio: 16: 9
  • Display color: 16.7M (8bit)
  • Shell material: aluminum alloy
  • Color: black, blue, red
  • The weight of screen: 670g

Usage


1: Connect Raspberry Pi to use

Step 1: Please download the image of the latest version from Raspberry Pi's website.
https://www.raspberrypi.org/downloads/raspbian/
Step 2: Download the compressed file to your PC and unpack it to get the .Img file.
Step 3: The TF card is connected to the PC and formatted using the SDFormatter software.
Step 4: Open the Win32DiskImager software, select the system image prepared in step 1, and click write to burn the system image.
Step 5: After the programming is completed, then insert the TF card into the Raspberry Pi.
Step 6: Connect the Mini HDMI interface of the 13.3-inch display to the HDMI interface of the Raspberry Pi.
Step 7: Use a 5V/2A power adapter to connect to the DC interface of the screen. Power on the Raspberry Pi, and wait for a few seconds to display normally.

2:Use as PC Monitor

Step 1: Connect the computer HDMI output signal to the display’s Mini HDMI interface by using the HDMI cable.
Step 21: Use the 5V/2A power adapter or Micro USB cable to power the screen with 5V/2A.
