5.0 Inch HDMI-Compatible Display for Raspberry Pi Compatible with Jetson Nano, Beaglebone

Description


This is a 5-inch monitor with 800*480 resolution and four corner holes that allow you to mount the monitor to other devices. The back of the monitor is also equipped with 4 nut seats for mounting and fixing the Raspberry Pi. Comes with headphone port and speaker jack. Using a capacitive USB touch screen, you only need to power on the USB touch port to realize the touch function without installing a driver. Plug and play. The signal goes through the hdmi port. Compatible with multiple devices.

Model: DIS05490T

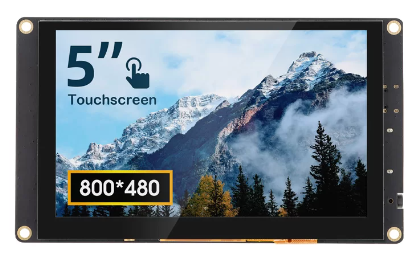

5 inch HDMI-Compatible Display.png

Alt text

Features


  • 5.0inch lcd screen with 800*480 resolution
  • Capacitive touch operation
  • Speaker and headphone jacks
  • Compatible with multiple operating systems (Raspbian, Ubuntu, Windows, Android, MAC OS and Chrome OS)
  • Plug and play, no driver installation required
  • Four nut mounts on the back for easy Raspberry Pi installation

Specification


  • Touch type: 5-point capacitive touch
  • Resolution: 800*480
  • Brightness: 300cd/m²
  • Display Type: TN Panel
  • Screen: TFT-LCD screen
  • Display Driver IC: ILI6122 & ILI5960
  • External Power Supply: DC5V-2A
  • Switch: Toggle Up/Down/Switch
  • Interface:Power Input & USB Touch Port, 4P Port Speaker, 3.5MM Headphone Port
  • Product Size: 137*80*14mm
  • Weight: 140g
