Description¶

This fingerprint module can store 300 fingerprints and has the functions of collecting fingerprints, reading fingerprints, and identifying fingerprints. It is not only small in size, low in power consumption, simple in interface, high in reliability, and also has fast recognition speed and good adaptability to wet and dry fingers.
When the fingerprint image is read, it has a sensitive response and judgment to dry and wet fingers and obtains the best imaging quality, which is suitable for a wide range of people. At the same time, it has the function of self-learning, which can achieve better matching. The module also has the function of sensing the finger. When the finger is pressed on the fingerprint collection surface, the module Touch pin outputs a high level. The module communication interface is UART communication interface.
Model:DPI50249S

Module dimension drawing (unit: mm)¶

Module dimension drawing.png

Feature¶

Compact size and simple structure
Low power consumption, simple interface, high reliability
Fast recognition speed, good adaptability to wet and dry fingers, and fast fingerprint search

Parameter	VALUE
Sensor	Capacitive touch sensor
Resolution	508 DPI
Image pixels	160*160
Fingerprint image collection time	<110ms
Fingerprint capacity	300
Algorithmic search time	<30ms(100pcs)
Matching method	1:1,1:N
Overall recognition time	<1s(100pcs)
False acceptance rate	<0.001%
False rejection rate	<1%
Operating voltage	3.3±0.3（v）
Operating current	<55mA
Communication port	UART

Pin Definition¶

Pin Number	Name	Type	Function Description
1	Vsen	In	Fingerprint sensor power input, +3.3V
2	Touch	Out	Fingerprint sensor touch sensing signal output, active high by default
3	VDD	In	Module DSP power positive input, +3.3V
4	TX	Out	Serial data output, TTL logic level
5	RX	In	Serial data input, TTL logic level
6	GND	-	Signal ground, internally connected to power ground

The Wiring diagram：

The order of the pins is from right to left, ① in the figure is the No. 1 pin

Building a Smart fingerprint box¶

Download files:Smart fingerprint box

Implement a box that can lock and unlock by fingerprint identification:
1. Fingerprint sensor cable details:

2. Uploading code:

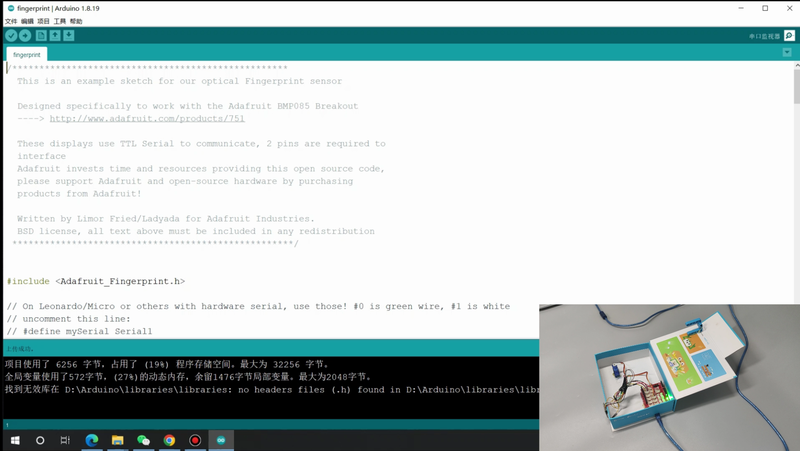

Upload code with Arduino：

#include <Adafruit_Fingerprint.h>
// For UNO and others without hardware serial, we must use software serial...
// pin #2 is IN from sensor (GREEN wire)
// pin #3 is OUT from Arduino  (WHITE wire)
// comment these two lines if using hardware serial
#include <Servo.h>
SoftwareSerial mySerial(2, 3);
Servo myservo;  // create servo object to control a servo
int i = 0;
int potpin = A0;  // analog pin used to connect the potentiometer
int val;    // variable to read the value from the analog pin

Adafruit_Fingerprint finger = Adafruit_Fingerprint(&mySerial);

void setup()
{
  Serial.begin(9600);
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
  myservo.write(80);
  while (!Serial);  // For Yun/Leo/Micro/Zero/...
  delay(100);
  Serial.println("\n\nAdafruit finger detect test");

  // set the data rate for the sensor serial port
  finger.begin(57600);
  delay(5);
  if (finger.verifyPassword()) {
    Serial.println("Found fingerprint sensor!");
  }
  else {
    Serial.println("Did not find fingerprint sensor :(");
    while (1) { delay(1); }
  }

  finger.getTemplateCount();
  Serial.print("Sensor contains "); Serial.print(finger.templateCount); Serial.println(" templates");
  Serial.println("Waiting for valid finger...");
}

void loop()                     // run over and over again
{
  getFingerprintIDez();
  delay(50);            //don't ned to run this at full speed.
}

uint8_t getFingerprintID() {
  uint8_t p = finger.getImage();
  switch (p) {
    case FINGERPRINT_OK:
      Serial.println("Image taken");
      break;
    case FINGERPRINT_NOFINGER:
      Serial.println("No finger detected");
      return p;
    case FINGERPRINT_PACKETRECIEVEERR:
      Serial.println("Communication error");
      return p;
    case FINGERPRINT_IMAGEFAIL:
      Serial.println("Imaging error");
      return p;
    default:
      Serial.println("Unknown error");
      return p;
  }

  // OK success!

  p = finger.image2Tz();
  switch (p) {
    case FINGERPRINT_OK:
      Serial.println("Image converted");
      break;
    case FINGERPRINT_IMAGEMESS:
      Serial.println("Image too messy");
      return p;
    case FINGERPRINT_PACKETRECIEVEERR:
      Serial.println("Communication error");
      return p;
    case FINGERPRINT_FEATUREFAIL:
      Serial.println("Could not find fingerprint features");
      return p;
    case FINGERPRINT_INVALIDIMAGE:
      Serial.println("Could not find fingerprint features");
      return p;
    default:
      Serial.println("Unknown error");
      return p;
  }

  // OK converted!
  p = finger.fingerFastSearch();
  if (p == FINGERPRINT_OK) {
    Serial.println("Found a print match!");
  } else if (p == FINGERPRINT_PACKETRECIEVEERR) {
    Serial.println("Communication error");
    return p;
  } else if (p == FINGERPRINT_NOTFOUND) {
    Serial.println("Did not find a match");
    return p;
  } else {
    Serial.println("Unknown error");
    return p;
  }

  // found a match!
  Serial.print("Found ID #"); Serial.print(finger.fingerID);
  Serial.print(" with confidence of "); Serial.println(finger.confidence);

  return finger.fingerID;
}

// returns -1 if failed, otherwise returns ID #
int getFingerprintIDez() {
  uint8_t p = finger.getImage();

  if (p != FINGERPRINT_OK)  return -1;

  p = finger.image2Tz();
  if (p != FINGERPRINT_OK)  return -1;

  p = finger.fingerFastSearch();
  if (p != FINGERPRINT_OK)  return -1;

  // found a match!
  Serial.print("Found ID #"); Serial.print(finger.fingerID);
  Serial.print(" with confidence of "); Serial.println(finger.confidence);
  if(finger.confidence > 80){
    if (i > 0){
      myservo.write(80);
      delay(1000);
      i = 0;
      Serial.print(i);
    }
    else{
      myservo.write(160);
      delay(1000);
      i = 1;
      Serial.print(i);
      }

    }

  return finger.fingerID;
}
