Crowbits-Protoboard

Description¶

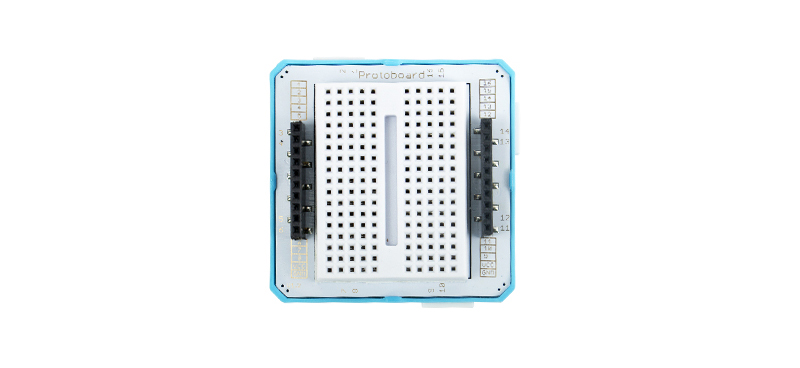

Protoboard is a module with a breadboard, you can build all kinds of circuits you want, and lead out 16 interfaces.

Features¶

Easy to use
Breadboard style

Specification¶

Operating Voltage: 3.3V DC
Supply mode: Crowbits Power Module
Dimensions: 56(L)*56(W)*13(H) mm

Usage¶

1. You can connect any position on the breadboard to the female connector with a DuPont cable, and you can output the signal to other modules.

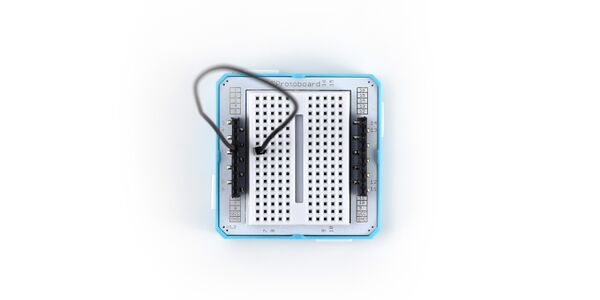

2. For example, I want to connect a position on the breadboard to the fourth output port, which can be connected as follows.
