Crowbits-Hall Sensor

Description

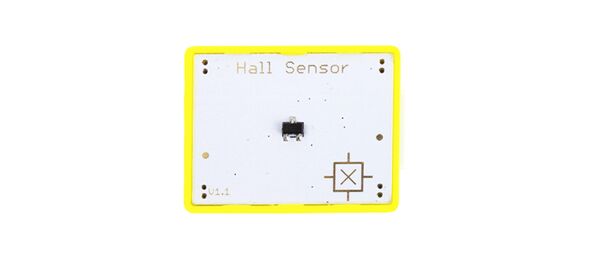

The hall sensor is a digital input module that is used to measure the magnitude of a magnetic field, it converts the change of magnetic field into a change in output voltage.


Features

  • Digital input module
  • Easy to use
  • High sensitivity

Specification

  • Operating Voltage: 3.3V DC
  • Supply mode: Crowbits Power Module
  • Dimensions: 31.5(L)*24.5(W)*13(H) mm

Usage

1. You also need to prepare a power module, such as Crowbits-Power Supply, and an output module, such as Crowbits-LED.

2. The connection mode is shown in the figure, but the signal feet of the input module and the output module must be connected.

Crowbits-Hall Sensor-Wiki 1.jpg

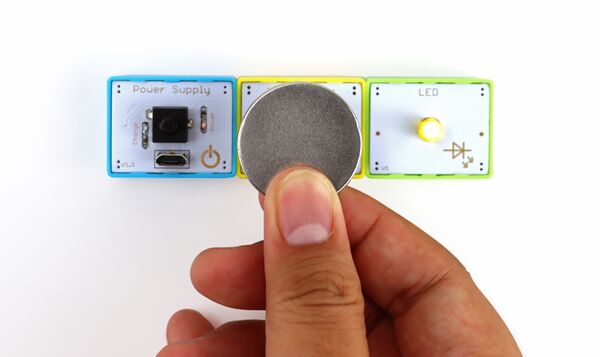

3. Then, turn on the power. When the sensor detects N polar magnetic field, the LED behind it will light up.

Crowbits-Hall Sensor-Wiki 2.jpg
