2.8inch TFT Screen 320*240 Touch Display for Arduino, Mega|ILI9341 Driver|Plug & Play¶
Description¶

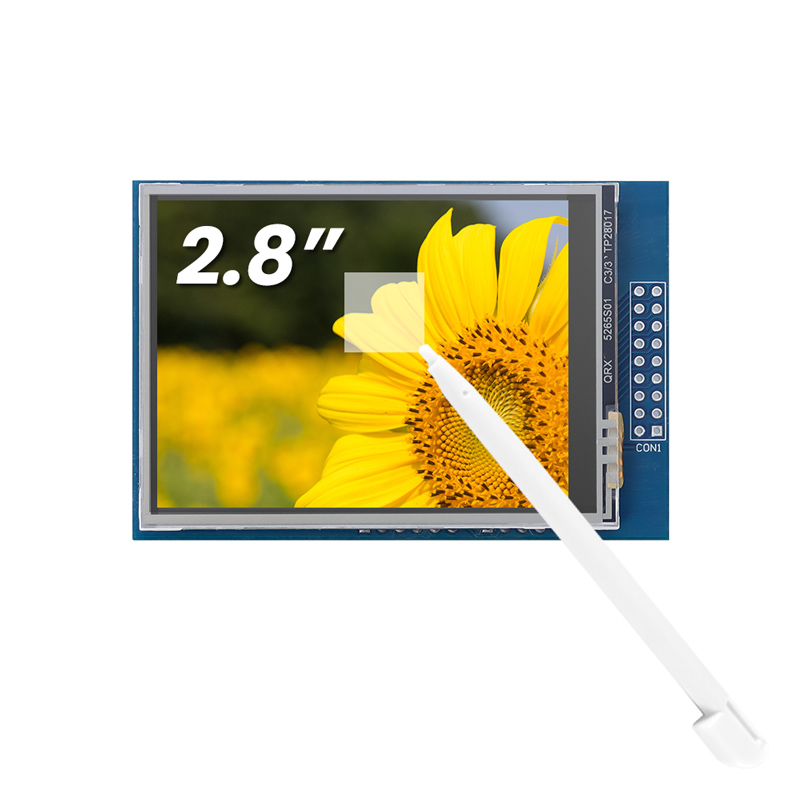

This is a 2.8-inch Arduino TFT color screen with 320 * 240 resolution.
Plug and play, strong compatibility. Supports plug and play use of development boards such as Arduino UNO and Mega2560, without additional wiring.
High-definition display, touch experience. Equipped with a 320x240 resolution display, supporting touch function and a touch pen, users can interact with the device through intuitive touch operation.
Supports 16-bit RGB 65K color display, which can present rich colors and meet various visual needs.
Efficient data transmission. Using an 8-bit parallel bus, the data refresh speed is faster than the traditional serial port SPI.
Onboard 5V/3.3V level conversion IC, compatible with 5V and 3.3V operating voltages, ensuring seamless docking with various development boards.
Onboard SD card slot, convenient for users to expand storage, and provides more flexibility and convenience for experiments and project development.
Rich development support. Provide Arduino libraries and rich sample programs to help users get started quickly and easily find development resources suitable for them.
No matter you are a beginner or an experienced developer, this Arduino display will be a great helper in your project, helping you realize more creativity and functions.
Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com
Model DLA35028B
Specification¶
| Screen Size | 2.8(inch) |
|---|---|
| Display Color | RGB 65K color |
| Screen Type | TFT |
| Resolution | 320x240(pixels) |
| Touch Screen Type | Resistive touch screen |
| Driver IC | ILI9341 |
| Module Interface | 8-bit parallel interface |
| Operating Voltage | 5V/3.3V |
| IO Voltage | 3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Active Area | 43.2*57.6(mm) |
| Module PCB Size | 52.70*78.22(mm) |

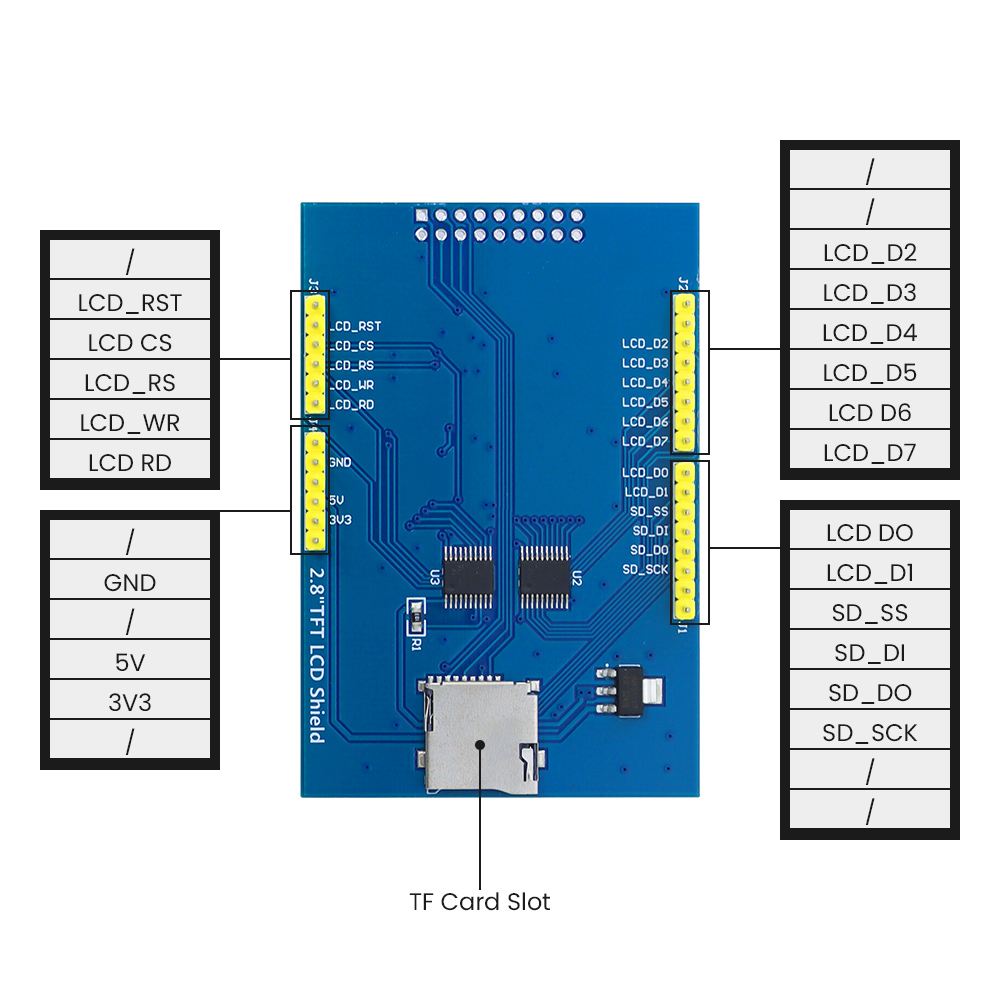

Interface Definition¶
| Number | Pin Label | Pin Description |
|---|---|---|
| 1 | LCD_RST | LCD bus reset signal, low level reset |
| 2 | LCD_CS | LCD bus chip select signal, low level enable |
| 3 | LCD_RS | LCD bus command / data selection signal,low level: command, high level: data |
| 4 | LCD_WR | LCD bus write signal |
| 5 | LCD_RD | LCD bus read signal |
| 6 | GND | Power ground |
| 7 | 5V | 5V power input |
| 8 | 3V3 | 3.3V power input, this pin can be disconnected |
| 9 | LCD_D0 | LCD 8-bit data Bit0 |
| 10 | LCD_D1 | LCD 8-bit data Bit1 |
| 11 | LCD_D2 | LCD 8-bit data Bit2 |
| 12 | LCD_D3 | LCD 8-bit data Bit3 |
| 13 | LCD_D4 | LCD 8-bit data Bit4 |
| 14 | LCD_D5 | LCD 8-bit data Bit5 |
| 15 | LCD_D6 | LCD 8-bit data Bit6 |
| 16 | LCD_D7 | LCD 8-bit data Bit7 |
| 17 | SD_SS | SD card SPI bus chip select signal, low level enable |
| 18 | SD_DI | SD card SPI bus MOSI signal |
| 19 | SD_DO | SD card SPI bus MISO signal |
| 20 | SD_SCK | SD card SPI bus clock signal |
Resources¶
How to buy¶
Please visit this page to purchase 2.8inch TFT Screen 320*240 Touch Display for Arduino.
Support¶
If you have any problem about how to use it, you can connect to us at the bottom-right of bazzer or contact to techsupport@elecrow.com to get technology support.
