3.5 Inch TFT Color Screen Module 320 X 480 Support Arduino UNO Mega2560

Description


This is a 3.5-inch 320 * 480 resolution TFT color screen. It supports working boards such as Arduino uno and Arduino mega2560 and Arduino due. Also supports STM32, 51 and other conventional microcontrollers.
When using this screen, you do not need any wiring operations, just plug onto your arduino board, we will provide the corresponding Arduino library files, the development code is open source, you can use arduino and this screen to build some applications.The backlight always on, can not control the backlight, backlight is connect to 3.3V.
Model: ARS36125D

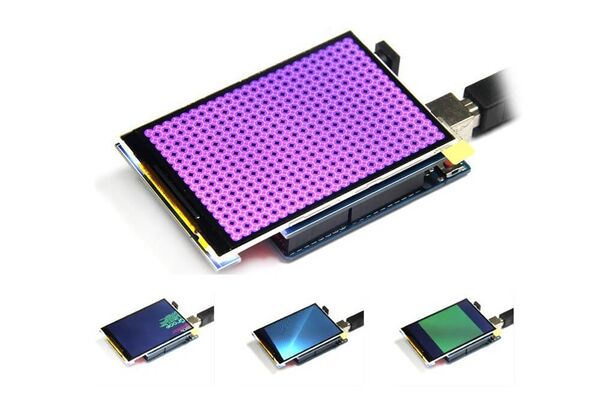

3.5 inch tft color screen module 320 x 480 support arduino uno mega2560 1.jpg

Alt text

Features


  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 480X320 resolution, clear display, support for touch function
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Specification


Item Value
Display Color RGB 65K color
Screen Size 3.5(inch)
Type TFT
Driver IC ILI9341
Resolution 480*320(Pixel)
Module Interface 8-bit parallel interface
Active Area 73.44*48.96(mm)
Module PCB Size 85.49*55.63(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Operating Voltage 5V/3.3V
Power Consumption TBD
Product Weight(Package containing) 44g

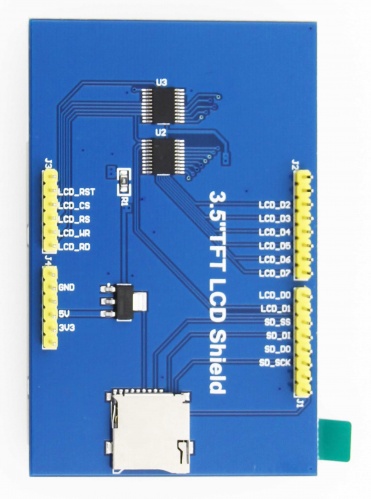

Pin Layout



No. Pin Label Pin Description
1 LCD_RST LCD bus reset signal, low level reset
2 LCD_CS LCD bus chip select signal, low level enable
3 LCD_RS LCD bus command / data selection signal, low level:command, high level:data
4 LCD_WR LCD bus write signal
5 LCD_RD LCD bus read signal
6 GND Power ground
7 5V 5V power input
8 3V3 3.3V power input, this pin can be disconnected
9 LCD_D0 LCD 8-bit data Bit0
10 LCD_D1 LCD 8-bit data Bit1
11 LCD_D2 LCD 8-bit data Bit2
12 LCD_D3 LCD8-bit data Bit3
13 LCD_D4 LCD 8-bit data Bit4
14 LCD_D5 LCD 8-bit data Bit5
15 LCD_D6 LCD 8-bit data Bit6
16 LCD_D7 LCD 8-bit data Bit7
17 SD_SS SD card SPI bus chip select signal, low level enable
18 SD_DI SD card SPI bus MOSI signal
19 SD_DO SD card SPI bus MISO signal
20 SD_SCK SD card SPI bus clock signal

Platforms Supported


Arduino

Usage


Hardware

STEP1 Prepare the below stuffs:

Crowduino Uno 3.5 Inch TFT Color Screen Module
Crowduino 2.jpg 3.5 inch tft color screen module 320 x 480 support arduino uno mega2560 1.jpg
Get one now Get one now

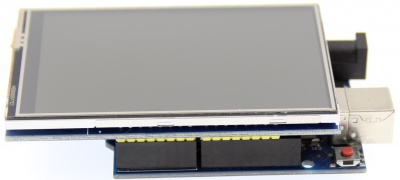

STEP2 Plug 2.4 inch TFT Touch Shield into Crowduino Uno;
400px MAR3501-002.jpg

STEP3 Connect Crowduino Uno to PC via a Mini USB cable.

Software

STEP 1 Download filesArduino_Demo_code_ArduinoUNO&26Mega2560.zip

STEP 2 Configure controller board&communication port
On top of the Arduino IDE, click “Tools>Board>” and select “Arduino Uno”from the available options
SELECT BOARD.png
Select the COM port that indicates Arduino Uno. Please note that the actual numbers after the “COM” word will vary from computer to computer, so they could be different from the ones shown in the figure.
S 2 2.png

STEP 3 Install Library: Unzip the Arduino Demo code_ArduinoUNO&Mega2560.zip file. Copy the dependent libraries in the Install libraries directory in the package (shown below) to the Libraries directory under the Arduino installation directory

STEP 4 Open the sample program in the Example directory of the package to test

STEP 5 Click the Upload.png to upload the code to the Crowduino board

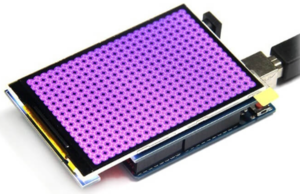

STEP6 After the program is downloaded, run it directly and observe the running status. If it can be displayed normally, the program runs successfully
3.5inch tft color screen.png

FAQS


You can list you question here or contact with techsupport@elecrow.com for technology support.

Resources


Arduino_Demo_code_ArduinoUNO&26Mega2560.zip
ILI9341_Datasheet.pdf
