Crowtail- Tilt Switch

Description¶

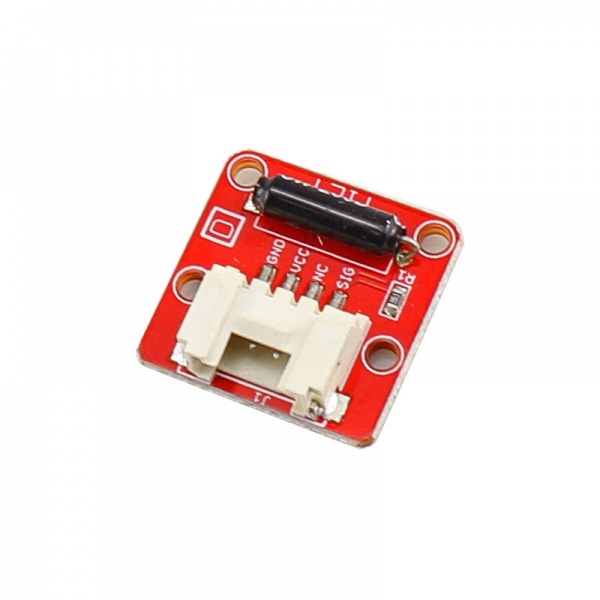

The Crowtail- Tilt Switch is the equivalent of a button, and is used as a digital input. Inside the tilt switch is a pair of balls that make contact with the pins when the case is upright. Tilt the case over and the balls don't touch, thus not making a connection.

Model: CT0023TS

Festure¶

• Crowtail Interface
• Easy to use

Specification¶

Dimensions(mm):20.0(L)x20.0(W)x6.8(H)

Usage¶

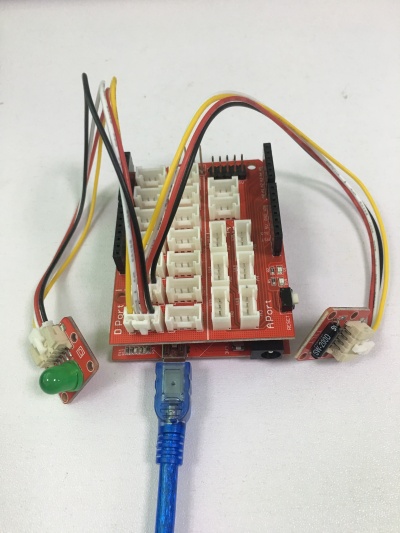

1.Hardware connection

2.Copy and paste code below to a new Arduino sketch.

void setup()
{
   pinMode(4, INPUT); //connect to Crowtail- Tilt Switch
   pinMode(5, OUTPUT);//connect to Crowtail- LED
}

void loop()
{
 if (digitalRead(4)==HIGH)
 {
   digitalWrite(1, HIGH);
   delay(100);
   digitalWrite(5, HIGH);
 }
 else
{
   digitalWrite(5, LOW);
 }
}

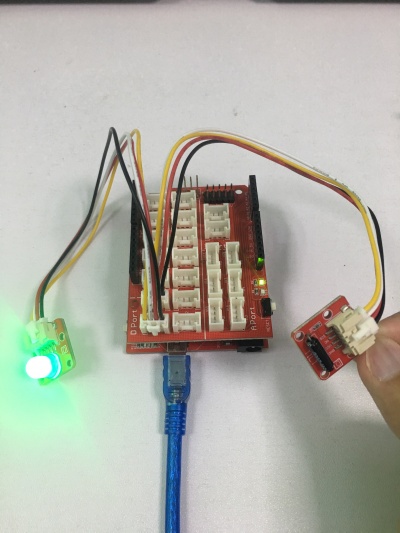

3.Test result:

Resource¶

• Tilt Switch Program
• Crowtail-Tilt_Switch _eagle_files
