Easy Module Shield for Arduino UNO

Description

The board is designed for beginners in Arduino, with various components available that makes you build more than 10 projects easily. You won’t have to solder or connect anything at all, just plug it in a shield and start coming up with various simple examples rather than dealing with cables, sensors and breadboard. Next to each component you can see the digital on analog pin it is connected to. Also there are couple of digital pins and one analog pin available for other projects. This shield can be fully compatible with the Arduino UNO R3 and it will never short circuit with the Arduino UNO USB interface, so it is very safe.
Module: ARS03218S
Multifunctional expansion board for arduino uno 2.jpg

Alt text

Features

  • Fully compatible with Arduino UNO R3 interfaces
  • Providing Arduino beginners basic experimental module
  • A board integrates various modules function
  • Without welding and connection, you can download the program directly to complete the experiment
  • Provide all the module code library files, all tested and can be used directly
  • Set aside expansion port, you can complete other modules experiment

Function

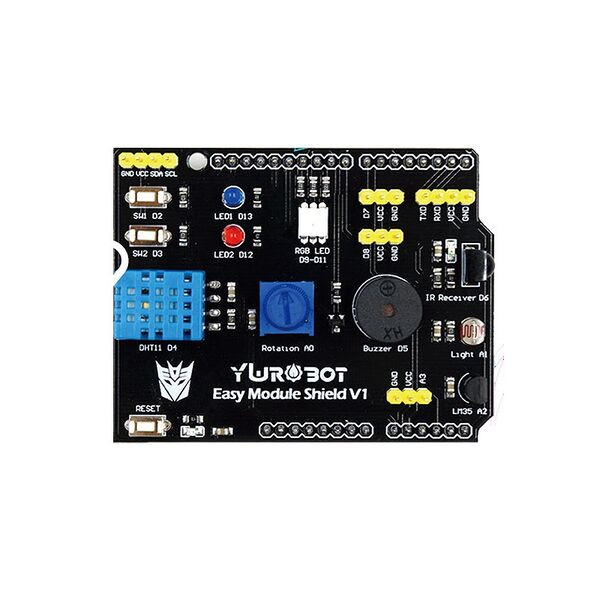

Easy module shield.jpg

1 I2C Interface (A4 SDA, A5 SCL)
Connect with I2C communication modules, e.g. display
2 Button Module(D2, D3)
Turn on/off LED, Buzzer .etc
3 DHT11 Temperature&Humidity Sensor Module(D4)
Measure Temperature&Humidity indoor. Temp Range: 0-50°C, HUM Range: 20%-90%RH
4 Rotary Potentiometer Module(A0)
Can control led brightness. Rotation Angle: 270°, Output Voltage: 0-3.⅗V, Resistance: 10K
5 Reset button 6 3mm LED module(D13, D12)
7 RGB LED Module(D9-11)
8 Digital Ports (D7, D8)
Connect with digital signal modules, e.g. leds, buttons.
9 UART Port
Connect with UART communication modules, e.g. WiFi, Bluethooth
10 IR Receiver Module(D6)
Remote control. Control range 1-8m, frequency 38kHZ. Compatible with most of the infrared remote controllor
11 Brightness Sensor Module(A1)
12 LM35D Temperature Sensor Module(A2)
Measure Temperature outdoor. Temp Range: -50-+150°C, High sensitivity
13 Passive Buzzer Module(D5)
Can emit simple tones, music needs to be programmed
14 Analog Port (A3)
Connect with analog signal modules, e.g. sensors
