CrowPanel 1.28inch-HMI ESP32 Rotary Display 240*240 IPS Round Touch Knob Screen¶

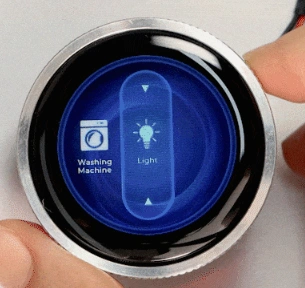

What is a rotary screen?

The rotary screen is an intelligent interactive device that usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information.

ESP32 Display - 1.28 inch rotary screen, uses high-performance ESP32-S3 chip, equipped with 32-bit dual-core chip. The maximum clock frequency reaches 240MHz, with strong performance and the ability to handle complex tasks.

Supports 2.4G WiFi and BLE low-power Bluetooth, to achieve reliable wireless communication, easily connect to the Internet, suitable for smart home, industrial control, portable devices and other scenarios.

Supports capacitive touch operation and knob input. The knob supports clockwise, counterclockwise rotation and full press operation, smooth feel, and various interaction methods.

The 5V charging interface supports power supply and program burning, and is also equipped with three expansion interfaces of UART, I2C, and FPC to meet development needs.

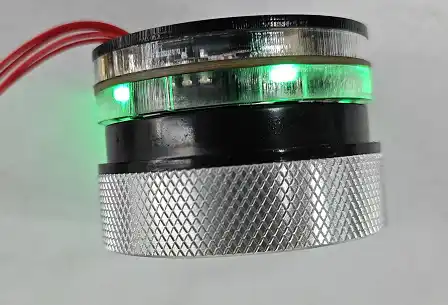

The atmosphere light design adds a cool feeling, and the low power design makes it suitable for smart home appliances and portable devices.

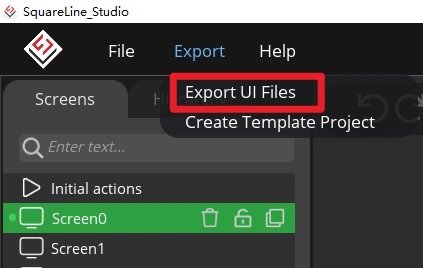

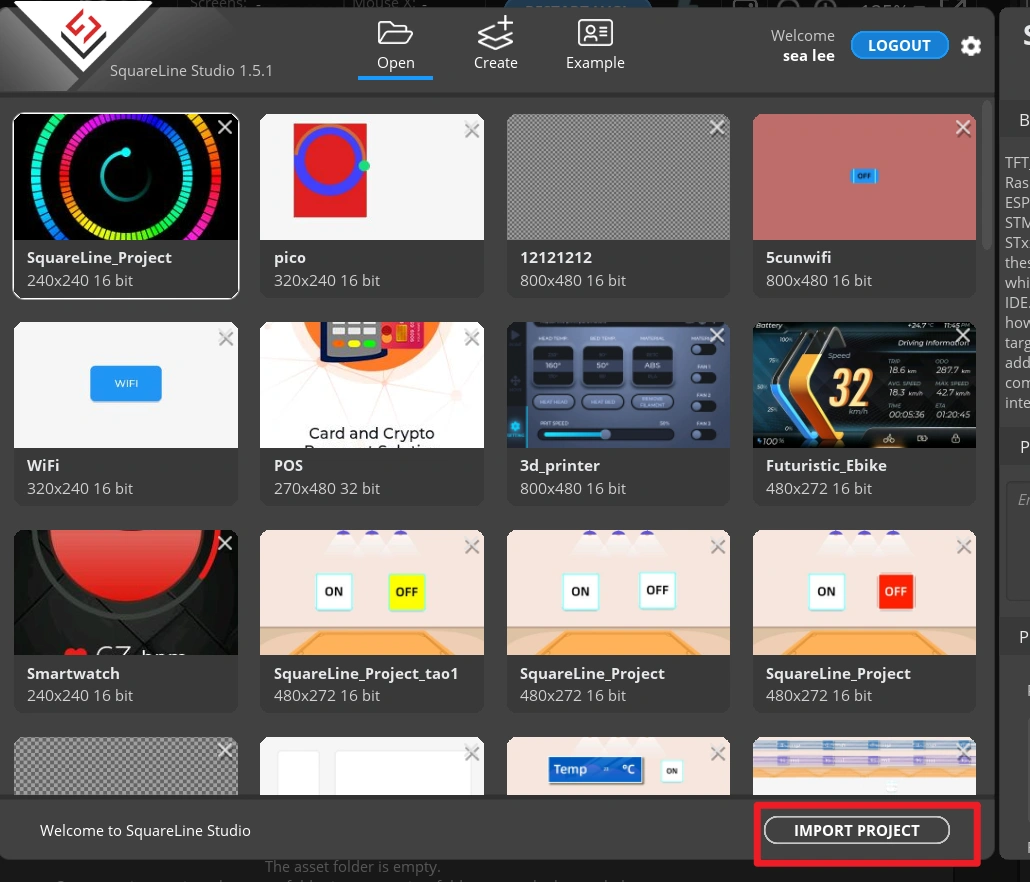

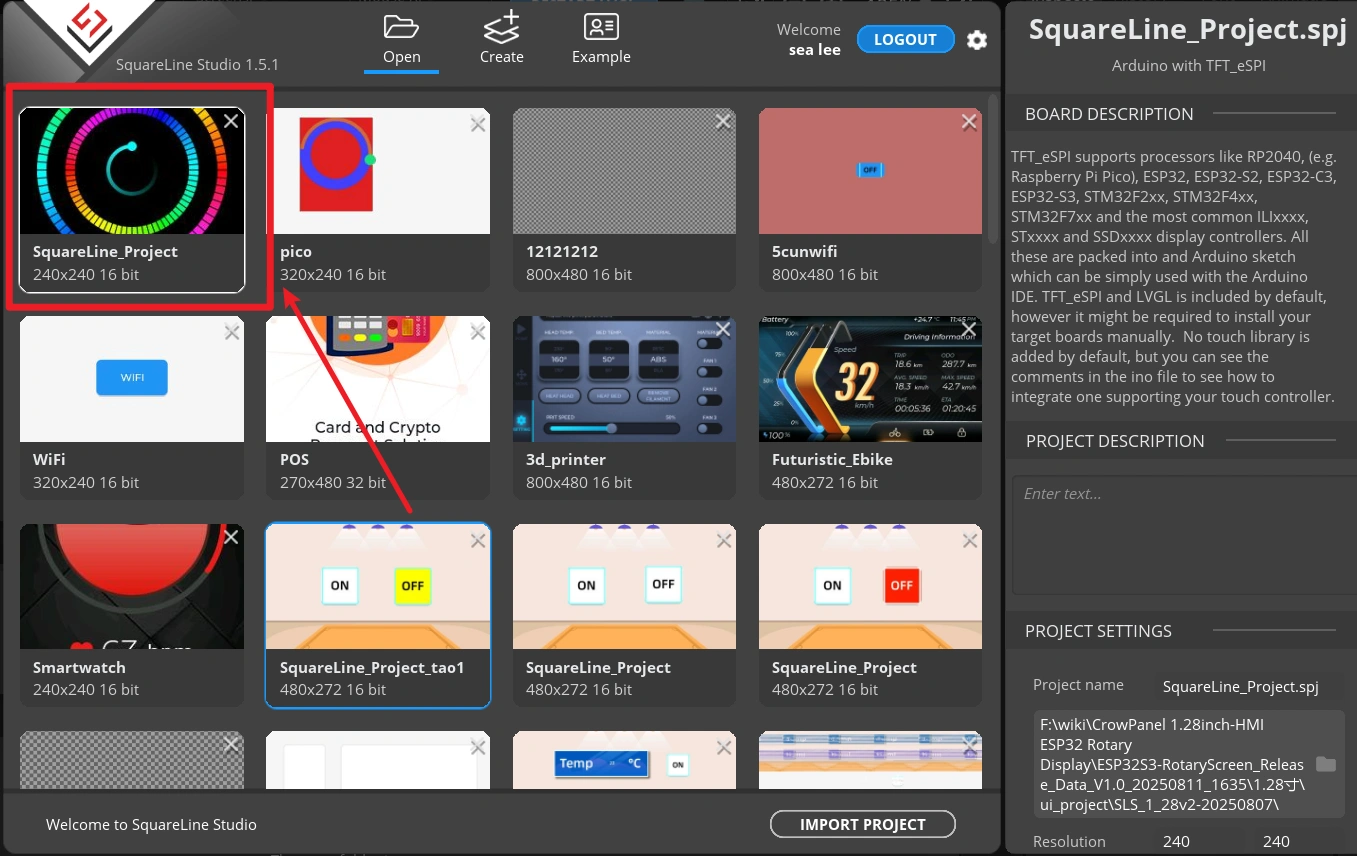

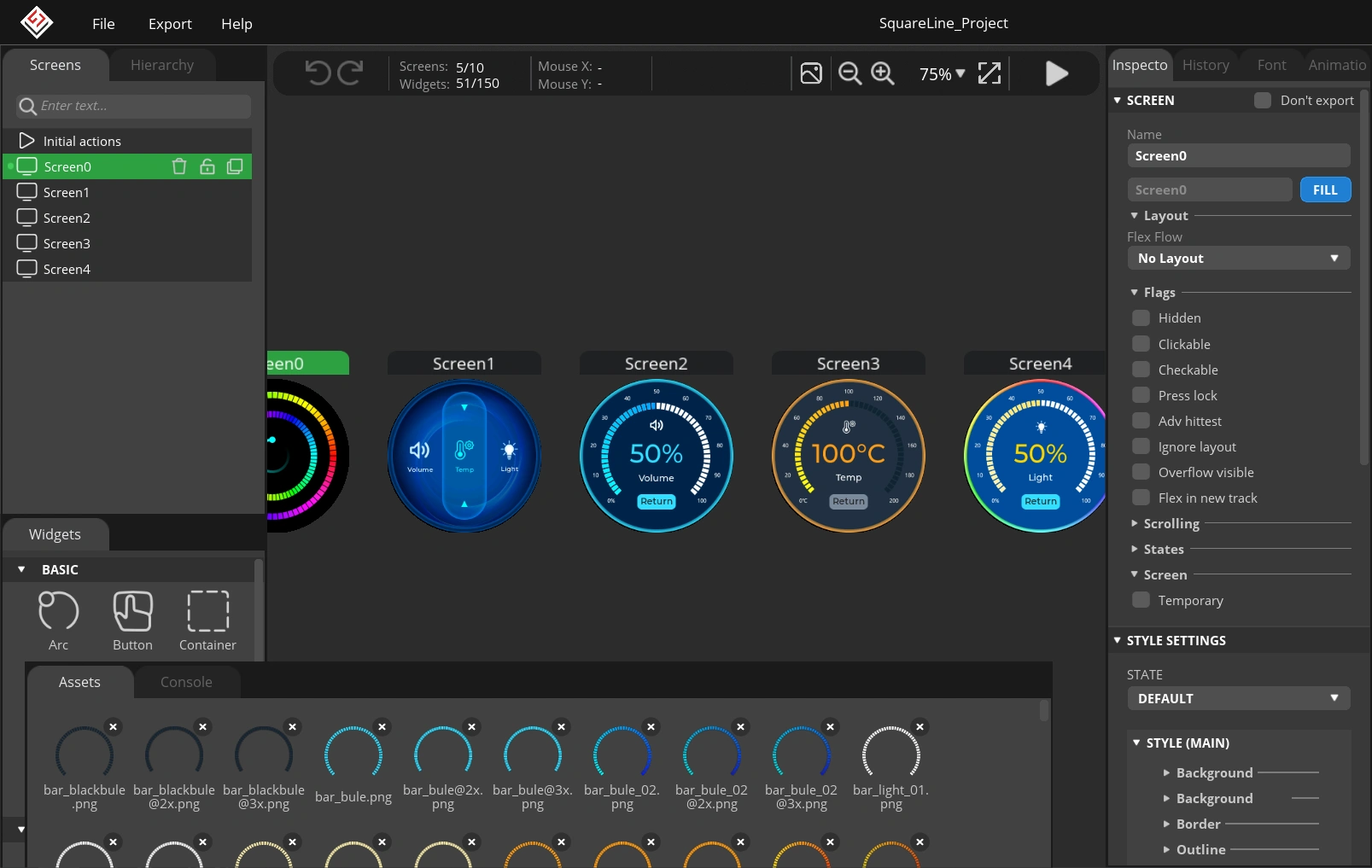

It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro python, and supports LVGL library; you can design the UI interface yourself, it is an ideal platform for DIY projects.

ESP32 Display - 1.28inch rotary screen is not just an interactive module, but an intelligent interaction solution that combines high performance, multi-function, and ease of use. Whether you are an IoT developer, smart home enthusiast, or professional, you can find an efficient tool that meets your needs.

Self-developed by Elecrow with exclusive design.

Specification¶

Main Chip: ESP32-S3R8
Processor	Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
System memory	512KB SRAM、8M PSRAM
Storage	16M Flash
Screen
Size	1.28 inch
Screen Type	IPS
Touch Type	Capacitive Touch
Resolution	240*240
Wireless Communication
Bluetooth	Bluetooth Low Energy and Bluetooth 5.0
WiFi	Support 802.11a/b/g/n，2.4GH

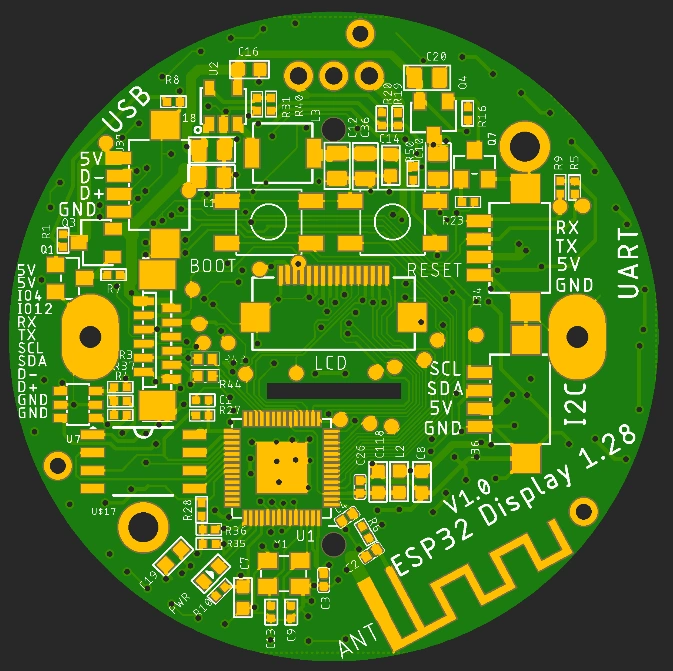

Hardware
UART Interface	2x UART, 4P 1.25mm
I2C interface	4P 1.25mm

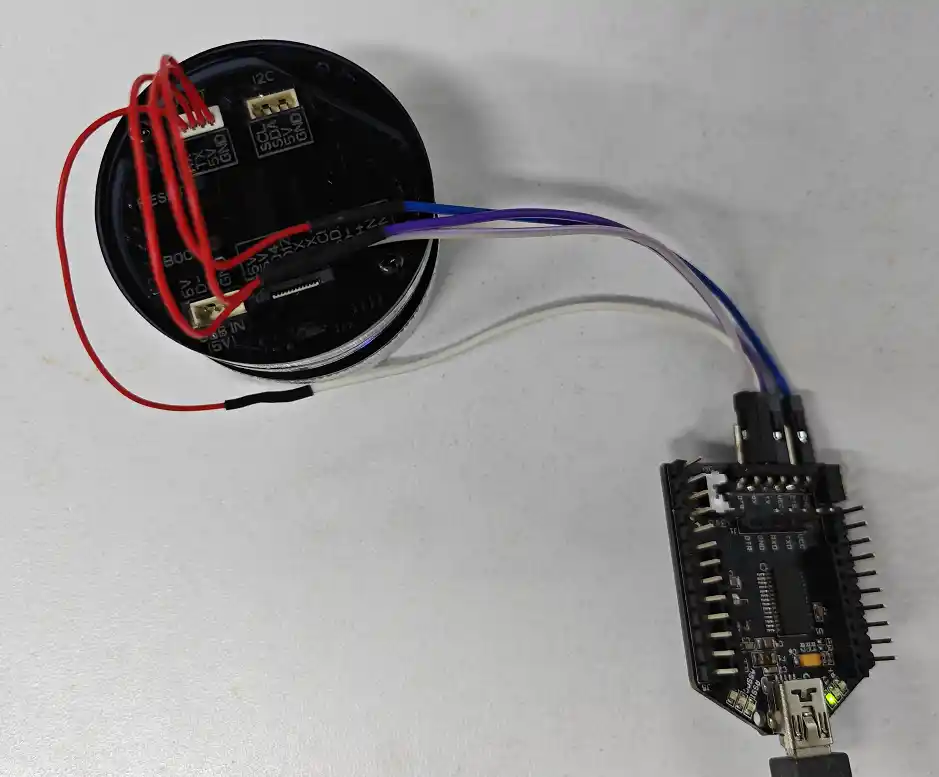

FPC connector	12P, Power supply burning port
Button	RESET button, BOOT button, confirmation button (knob press switch)
LED Light	Power indicator, LED ambient light
Other
Power Input	5V/1A
Operating temperature	-20~65℃
Storage temperature	-40~80℃
Operation Power	Module：DC5V Main Chip：3.3V
Size	48/48/33mm
Shell	Aluminum alloy + plastic + acrylic
Net Weight	50g

Schematic Diagram：¶

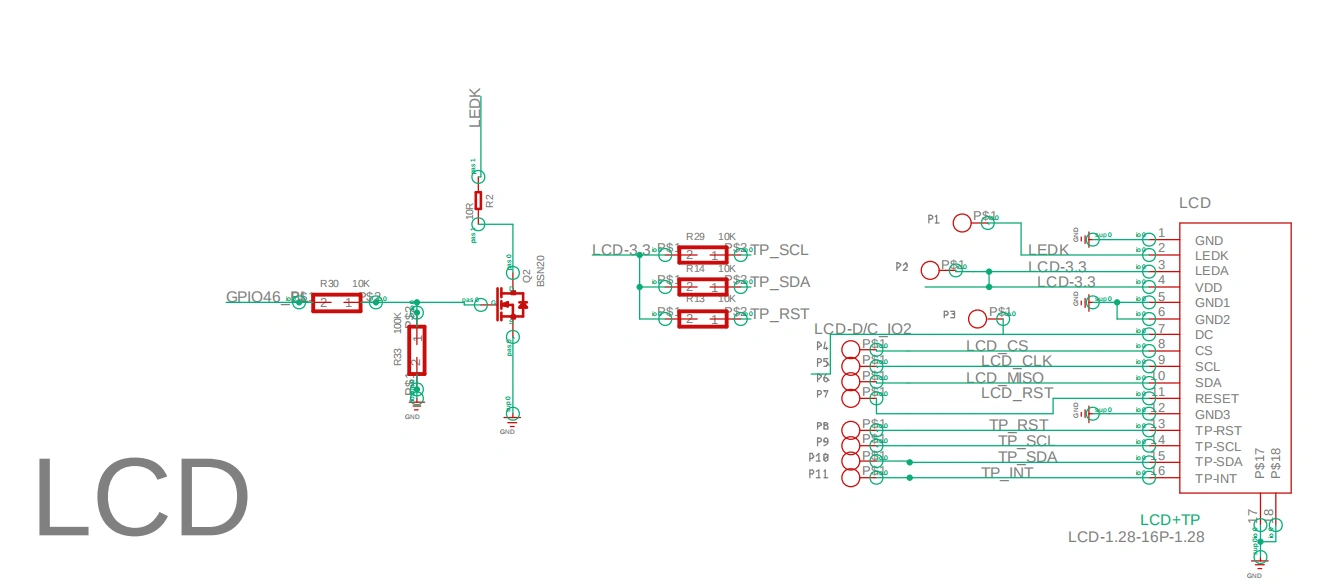

ESP32-S3 with display and touch schematic diagram

Schematic Diagram:

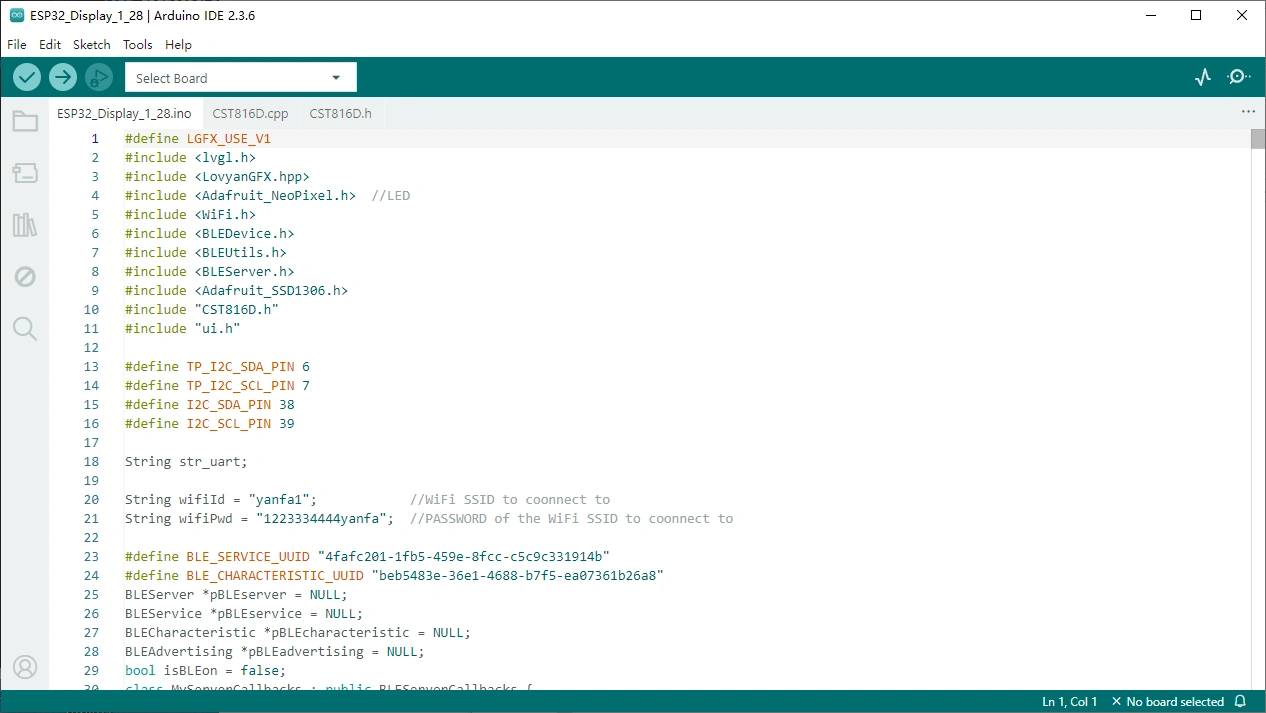

Definition in the main program:¶

class LGFX : public lgfx::LGFX_Device {
  lgfx::Panel_GC9A01 _panel_instance;
  lgfx::Bus_SPI _bus_instance;
public:
  LGFX(void) {
    {
      auto cfg = _bus_instance.config();
      cfg.spi_host = SPI2_HOST;
      cfg.spi_mode = 0;
      cfg.freq_write = 80000000;
      cfg.freq_read = 20000000;
      cfg.spi_3wire = true;
      cfg.use_lock = true;
      cfg.dma_channel = SPI_DMA_CH_AUTO;
      cfg.pin_sclk = 10;
      cfg.pin_mosi = 11;
      cfg.pin_miso = -1;
      cfg.pin_dc = 3;
      _bus_instance.config(cfg);
      _panel_instance.setBus(&_bus_instance);
    }
    {
      auto cfg = _panel_instance.config();
      cfg.pin_cs = 9;
      cfg.pin_rst = 14;
      cfg.pin_busy = -1;
      cfg.memory_width = 240;
      cfg.memory_height = 240;
      cfg.panel_width = 240;
      cfg.panel_height = 240;
      cfg.offset_x = 0;
      cfg.offset_y = 0;
      cfg.offset_rotation = 0;
      cfg.dummy_read_pixel = 8;
      cfg.dummy_read_bits = 1;
      cfg.readable = false;
      cfg.invert = true;
      cfg.rgb_order = false;
      cfg.dlen_16bit = false;
      cfg.bus_shared = false;
      _panel_instance.config(cfg);
    }
    setPanel(&_panel_instance);
  }
};
LGFX gfx;
CST816D touch(TP_I2C_SDA_PIN, TP_I2C_SCL_PIN, TP_RST, TP_INT);

- Display (GC9A01 SPI): SCLK=10, MOSI=11, MISO=-1, DC=3, CS=9, RST=14

- Screen backlight: SCREEN_BACKLIGHT_PIN=46

- Touchscreen (CST816D I2C): SDA=6, SCL=7, INT=5, RST=13

- OLED (SSD1306 I2C): SDA=38, SCL=39

- RGB LED (WS2812): LED_PIN=48, LED_NUM=5

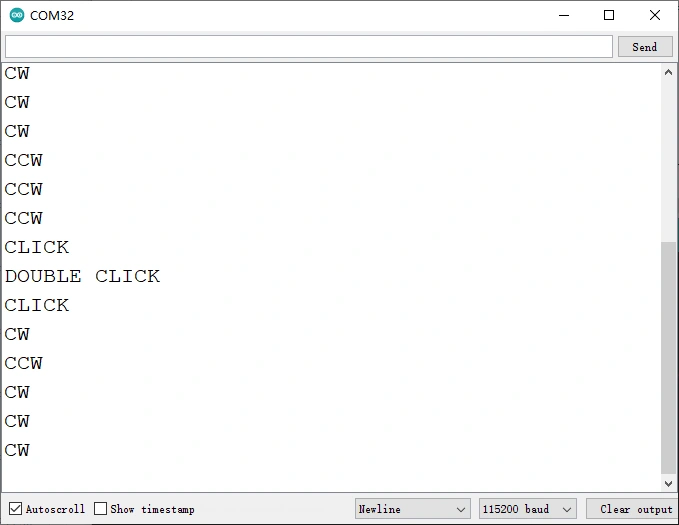

- Rotary encoder: A (ENCODER_A_PIN) = 45, B (ENCODER_B_PIN) = 42, SW (SWITCH_PIN) = 41

- Power indicator: POWER_LIGHT_PIN = 40

- Test I/O: 4, 12

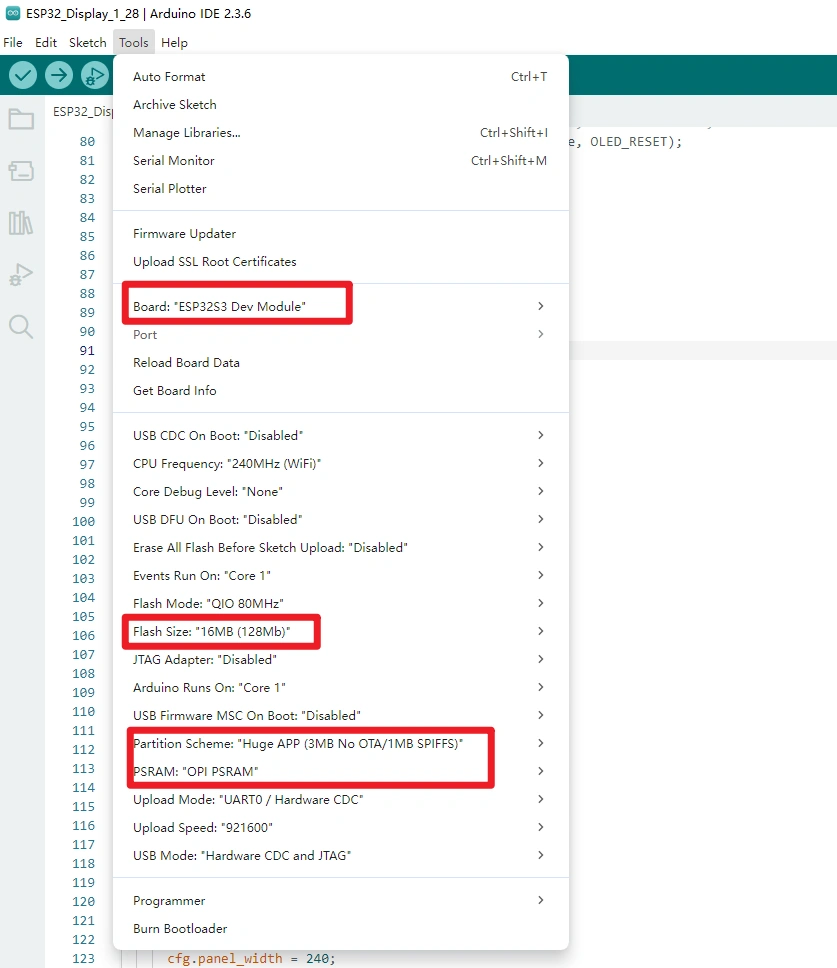

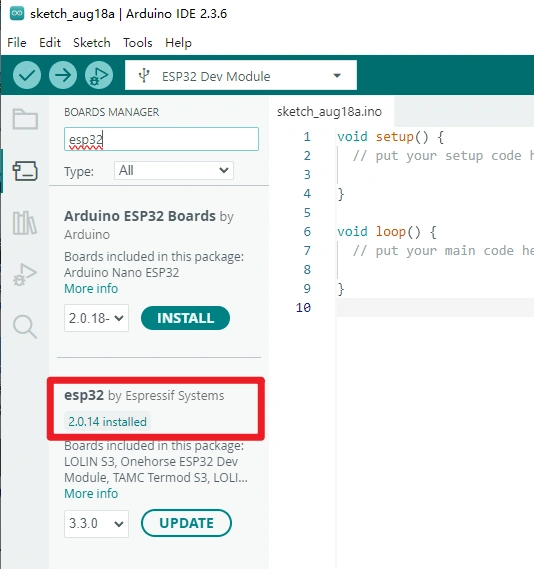

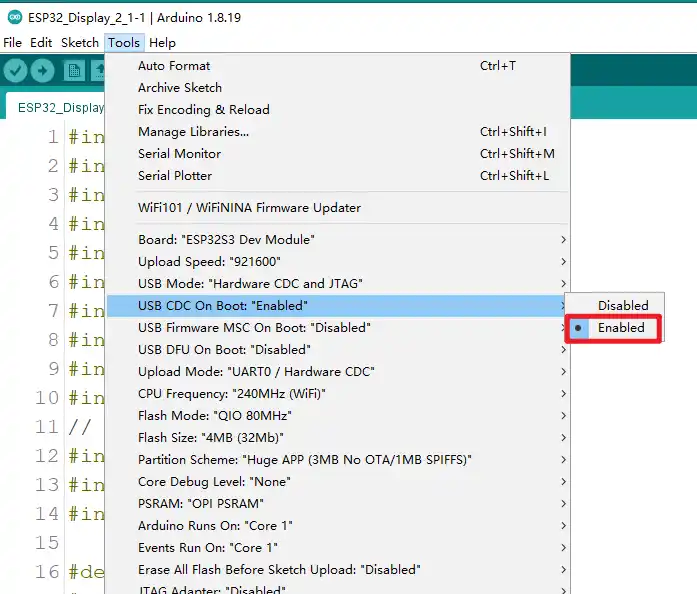

Platforms Supported¶

Arduino IDE	ESPHome

	[

Resource：¶

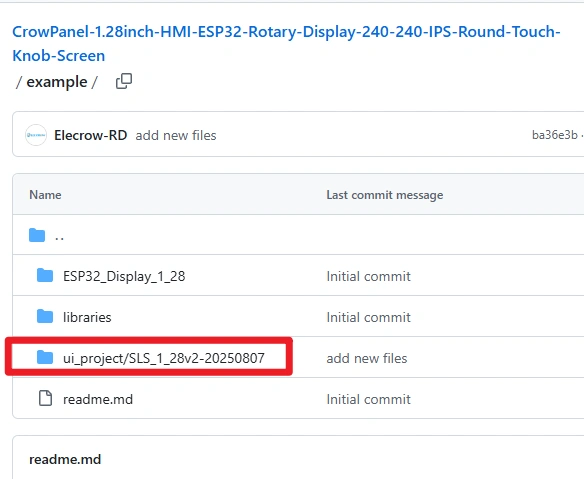

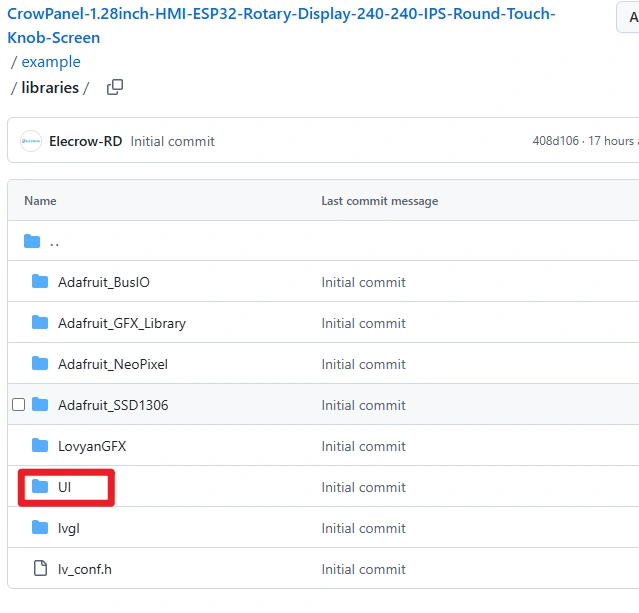

github：¶

CrowPanel-1.28inch-HMI-ESP32-Rotary-Display-240-240-IPS-Round-Touch-Knob-Screen
