CrowPanel ESP32 E-Paper HMI 1.54-inch Display

Description


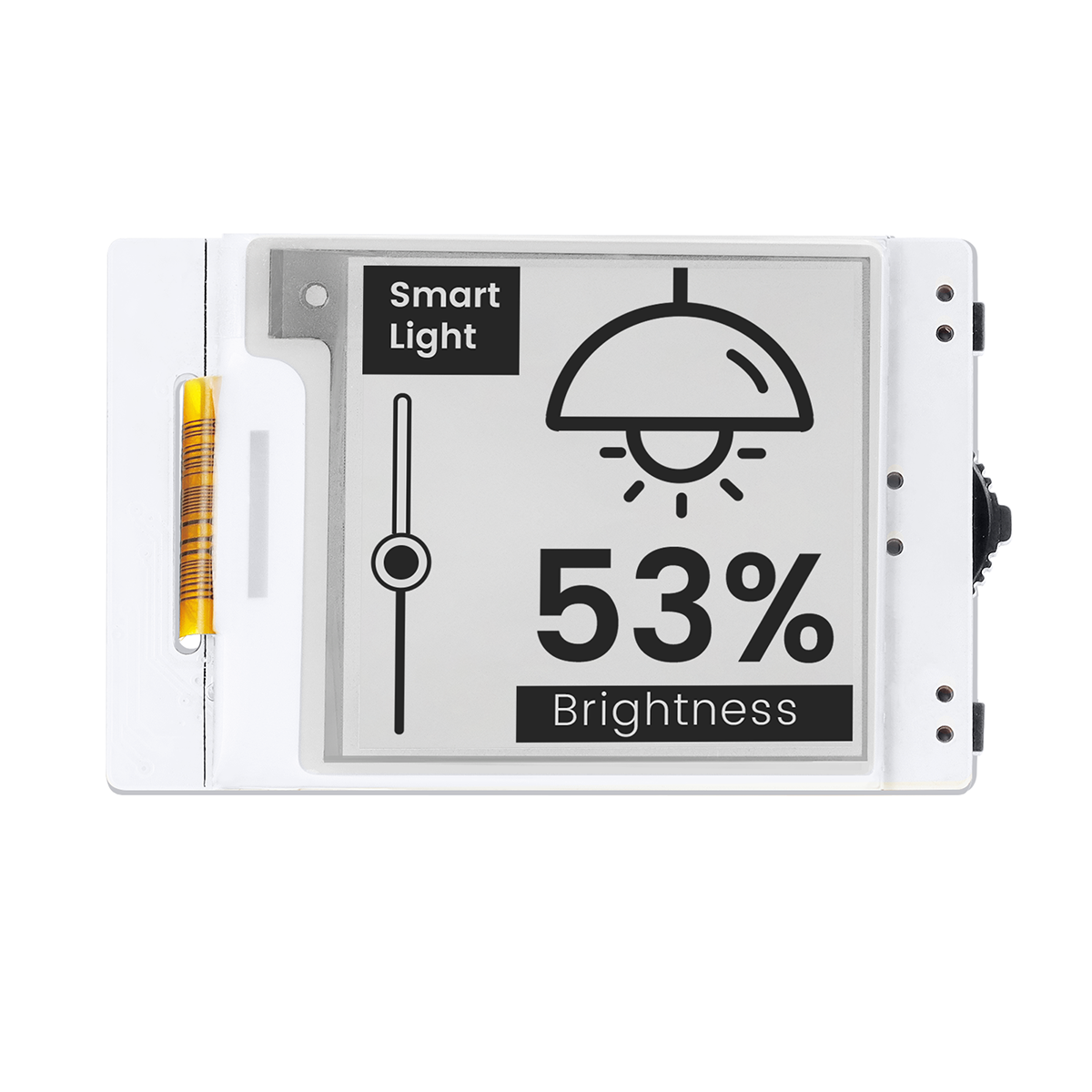

This CrowPanel ESP32 1.54” electronic paper (E-Paper)HMI display uses advanced display technology. It is equipped with an active matrix electrophoretic display and a hard-coated anti-glare display surface to keep the content visible even in sunlight, perfectly mimicking the appearance and reading experience of traditional paper.

It has a high resolution of 152*152, providing a vivid display effect, and uses a classic black and white display, suitable for various application scenarios. The built-in ESP32-S3 chip is used as the main control, ensuring robust performance and providing fast, stable data transmission through the SPI interface. The design includes multiple interfaces and buttons, such as the BAT interface, UART0 interface, 2x10 pin GPIO interface, back button, home button, and rotary switch, facilitating user development and operation. The white acrylic shell is not only beautiful but also protects the screen.

Based on the ESP32 chip, another standout features is its broad compatibility. It is compatible with three development environments: Arduino IDE, ESP IDF, and MicroPython, simplifying the secondary development process. Also, its ultra-wide viewing angle design allows you to enjoy the same brilliant image from any angle. The ultra-low power consumption feature consumes only a small amount of power when refreshing, ensuring long-lasting battery life. Pure reflection mode means no backlight is required, and information remains clearly visible after power failure, without worrying about information loss.

This E-Paper screen is widely used in shelf labels, price tags, badges, smart labels, smart home devices, e-readers, smart wearable devices and other portable devices. It is an ideal choice for various smart devices and applications.

Model: DIE09154S

1.54_inch_hmi_e-paper_display

Feature


  • 1.54-inch E-Paper display, 152*152 resolution, black and white, using SPI interface communication;
  • ESP32-S3 as the main chip, frequency up to 240MHz;
  • Support full viewing angle, clearly visible from any angle;
  • High contrast and high reflectivity, can provide better visual performance;
  • Pure reflection mode, no backlight required, completely relying on light reflection to display content, and the displayed content will not be lost even if the power is off;
  • Hard-coated anti-glare display surface, it can keep the content clearly visible even under direct sunlight;
  • Support Arduino IDE, ESP IDF, and MicroPython development environment to get a smooth development experience;
  • Ultra-low power consumption and partial refresh function, significantly saving energy;
  • Rich buttons and interfaces (such as GPIO interface, UART interface, home button, etc.) for easy development and operation.

Application


  • Electronic label: supermarket or shelf product information and price;
  • E-book reader;
  • Electronic business card: display the corresponding participant information;
  • Smart home and other applications

Specification


Size 1.54 inch
MCU ESP32-S3, up to 240 MHz
Flash 8 MB
PSRAM 8 MB
Material Active Matrix Electroph oretic Display (AM EPD)
Driver Chip SSD1680
Resolution 128(H)*296(V) Pixel
Pixel pitch 0.227*0.226
Viewing Angle Full Viewing Angle
Communication interface 3-/4-wire SPI
Interface UART0x1, BATx1
Button Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1
Development Environment Arduino IDE、ESP IDF、MicroPython
Display Color Black and white
Refresh Mode Partial refresh (saves more power)
Display Operation Voltage 2.2~3.7V
Acrylic Case White Acrylic Case
Operation Temperature -0~50℃
Storage Temperature -25~70℃
Active Area 37.18(H)*48.32(L)(H*L)

Interfaces

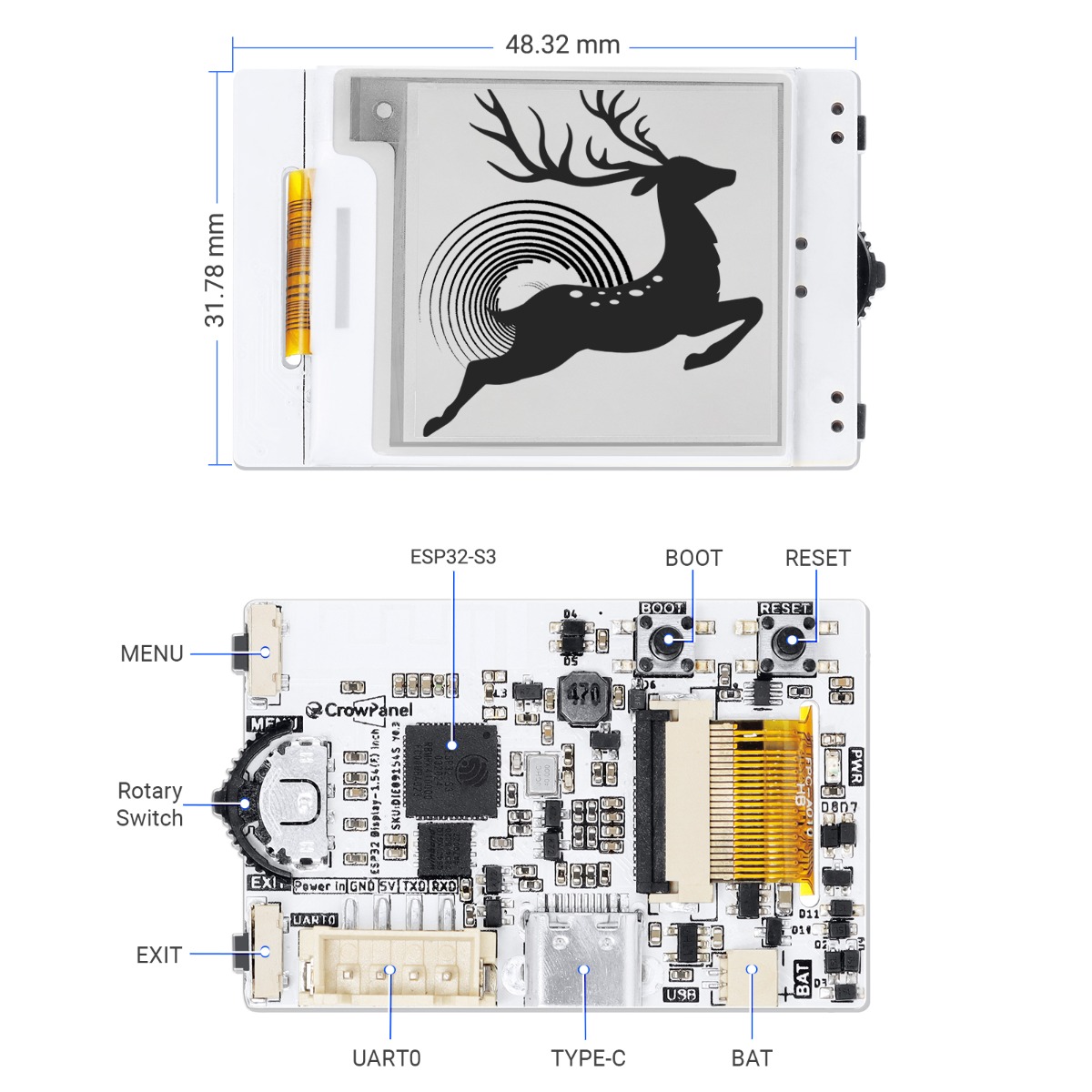

dimension_size_of_1.54_inch_HMI_E-Paper_display

Interface Name Description Module Type
MENU Button Used for custom programming.
Rotary Switch Used for custom programming.
EXIT Button Used for custom programming.
RESET Reset button. Push it to reset the system.
BOOT The Boot button is mainly used to control the startup and download mode of the development board.
UART0 4PIN uart0 serial port.
BAT Connect with the lithium battery. (With the battery charging circuit) SH1.0-2Pin socket
Type-C Provide serial communication, supply voltage and serial information printing.
1.54-inch Display Port Pin Number
MENU Button IO2
Rotary Switch Down(IO4); Up(IO6); CONF(IO5)
EXIT Button IO6
