Crowtail- Dual Channel Latching Module

Description


This is a dual-channel latching relay, it does not need continuous power to keep the state, only a rising/falling pulse is needed to change the work state. so the power supply can be cut off without changing the operating state. This module is specifically designed for low power consumption circuit design.

Model: CRT01665R

Crowtail-Dual Channel Latching Module.jpg

Features


  • Dual Switch
  • Low power consumption
  • High sensitivity 150mW
  • High switching capacity 60W,125VA
  • Epoxy sealed for automatic wave soldering and cleaning

Specification


Dimensions(mm):50.0(L)x35.0(W)x14.3(H)

Parameter Description
Operating Voltage 5V
Set/Reset Voltage(Max) 4.0VDC
Switching Voltage(Max) 35VAC/35VDC
Switching Current(Max) 3A
Max Switching Current 3A
Set Time(Latching) 4.5(max)ms
Reset Time(Latching) 3.5(max)ms

Usage


1.Connect the segment according to the following figure. The com pin is connected to the pin5, NC connected to the GND, NO and connected to the VCC.

DUAL CONNECT1.jpg

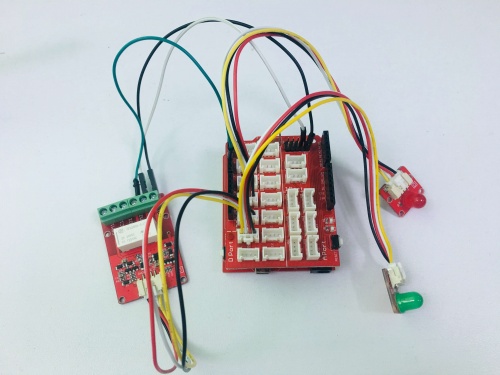

2.Relay is connected to the D3, D2 and D4 is connected to the LED.

DUAL CONNECT21.jpg

3.Connect to USB, copy the program and upload it to the board

DUAL UPLOAD2.jpg

int relay=3;
int led1=4;
int led2=2;
int relayin1=5;
void setup()
{
  pinMode(relay,OUTPUT);
  pinMode(led1,OUTPUT);
  pinMode(led2,OUTPUT);
  pinMode(relayin1,INPUT);
  // put your setup code here, to run once:

}

void loop()
{
  /* first lift */
   digitalWrite(relay,HIGH);


   /* simply relay  and wait relay response */
   delay(200);
   if(digitalRead(relayin1)==HIGH)
   {
     digitalWrite(led1,HIGH);
     digitalWrite(led2,LOW);
   }
   else
   {
     digitalWrite(led1,LOW);
     digitalWrite(led2,HIGH);
   }
   delay(5000);

   /* second lift */
   digitalWrite(relay,LOW);

   /* simply relay  and wait relay response */
   delay(200);
   if(digitalRead(relayin1)==HIGH)
   {
     digitalWrite(led1,HIGH);
     digitalWrite(led2,LOW);
   }
   else
   {
     digitalWrite(led1,LOW);
     digitalWrite(led2,HIGH);
   }
   delay(5000);
  // put your main code here, to run repeatedly:

}

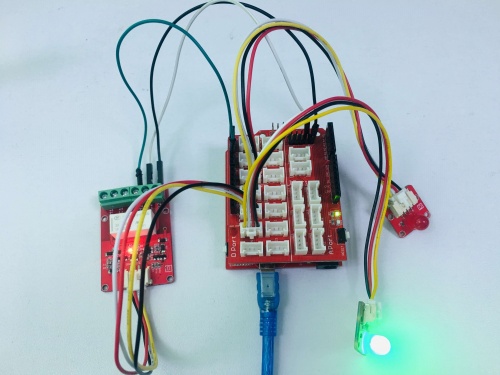

4.You can use external power supply or USB power supply.

DUAL GREED2.jpg

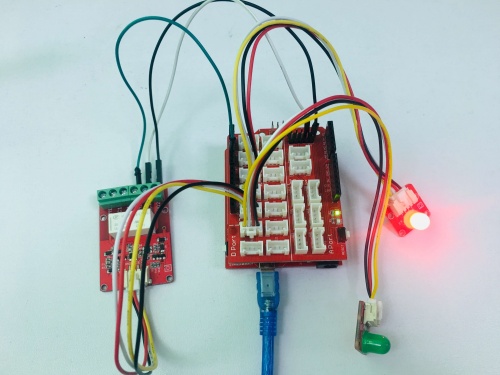

5. Observe RELAY module NO lights flashing, and green light, proved NO work! Green light; RELAY module on the NC module, NC lights flashing, and red, proved NC end work.

DUAL RED1.jpg
