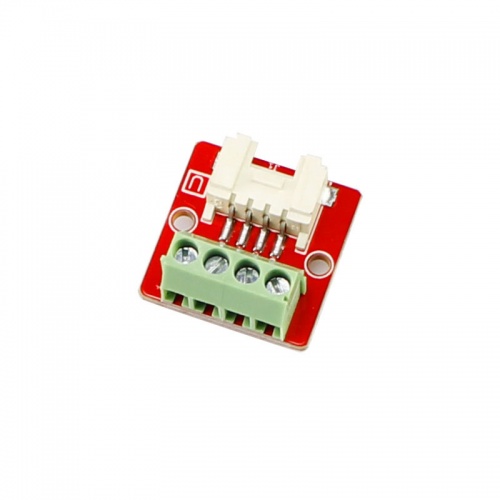

Crowtail- Screw Terminal
Description¶
Crowtail-Screw Terminal has four 3.5mm pitch pins rate up to 125V @ 10A, it can accept 16 to 26AWG wire and be used to connect to external devices.This Crowtail has four ports including GND, VCC and two other ports. It usually be used to interface Crowtail wires(signals) with other external non-Crowtail modules.
Model: CRT00532T
Features¶
- 3.5mm standard pitch pin
- 3.3V/5V Compatible
- High current/voltage adaptable
Specification¶
Dimensions(mm):20.0(L)x20.0(W)x12.5(H)
| Item | Description |
|---|---|
| Working Voltage | 5 V/3.3V |
| Supply Mode | Crowtail Interface |
