10.1-inch_HD_Touchscreen_1520×720_IPS_Screen_Designed_for_Raspberry_Pi_5_point_Capacitive_Touch¶

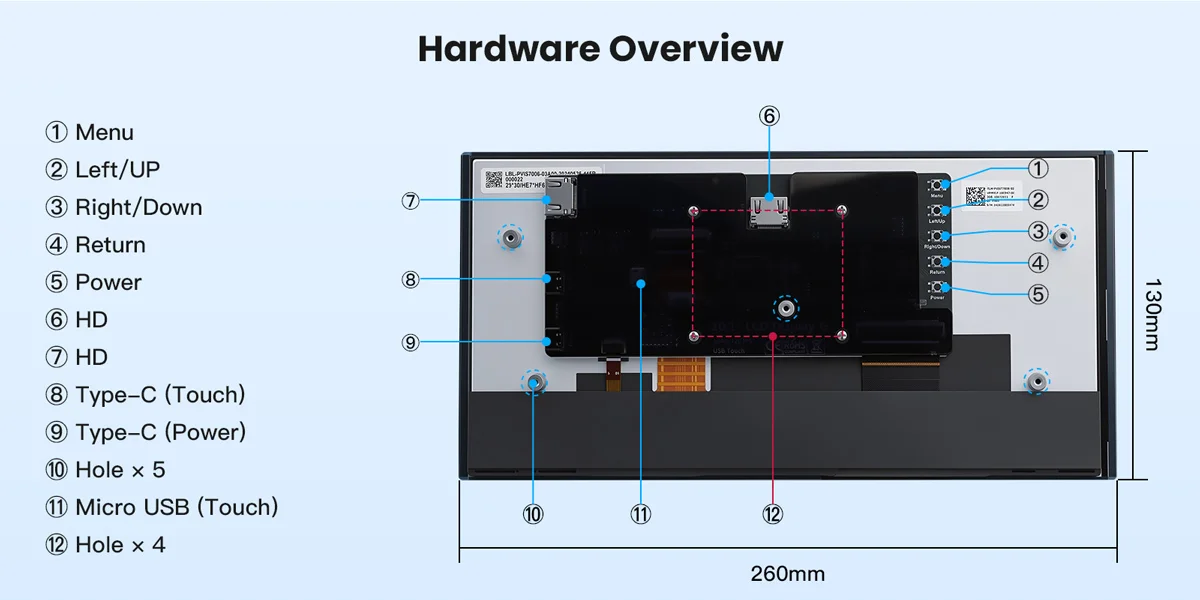

Hardware Overview¶
| Interface Name | Function Description |
|---|---|
| Menu | Display OSD settings menu / Select key |
| Left/UP | Move selection when setting menu |
| Right/Down | Direction key -> (Backlight quick adjustment key) |
| Return | When setting the display menu, go back to the previous level. |
| Power | Turn on or off the LCD display to reduce power consumption |
| HD | For HD high-definition video input, use a adapter to connect to the Raspberry Pi |
| HD | For HD high-definition video input, connect the main device using an HDMI cable. |
| Type C(Touch) | For touch and power supply (5V) |
| Type C(Power) | Power supply (5V) |
| Hole × 5 | The fixed copper pillar can be used for the fixed installation of this product. |
| Micro USB(Touch) | Connect the Raspberry Pi using a adapter for touch functionality. |
| Hole × 4 | Used for fixing the Raspberry Pi |

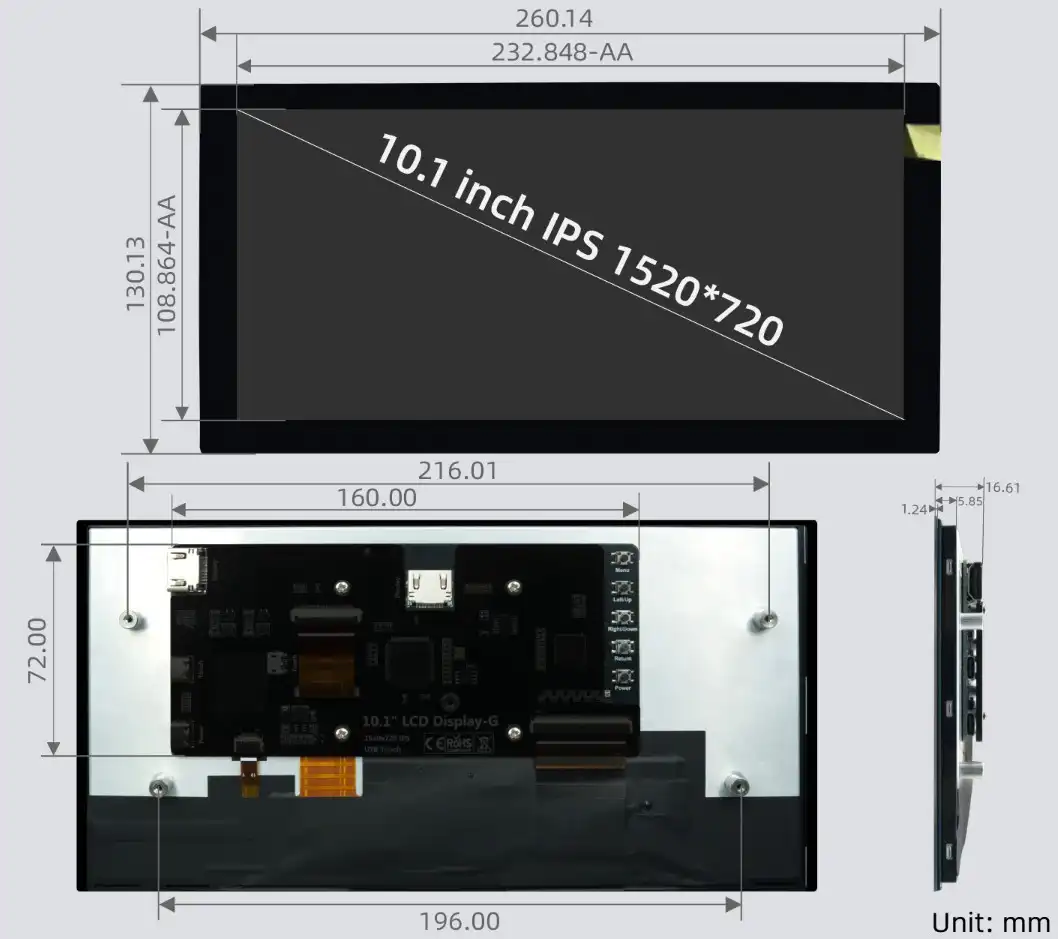

Product size¶
Raspberry Pi software settings¶
Step 1: Download the latest official website image
1）Download the official Raspbian image Download URL：https://www.raspberrypi.org/downloads/raspbian/ username：pi password：raspberry 2）Download the official Ubuntu Mate image Download URL：https://ubuntu-mate.org/download/ The username and password can be set by yourself after the computer is turned on. 3）Download the official Kail image Download URL：https://www.offensive-security.com/kali-linux-arm-images/ username：kali password：kali 4）Download the official Retropie image Download URL：https://retropie.org.uk/download/ username：pi password：raspberry
Step 2: Burn the official website image
1）Download and install the tool software (if it has already been installed, this step can be skipped) SD card formatting software SDFormatter download website： https://www.sdcard.org/downloads/formatter_4/ Download website for the mirror burning software Win32DiskImager： https://sourceforge.net/projects/win32diskimager/ 2）Format the SD card Insert the SD card into the card reader -> Insert the card reader into the computer -> Open the SDFormatter software -> Select the SD card -> Choose "Quick format" (Generally, choose the quick formatting option. For other options, select them according to your needs.) -> Click the "Format" button -> Select "Yes" -> After formatting is completed, click "OK". 3）Burn the image Open the Win32DiskImager software -> Select the image file to be burned (xxx.img) -> Select the SD card -> Click the "write" button -> Select "Yes" -> Wait for the burning process to complete (the entire process will take approximately 10 minutes)
Step 3, Insert the SD card
After completing all the above steps, an SD card will pop up on the computer, and then it should be inserted into the SD card slot on the back of the Raspberry Pi.
Step 4, Run the system
Connect the HDMI interface and TOUCH interface of the display screen to the Raspberry Pi, and turn on the Raspberry Pi power supply. Then it will be able to display and touch normally.
For computer HDMI display¶
This product can be used as an HDMI touch display for Windows computers.
Just connect the HDMI interface and the TOUCH interface of this product to the corresponding interfaces of your computer, and you can directly display and touch.
Resource Download¶
10.1-inch HD Touchscreen 1520×720 IPS Screen Resource
This link contains all information related to this screen, along with relevant instructions and software.
Where to Buy¶
Please visit this page to purchase 10.1-inch HD Touchscreen.
Support¶
If you encounter any issues while using the service, you can contact us via the social media links in the bottom-right corner of elecrow or send an email to techsupport@elecrow.com for technical support.
