16x32 RGB LED Panel Driver Shield
$13.75
Availability:
In stock
SKU
CDE20032P
Weight
20g
- Buy 5 for $11.00 each and save 20%
- Buy 10 for $9.60 each and save 30%
It is a shield for Arduino Uno for driving a 16x32 RGB matrix panel with a HUB75 (8x2 IDC) connector.
Description:

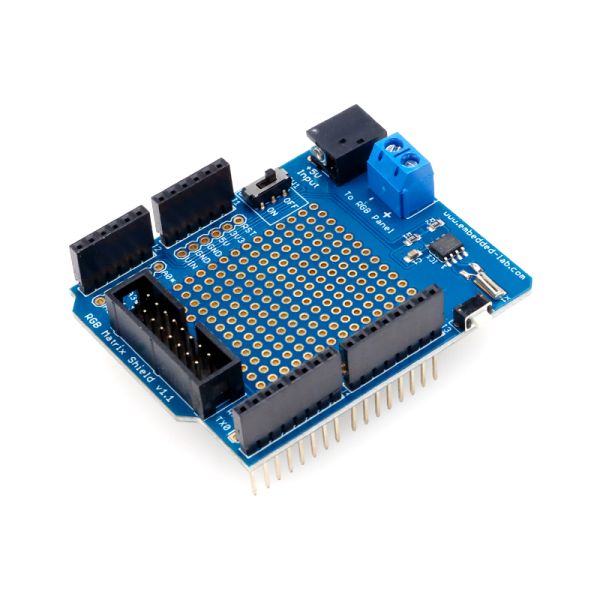

It is a shield for Arduino Uno for driving a 16x32 RGB matrix panel with a HUB75 (8x2 IDC) connector. It provides a matching 2×8 IDC connector for setting up easy connections between the Arduino board and the LED panel. The shield also features an RTC chip on board. The display uses 12 digital I/O pins of Arduino Uno for full color control.
Features
· Operates at 5V
· Compatible with Adafruit’s RGBMatrixPanel Library
· DS1307 RTC chip on board along with a CR1220 coin-cell battery holder
· The I2C pins of the DS1307 chip are pre-wired to A4 and A5 pins of the shield.
Package list
· RGB driver shield x1
Wiki & External links
· For a complete RGB panel kit, visit: https://www.elecrow.com/16x32-rgb-led-matrix-panel-arduino-driver-shield.html
· For document: http://embedded-lab.com/blog/hookup-guide-for-16x32-rgb-led-panel/
