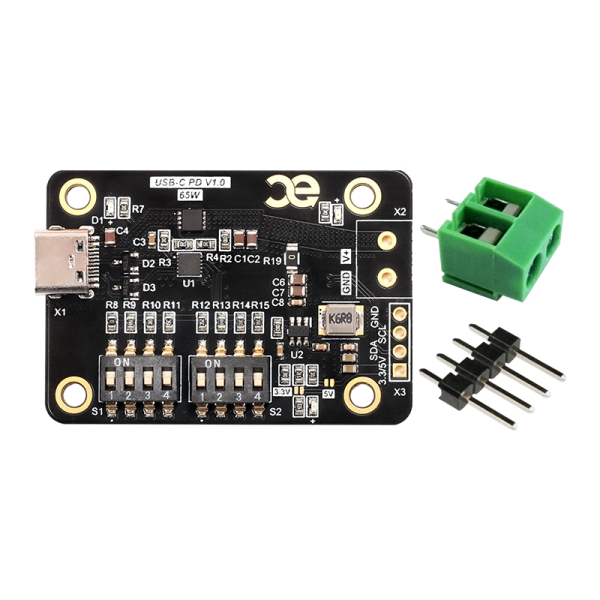

USB-C PD Power Delivery Board 65W

Descriptions

The Power Delivery Board is nothing but a sink controller board. It negotiates with the USB PD Charger and gets the desired voltage and current rating as per the desired configuration.

USB-C PD Power Delivery Board could be used in various applications where you want to use USB-C for powering your product or project.

USB-C PD Power Delivery Board provides a very easy-to-use DIP switch to select which voltage or current rating you need O/P from your USB PD Charger.

It also has an on-board DC-DC converter, which can generate either 5V or 3.3V based on the shorted jumper. It can easily provide you with around 3.3W. NOTE: Even more power could be taken from the DC-DC Converter if the USB PD voltage is lower(9V, 12V, etc.) or if you use an external heatsink.

Voltage, current selection or even monitoring is possible with the I2C interface, which is provided on the 4-Pin header.

Features

• USB-C Input
• Power Delivery Upto 65W, O/P selection using a DIP switch or I2C Interface
• Additional DC-DC Converter(TPS54302) onboard to generate 3.3V 1A / 5V 0.65A output so that you need fewer components on your application board.
• 4x Mounting holes for easy mounting
• LED indication for USB-C Input, USB PD Output and DC-DC Converter Output.
• A 2-pin power Terminal is given for easy connection.
• A 4-pin 2.54mm Header connector is given for the I2C connection.
• Both connectors will come unsoldered.
