USB 5V to ±12V Power Supply Module
$13.99
Availability:
In stock
SKU
CQL231102P3
Weight
43g
- Buy 2 for $12.87 each and save 8%
- Buy 3 for $11.89 each and save 15%
- Buy 4 for $11.19 each and save 20%
×
1 item(s) added to cart
1 item(s) added to cart
Customers Who View This Item Also Bought

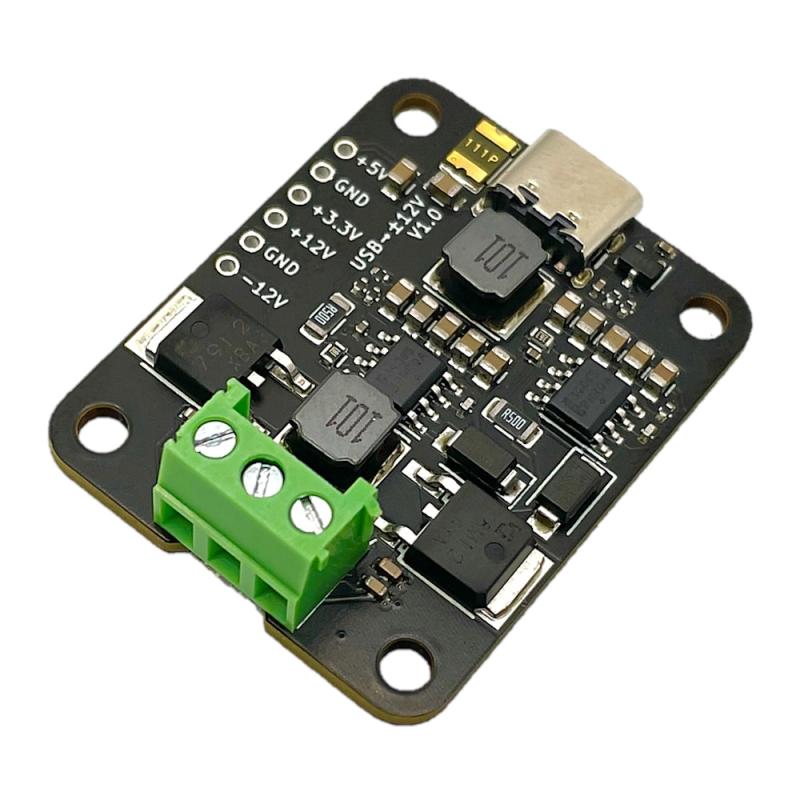

This module generates non-isolated positive and negative power supply (±12V) from USB power supply (+5V).
Description
This module generates non-isolated positive and negative power supply (±12V) from USB power supply (+5V). Since the voltage is stabilized by a series regulator, ripple voltage and noise are low, making it suitable for dual power supply for operational amplifiers.
In addition, VBUS (+5V) and +3.3V can be taken out through through-holes.
Part Names
Included Items
- Board x 1
Specification
- Output voltage range
- ＋12V: 11.4V ～ 12.6V
- －12V: －11.4V ～ －12.6V
- ＋3.3V: 3.234V ～ 3.366V
- Maximum output current
- ＋12V: 40mA
- －12V: 40mA
- ＋3.3V: 200mA
- Input voltage: 4.75V ～ 5.25V
- Interface
- Input: USB Type-C
- Output: Terminal block
- Dimensions: W32 x D40 x H13 mm
External links
- Support Page The schematic (PDF), 2D CAD data (DXF), and 3D CAD data (STEP) are available.
