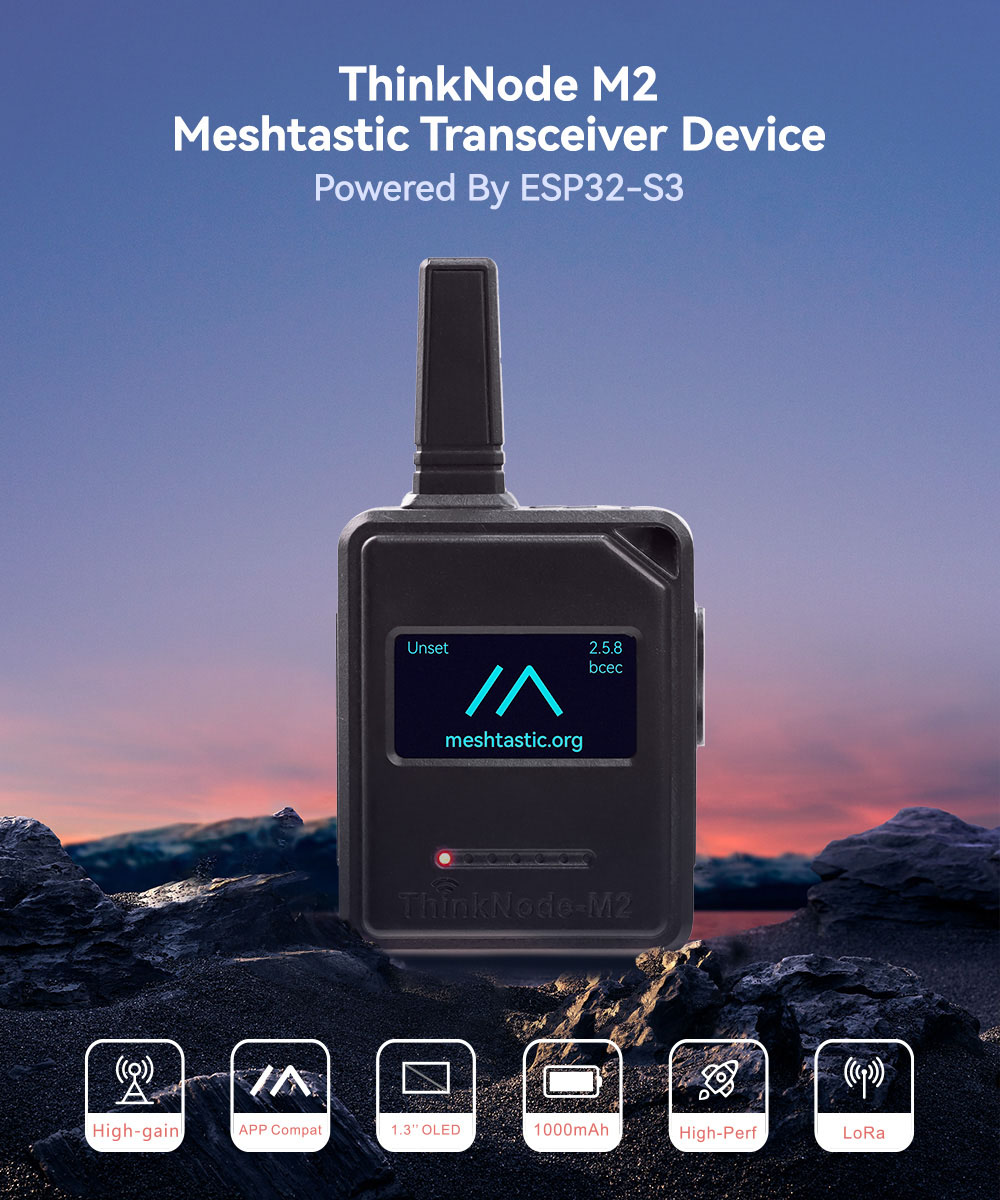

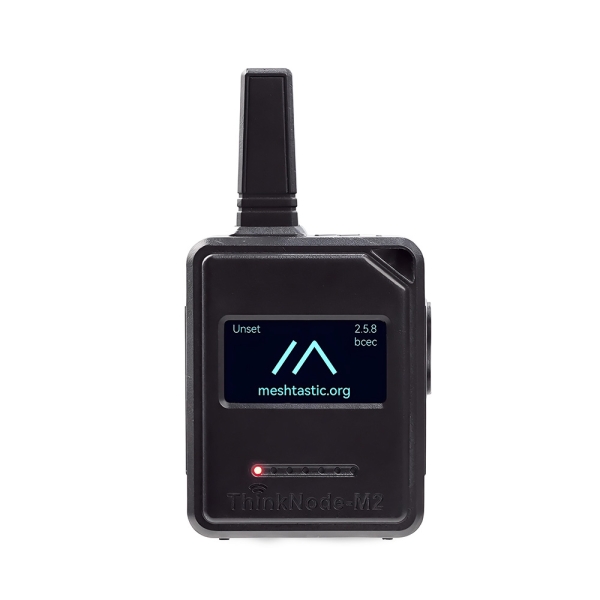

ThinkNode M2 Meshtastic (LoRa) Signal Transceiver Powered By ESP32-S3 With 1.3” OLED Display
As low as
$21.90
Availability:
In stock
Only %1 left
SKU
CIL13002M
Brand
elecrow
Weight
200g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
【LoRa signal transceiver】Firmware adapts to Meshtatic protocol, it can realize efficient transmission and reception of LoRa signals
【1.3-inch OLED display】Real-time viewing of data and device status
【Rechargeable lithium battery】1000mAh large-capacity battery, can meet the needs of long-term outdoor use
【Modular Style】Suitable for embedded solution product design
【Compatible with Meshtastic APP】Can use the Meshtastic APP to set device parameters, information management, etc.
Description
Elecrow ThinkNode-M2 is a high-performance LoRa signal transceiver. It uses the ESP32-S3 module as the main processor and supports Bluetooth. Users can easily configure and monitor the device through their mobile phones. M2 is pre-installed with Meshtastic firmware and equipped with an SX1262 wireless chip, which can efficiently send and receive LoRa signals to ensure the reliability and stability of communication. In addition, M2 is perfectly compatible with the official Meshtastic App. Users can use the App to implement parameter configuration, message communication, map and location sharing, network status monitoring, data recording and export, and custom settings.
The built-in 1.3-inch OLED display can display data and device status in real-time, which is convenient for users to view at any time. Built-in 1000mAh rechargeable battery supports long-term outdoor use. The LoRa antenna supports multiple frequency options to optimize communication performance further. The device adopts a modular design to facilitate embedded integration and custom development.
With integrated LoRa communication technology, ThinkNode-M2 achieves efficient connection and data exchange between devices. Whether in remote areas where cellular networks are not available or in emergencies, M2 can be used as an independent communication tool to provide critical safety assurance. It is also suitable for low-cost information exchange and transmission and reception solutions between communities to meet diverse communication needs.
Self-developed by Elecrow with exclusive design.

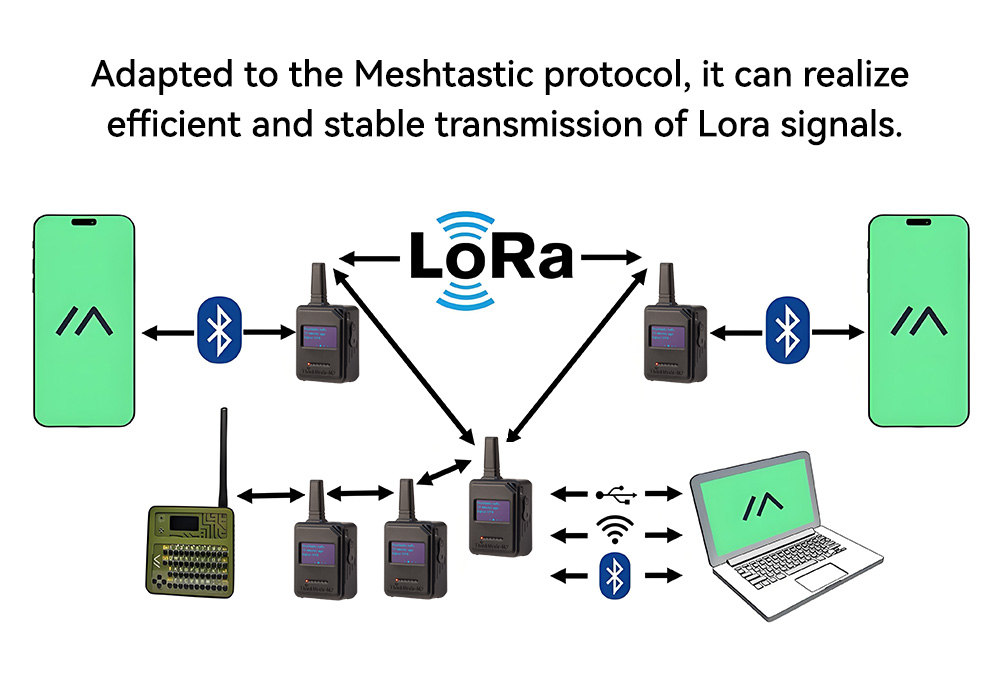

Meshtastic App Compatible
Users can use the App to configure and manage parameters of the M2 device, communicate messages, share maps and locations, monitor network status, record and export data, customize settings, etc.

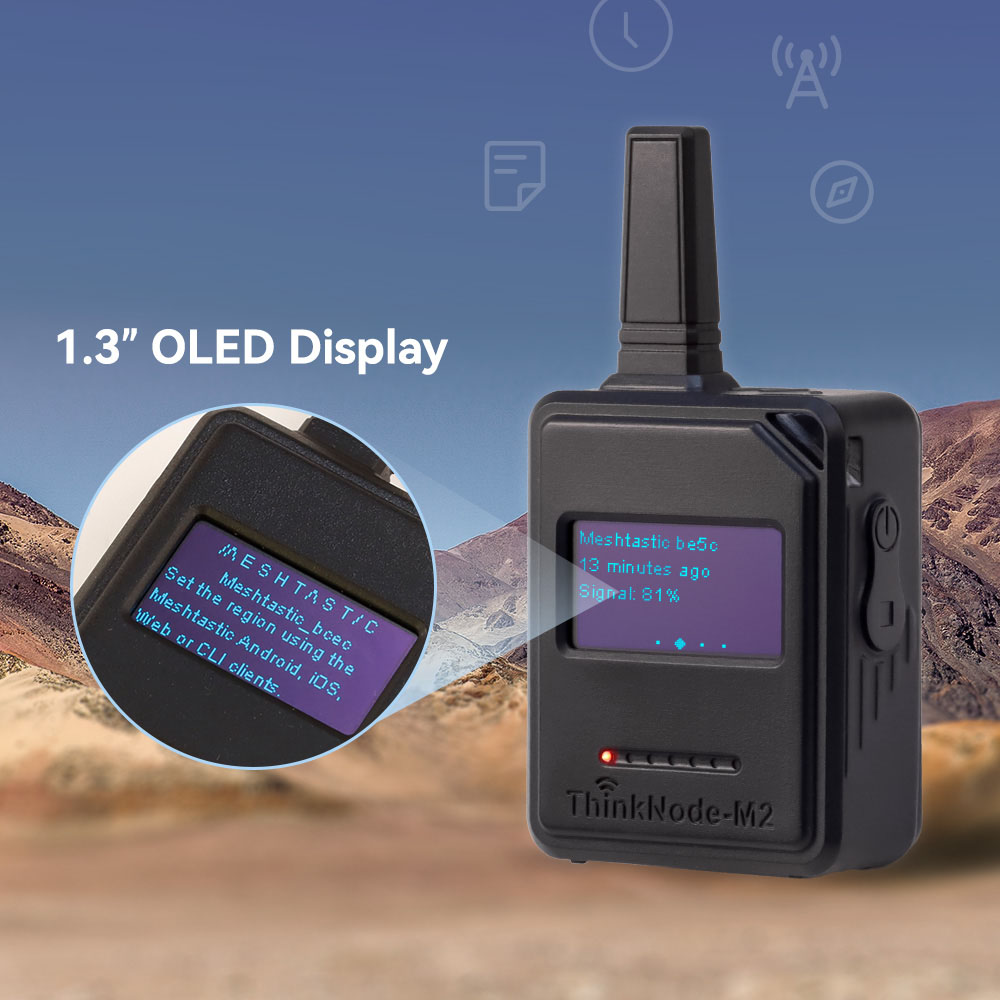

Built-in 1.3" OLED Display

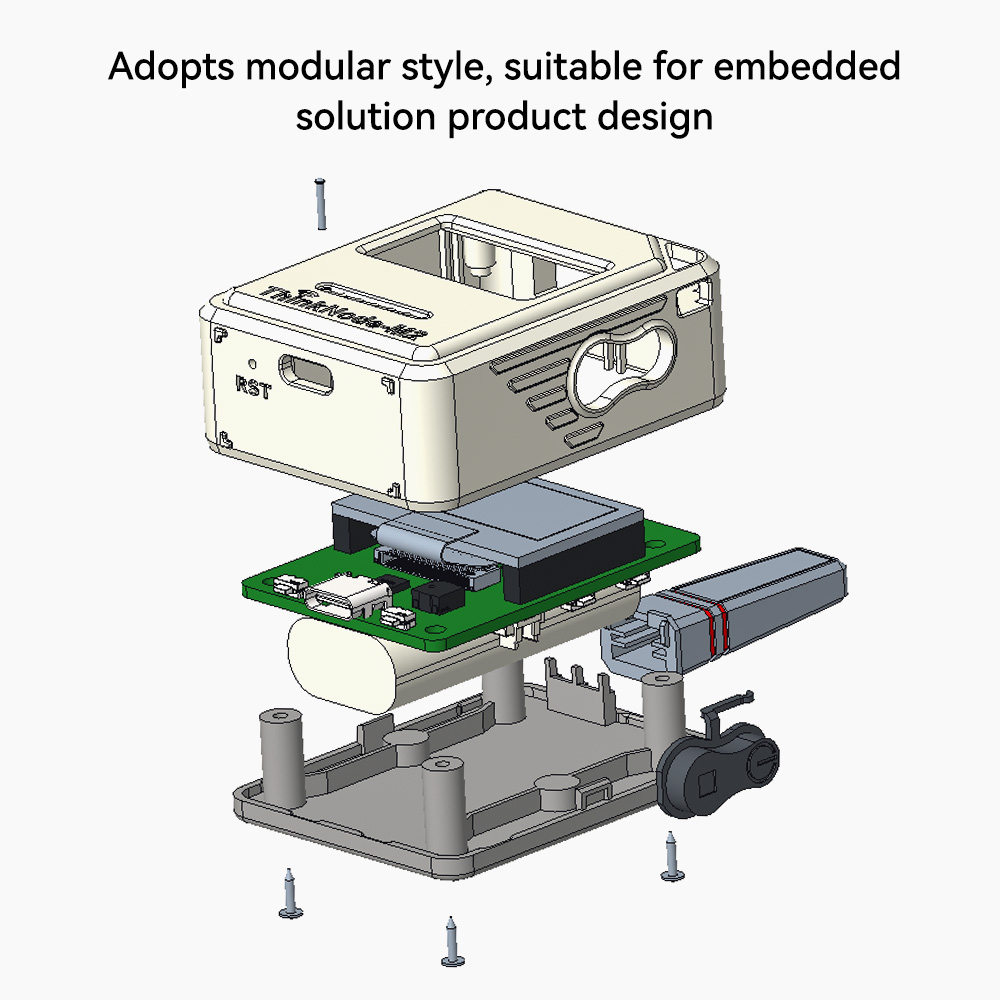

Modular design, suitable for embedded solution.
Applications Scenario

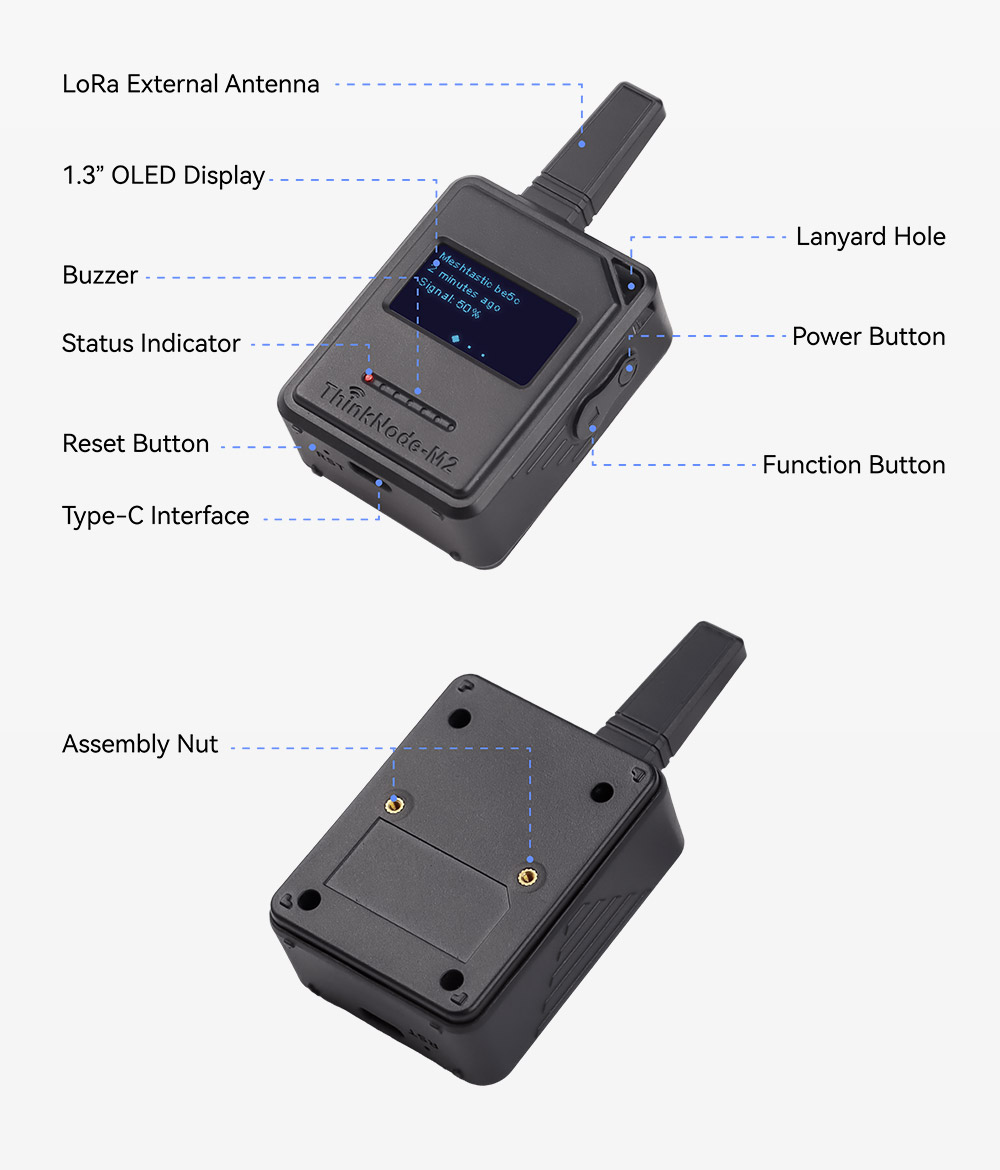

Hardware Overview
Feature
- Thinknode M2’s firmware is adapted to the Meshtastic protocol, it can realize efficient and stable transmission and reception of Lora signals;
- 1.3-inch OLED display screen for real-time viewing of data and device status;
- Built-in 1000mAh lithium battery, it can Meet the needs of long-term outdoor use;
- Adopts modular style, suitable for embedded solution product design;
- Compatible with the Meshtatic official App. Users can use the App to configure and manage parameters of the M2 device, communicate messages, share maps and locations, monitor network status, record and export data, customize settings, etc.
- Compact size, easy to carry and durable;
- External LoRa antenna ensures the stability and efficiency of signal transmission;
Target Group
Outdoor enthusiasts, emergency responders, rural and remote residents, technology enthusiasts and developers, logistics and transportation companies, and community organizations.
Application
Outdoor adventure/Emergency communications/Community networking/Technology enthusiasts/Fleet management.

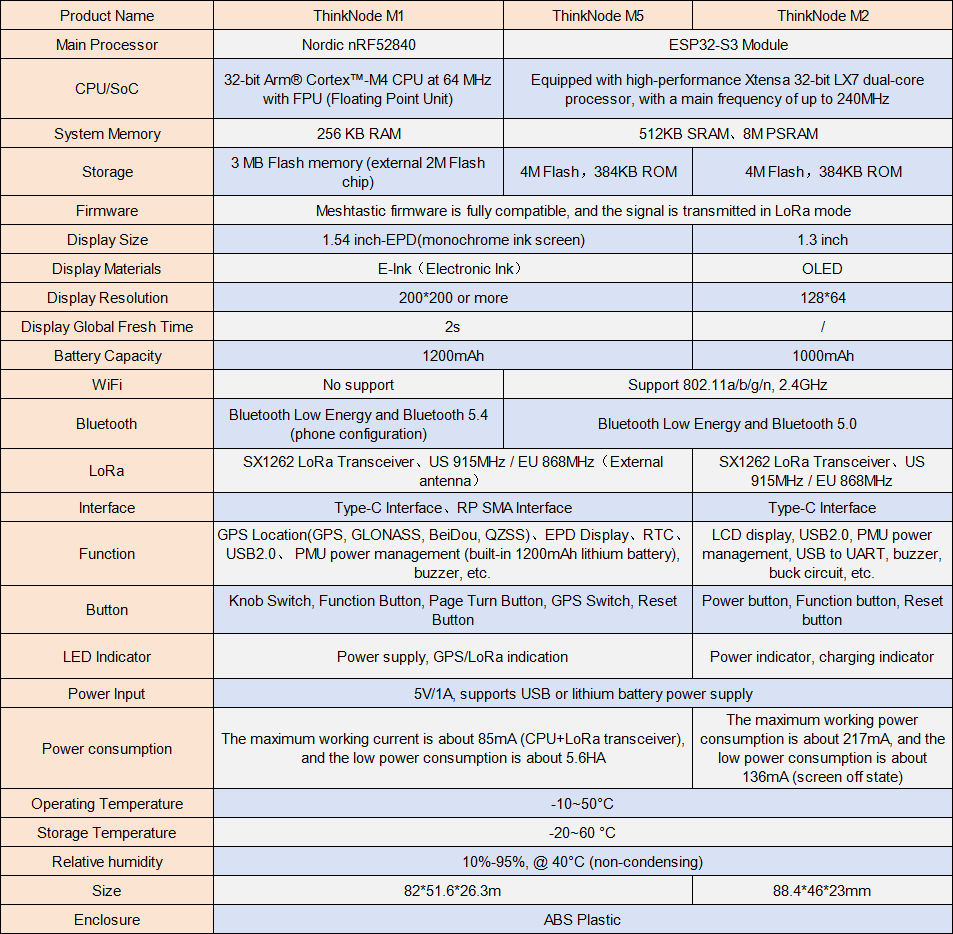

Specification
|
Main Processor（ESP32-S3 Module） |
|
|
CPU/SoC |
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz |
|
System Memory |
512KB SRAM、8M PSRAM |
|
Storage |
4M Flash，384KB ROM |
|
Firmware |
Meshtastic firmware is fully compatible, and the signal is transmitted in LoRa mode |
|
Display |
|
|
Size |
1.3 inch |
|
Display Materials |
OLED |
|
Resolution |
128*64 |
|
Driver Chip |
SSH1106 |
|
Wireless Communication |
|
|
WiFi |
Support 802.11a/b/g/n, 2.4GHz |
|
Bluetooth |
Bluetooth Low Energy and Bluetooth 5.0 |
|
LoRa |
SX1262 LoRa Transceiver、US 915MHz / EU 868MHz |
|
Hardware |
|
|
Interface |
Type-C Interface, IPEX antenna connector (internal), battery connector (internal) |
|
Function |
LCD display, USB2.0, PMU power management, USB to UART, buzzer, buck circuit, etc. |
|
Button |
Power button, Function button, Reset button, BOOT button |
|
LED Indicator |
Power indicator, charging indicator |
|
Other |
|
|
Power Input |
5V/1A, supports USB or lithium battery power supply |
|
Power consumption |
The maximum working power consumption is about 217mA, and the low power consumption is about 136mA (screen-off state) |
|
Operating Temperature |
-10~50°C |
|
Storage Temperature |
-20~60 °C |
|
Relative humidity |
10%-95%, @ 40°C (non-condensing) |
|
Size |
With Case：88.4*46*23mm; Without Case：51.5*37*9.5mm |
|
Shell |
ABS Plastic |
|
Net weight |
30g(Without case);50g(With case) |
Package List
- 1x ThinkNode M2 Transceiver Device
- 1x USB-A to Type-C Cable
- 1x User Manual
