Nano Sensor: MMC5983MA 3-axis Magnetometer High-Performance Compass 0.5° Precise Heading Measurement SPI Communication for Arduino or Raspberry

Keypoints

✏️SYSROX HIGH-PRECISION MAGNETOMETER allowing for 3-axis measurement of magnetic fields enabling precise heading measurement with 0.5° accuracy, ideal for use as a compass. Measurement frequency up to 1000Hz, measurement range of ±8 Gauss with an 18-bit ADC.

✏️NEXT-GENERATION SENSOR (MMC5983MA) HIGH PERFORMANCE replacing older models such as QMC5883L, HMC5883L, LIS3MDL, with unparalleled resolution, precision, and noise levels for this range of sensors.

✏️FULLY CUSTOMIZABLE SOFTWARE for reading, configuring, and calibrating the sensor using SPI bus, compatible with Arduino, perfect for ESP32 or Teensy 4.

✏️MINIATURE DEVELOPMENT BOARD 1cm x 1cm with 2.54mm pin spacing for easy prototyping of robotic applications, drones... Snap-on prototyping pins allow for use on a breadboard or non-permanent mounting on a support board.

✏️ONLINE COMPREHENSIVE DOCUMENTATION enabling easy utilization of the board and extension of the offered functionalities.

Description

⚠️ The offered board only includes the sensors and no microcontroller, which must be added additionally and connected to the board to benefit from the stated functionalities.

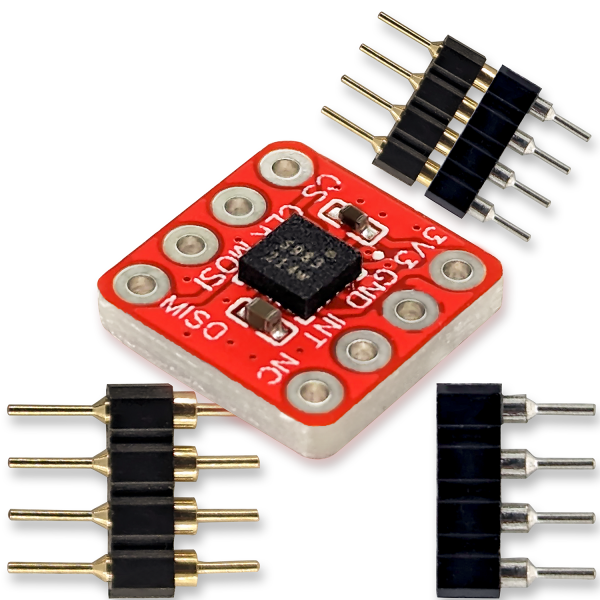

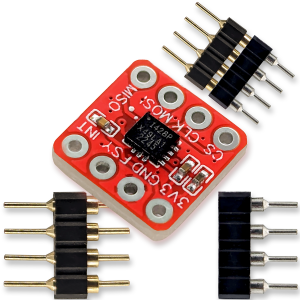

The SRX-MAG00-DEV is a high-performance magnetometer that can be used as a base for a heading measurement system. It includes:   Magnetometer: Memsic MMC5983MA   The extreme compactness of the board makes it ideal for integration into robotic applications such as drones, rovers...

One of the best consumer grade magnetometer! The board includes one of the best consumer-grade sensor in terms of noise, resolution, sensitivity... It is therefore a significantly more performing alternative to QMC5883L, HMC5883L, LIS3MDL, perfect for a precise e-compass application

Utilization of sensor data Embedded software 100% compatible with Arduino! Full access to raw or processed sensor data, allowing complete integration freedom into any project	Utilization of sensor data Embedded software 100% compatible with Arduino! Full access to raw or processed sensor data, allowing complete integration freedom into any project





Technical specs

1000 Hz Max Mag Sampling frequency ± 8 G Max Range 18 bits ADC resolution 0.4 mG RMS noise ± 0.5° Max Heading Accuracy SPI, I2C, I3C Communication The board is designed to work with SPI communication because of its superior performance and reliability. I2C is supported by the sensor but not by the provided software, pull-up resistors are not included.



Device brochure



Documentation

Use the device SRX-MAG00-DEV home page  HOT Language : english Details : Device reference page, how to wire, links to other reference documents, how to use code...   Sensor parsing code documentation  HOT Language : english Details : Sensor parsing code documentation, compatible with all Arduino boards.   Parse sensors with Arduino IDE code version Language : english Details : Sensors parsing package for Arduino IDE, compatible with all Arduino boards.

General documents mmc5983ma datasheet Language : english   Nano sensors brochure brochure Language : english

General guides Magnetometer calibration Language : english   Initialize the code repository and start coding Language : english



Package content

lps22hb barometer SPI Breakout Board Male and female clip-on pins Straight pins
