Details

DC-DC Buck-Boost Converter 3-16V to 3.3V / 5V / 9V, Max 2A Arduino Step-Up Step-Down Voltage Regulator with USB Type C Input

Brand:

Sysrox

Name:

SRX-POW00-DEV

ASIN:

B0DK7S4ZSZ

Dimension:

23 x 18 x 2 mm

Keypoints

✏️ DC-DC BUCK-BOOST CONVERTER FOR 3V-16V INPUT: This regulator can step down or step up the input voltage to the selected voltage using the integrated switch (3.3V, 5V, 9V)

✏️ HIGH CONVERSION PERFORMANCE: Maximum output current of 2A in boost or buck mode, up to 95% efficiency, 2.5 MHz operating frequency, DC regulation accuracy of ± 1%, low voltage ripple of 30mV

✏️ COMPACT AND SUITABLE FOR A WIDE RANGE OF APPLICATIONS: Small dimensions (23mm x 18mm x 1.6mm), operating temperature range from -40°C to 150°C, USB input (non-PD) or direct voltage input

Description

⚠️ The type C port is only usable as an input and is not usable as a voltage source.

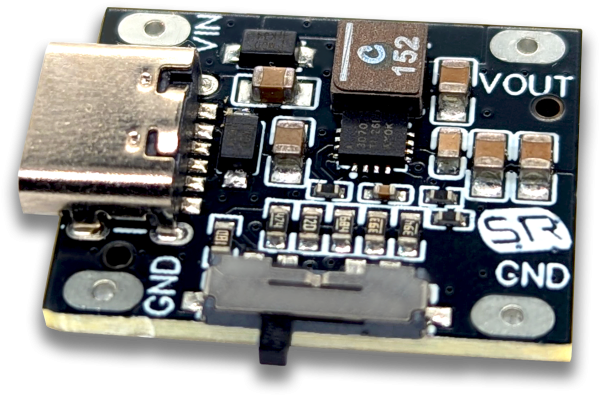

The Sysrox SRX-POW00_DEV is a high-performance DC-DC buck-boost converter, capable of delivering an output voltage of 3.3V, 5V, or 9V from an input voltage ranging from 3V to 16V, with low ripple regardless of the load.

The regulator is based on the TI TPS63070 chip, offering:

Maximum output current: 2A in boost or buck mode
Efficiency: Up to 95%
DC voltage accuracy: ± 1% (± 3% with light load)
Quiescent current: 50 µA
Low voltage ripple:
- 30 mV in PWM mode
- 50 mV in PFM mode (no load or light load)

High performance DC DC Step-Up Step-Down converter

The board can be powered by USB (not compatible with USB-C PD) or directly by a voltage source ranging from 3V to 16V. This module is ideal for prototyping needs and includes protections against negative voltages, over-temperature, and excessive output voltages.
