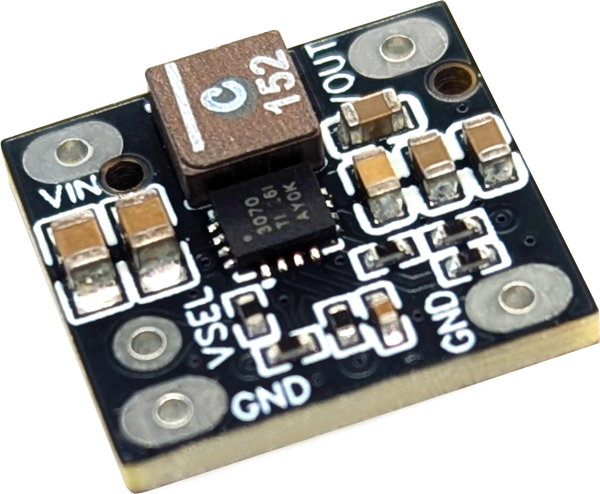

Sysrox SRX-POW01-NANO is a high-performance DC-DC buck-boost converter capable of delivering a 3.3V or 5V output from an input voltage of 3-16V, with low ripple regardless of the load.

The regulator is based on the TI TPS63070 chip, offering:

• Maximum output current: 2A in boost or buck mode
• Efficiency: Up to 95%
• DC voltage accuracy: ± 1% (± 3% with light load)
• Quiescent current: 50 µA
• Low voltage ripple:
  • 30 mV in PWM mode
  • 50 mV in PFM mode (no load or light load)

High performance DC DC Step-Up Step-Down converter

The board can be powered directly by a voltage source ranging from 3V to 16V. This module is ideal for prototyping needs or for direct integration into robotic applications. It includes protections against over-temperature and excessive output voltage, but does not include protection against negative voltages.
