Description

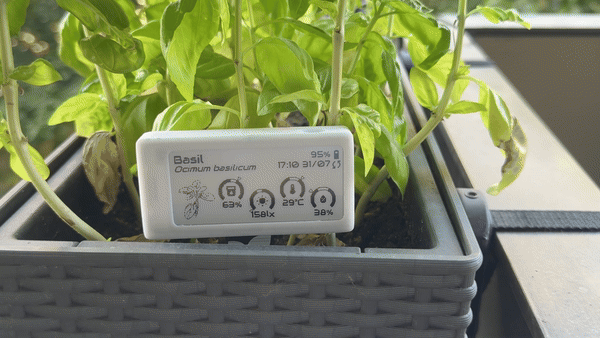

Introducing the Smart Plant - the ultimate device for monitoring your plant's health! With the Smart Plant, you can measure a range of parameters such as soil moisture, ambient light, and air temperature & relative humidity.

Equipped with IoT capabilities, this device can stream the measured parameters directly into your favorite platform like Home Assistant, allowing you to keep an eye on your plant's health from anywhere. You can also view the data directly on the integrated 2.9" e-paper display, making it convenient for you to check on your plant's health at any time.

With its sleek and modern design, the Smart Plant is the perfect addition to any home or office. Its easy-to-use interface and accurate measurements make it the go-to device for any plant enthusiast!

What's in the box

A fully soldered Smart Plant board, ready to be programmed by you, using the Arduino IDE or the recommended configuration for ESPHome.

And optionally, you can add

1000mAh LiPo battery, ready to plug and power your Smart Dashboard.

296x128, 2.9inch e-paper display panel.

3D Printed (FDM method) white enclosure, with polished finish.

Documentation

Find everything you need to know about the Smart Plant in the official documentation website (https://smart-plant.readthedocs.io).

Enclosure

You can add to the purchasing options a 3d printed enclosure in white colour (that you can paint afterwards if the colour doesn't convince you). Alternativelly and if you possess a 3D printer at home, you can 3D print the same design from the documentation.

Whether you print on your own, or get it in the kit, it is strongly advised to house the board within an enclosure to prevent exposure to spilled water.

Features

	Since it is based on the extended ESP32-S2 microcontroller you can upload the ESPHome firmware and connect it with your Home Assistant setup or simply upload your own Arduino codes.
	Open-source. If you have any questions or suggestions about the board, just check out the extended documentation, and if you still want to dig deeper, check out the design files on Github
	Simple and clear. Check out at a glance your plant's state on the 2.9" e-paper screen. You can program your own data layout so you have everything you want to see at first sight.
	Embedded sensors. Stop worrying about having to connect multiple sensors to measure your plant's health. On the Smart Plant, you have all the sensors you need already on a PCB

Specifications

Microcontroller

Module	ESP32-S2-MINI-1
SoC	Xtensa® singlecore 32-bit LX7 up to 240MHz
Flash	4MB
PSRAM	2MB

Power

Battery	LiPo 3.7 V 1000 mAh
Input (USB/Solar panel)	5V @ 500mA

Features

Interface	USB Type C
	2.4GHz WiFi
	UART
Display	2.9” e-paper
Sensors	Capacitive soil moisture probe (analog)
	VEML7700-TR illuminance sensor (digital I²C)
	AHT20 air temperature & relative humidity sensor (digital I²C)
	MAX17048 battery voltage level sensor (digital I²C)
