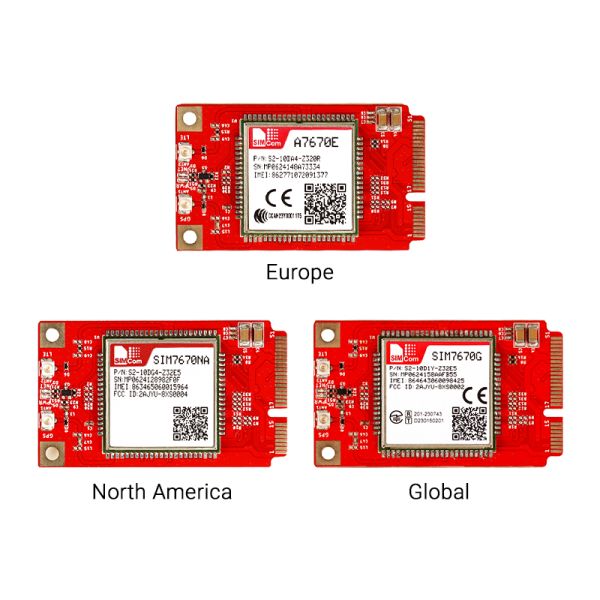

SIM7670 4G Module with Mini PCIe Interface, Global/NA/EU Frequency Band Optional
As low as
$14.60
Availability:
In stock
Only %1 left
SKU
CIR12704M
Brand
ELECROW
Weight
30g
【Support Multiple Protocols】Including TCP/IP, FTP, IPV4, and GNSS satellite navigation system.
【Compatible with multiple protocols】Compatible with wireless communication protocols of Android 5.0 to 9.0, providing rich wireless communication functions;
【Powerful software upgrade capability】Can be upgraded through the USB port, and remote software upgrade can be achieved through FOTA technology;
【Compatible with multiple systems】Supports Microsoft Windows 7/8/10 and Linux/Android system USB drivers to ensure use in multiple environments;
Description
This SIM7670 4G module is a high-performance LTE Cat1 wireless module that uses Simcom's SIM 7670 and A7670 communication modules. Through the Mini PCIe interface, high-speed 4G data transmission and voice communication can be achieved. The module supports multiple frequency band options and is suitable for network requirements in various regions worldwide, ensuring wide application. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate, and supports multiple protocols, including TCP/IP, FTP, IPV4, and GNSS satellite navigation system, providing excellent compatibility. It is compatible with Windows 7/8/10, Linux and Android USB drivers, and supports FOTA remote software upgrades to ensure continuous optimization and updates of the system.
The small size of the module makes it easy to be integrated into various IoT devices, meeting diverse application requirements. Its low-power design and reliable performance have led to its widespread use in fields such as IoT, industrial control, smart homes and automobiles. Whether used for data transmission, voice communication, or navigation positioning, the SIM7670 4G module provides a stable and efficient solution, making it an ideal choice for various smart devices.

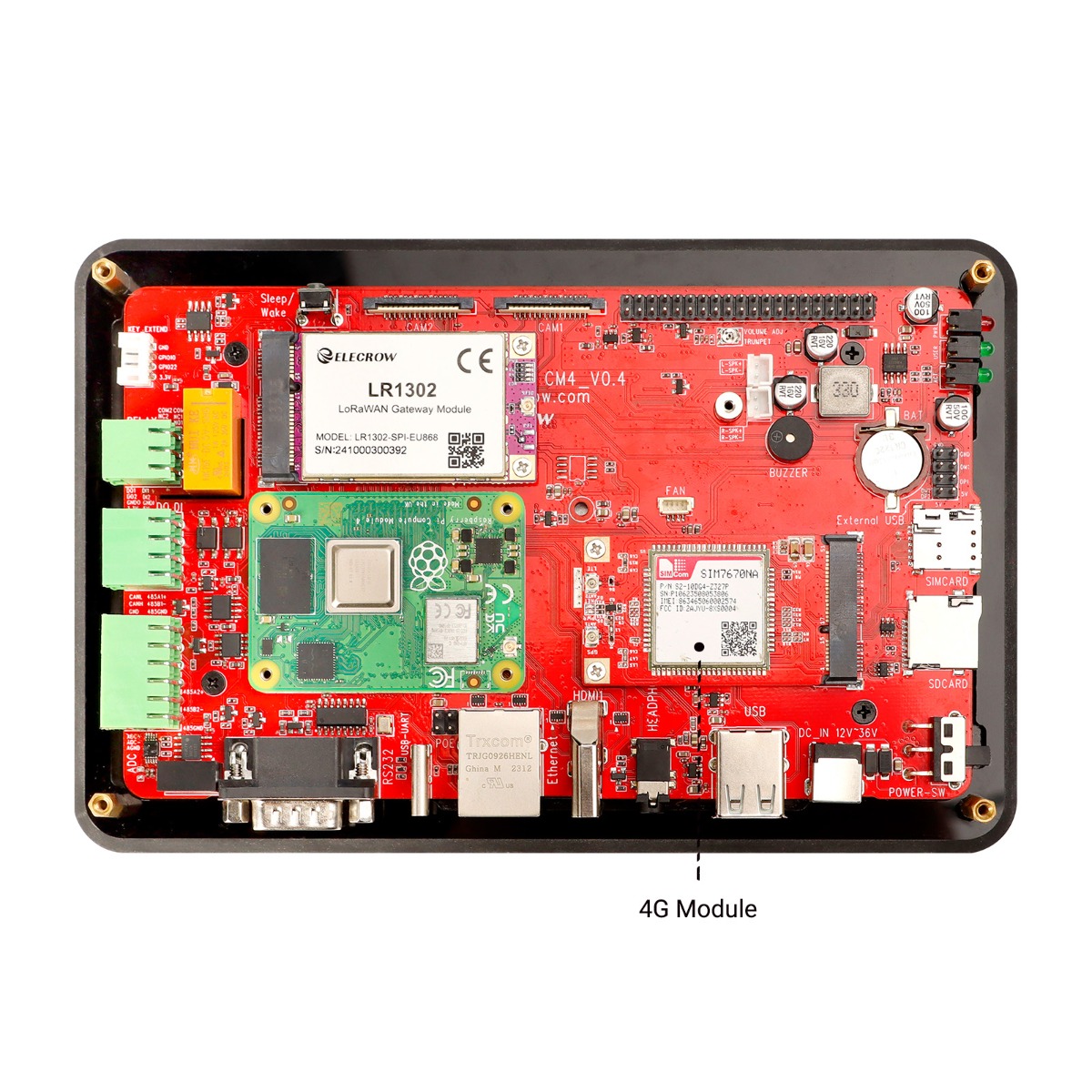

Note: Applicable to Pi Terminal, click here to buy together.
Feature
- Network protocol support: Supports comprehensive network communication protocols, including TCP/IP, IPv4/IPv6, MultiPDP, FTP, FTPS, HTTP, HTTPS and DNS, to meet data transmission requirements in different network environments.
- Operating system compatibility: Supports Microsoft Windows 7/8/10 USB drivers, supports Linux/Android USB drivers, ensuring use in a variety of environments
- Android RIL support: Compatible with wireless communication protocols of Android 5.0 to 9.0, providing rich wireless communication functions
- Software upgrade capability: Supports upgrades through the USB port and remote software upgrades through FOTA technology
- Network interface support: Supports RNDIS/ECM, providing flexible network connection options.
Note: FYI, the Pi Terminal is not included.
Specification
|
Option |
Global |
NA |
E |
|
Main chip |
SIM 7670G |
SIM 7670NA |
A7670E |
|
Frequency Band |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71* LTE-TDD:B34/B38/B39/B40/B41 |
LTE-FDD: B2/B4/B5/B13/ B14/B66/B71* |
LTE-FDD: B1/B3/B5/B7/B8/B20 GSM: 900/1800MHz |
|
Use Area |
Global |
North America |
Europe |
|
GPS/GNSS |
Support |
||
|
Network Protocols |
TCP/IP/IPV4/IPV6/MultiPDP/FTP/FPT5/HTTP/HTTPS/DNS |
||
|
Data Transfer of LTE (Mbps) |
10(DL)/5(UL) |
||
|
Software Feature |
Support TLS/WWAN(RNDIS)/ECM |
Support TLS/WWAN(RNDIS)/ECM |
Support TLS/LBS/WWAN(RNDIS)/ECM |
|
Firmware Upgrade |
USB/FOTA |
||
|
Interface Type |
IPEX*2(LTE&GPS), PCIe, SIM socket |
||
|
Operation Voltage |
3.4-4.2V (Typical 3.8V) |
||
|
Operation Temperature |
-40℃~+85℃ |
||
|
Size |
50*30.2*1.6mm |
||
Package List
- 1x SIM7670 4G Module
- 1x 4G and GPS Antenna(Optional)
