ZX Multisound [2048Kb] (in development)

ZX Multisound [2048Kb] (in development)

  • thumbnail-img
  • thumbnail-img


Story

Tech specs

  • TurboSound FM (2xYM2203)
  • General Sound (16MHz, 2048Kb of RAM)
  • SAA1099 (use port #FF/#1FF to access SAA chip, write #F7/#FF to #FFFD port to enable/disable SAA)
  • SounDrive (ports #0F, #1F, #4F, #5F)
  • MIDI synthesizer (controlled via YM(AY) chip - compatible with ZX Spectrum 128K / ZXUNO)
  • Low profile PCB: 170x64mm
  • 5V and 12V power required
  • 4x 1-bit digital DACs for GS and SounDrive

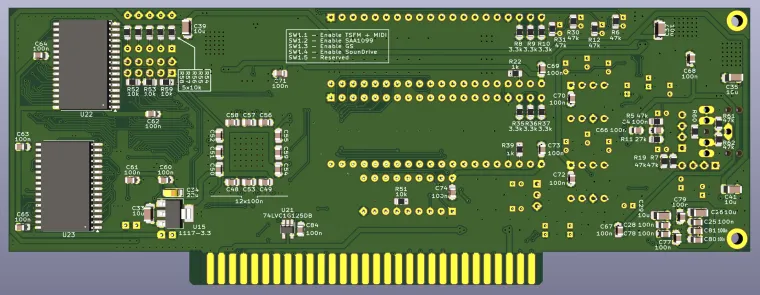

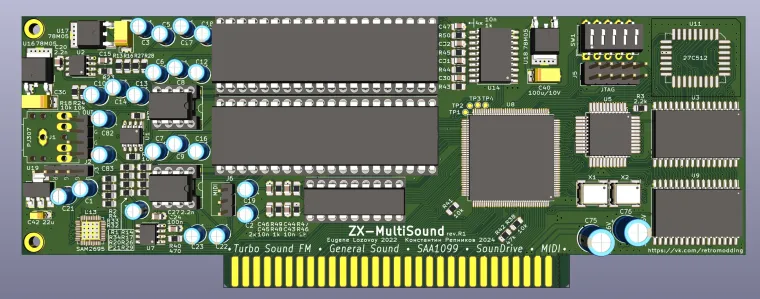

Schematic and Layout
  • Sound card for ZX Spectrum (NemoBus).

    https://github.com/UzixLS/zx-multisound
