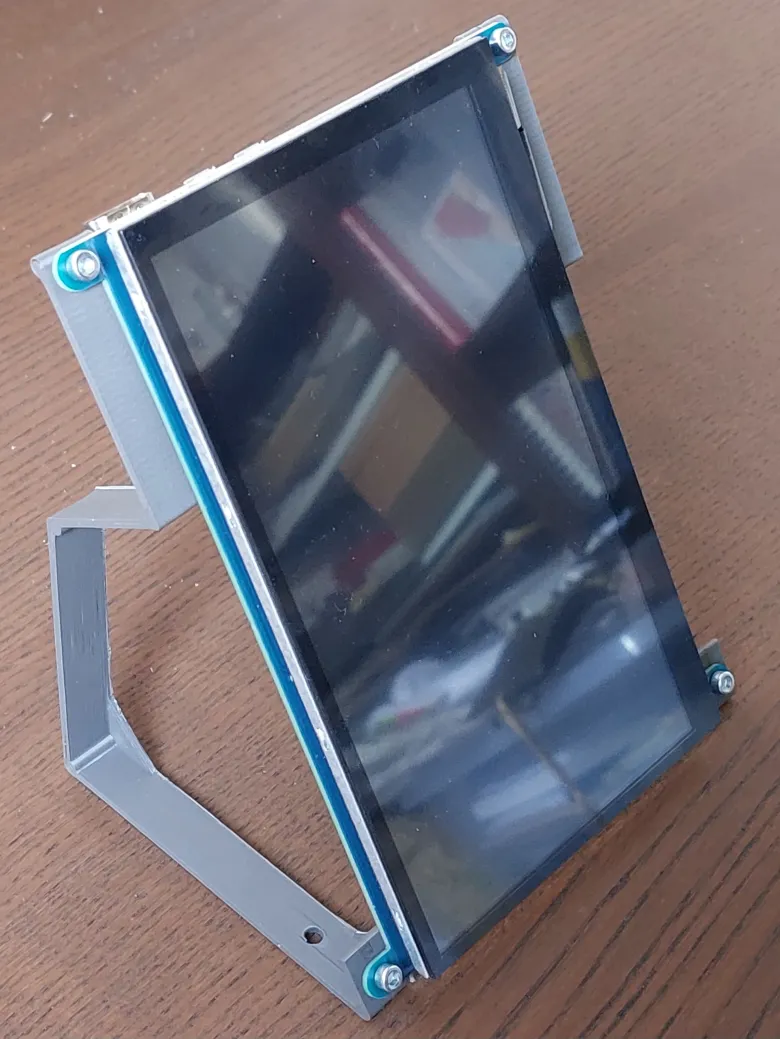

Vertical Stand for Elecrow 7" Touchscreen (Display-C)

This allows you to use the touchscreen in portrait format. It's simple, yet sturdy design allows for fast printing. For completion 4 M3 screws are required. Optinally, screw holes in the bottom allow for screw down to a table or plate.

Vertical Stand for Elecrow 7

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Tinkercad

Story

Could not find any, so I designed my own.

BE CAREFULL NOT TO STRIP THE HOLES (especially the top ones)! Because of the HDMI plug there was little space to play with.

Mounting holes are for M3 bolts (2.6mm diameter) and 157mm apart. There is a little flex in the design.

On the bottom there are holes with 4mm to mount to a table or else.

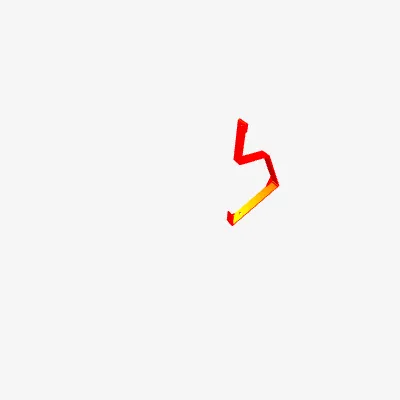

Left and right part of the stand are marked "L" and "R" on the upright.

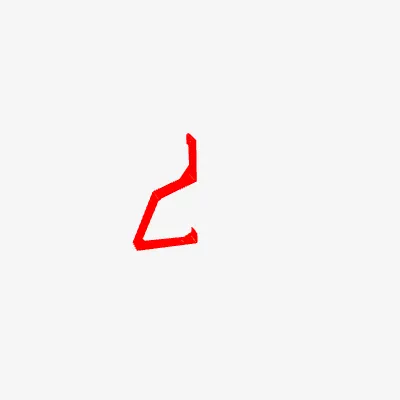

One version has 33°, the other has 37°.
