Top and bottom plates for Klein Split Keyboard

Top and bottom plates for Klein Split Keyboard

  • thumbnail-img
  • thumbnail-img


Hardware Components

  • Brass Stand-off spacer

    X 1

Goods

Tools, APP Software Used etc.

  • Kicad

    fenxiang

Story

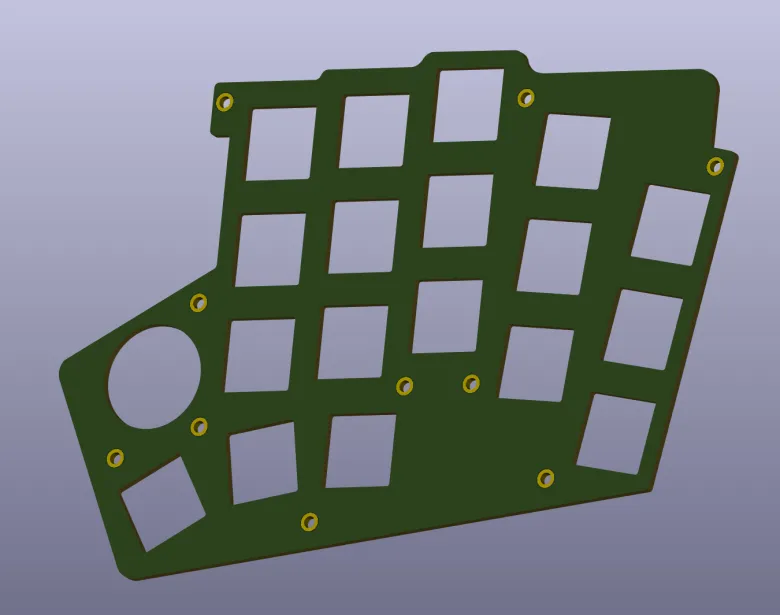

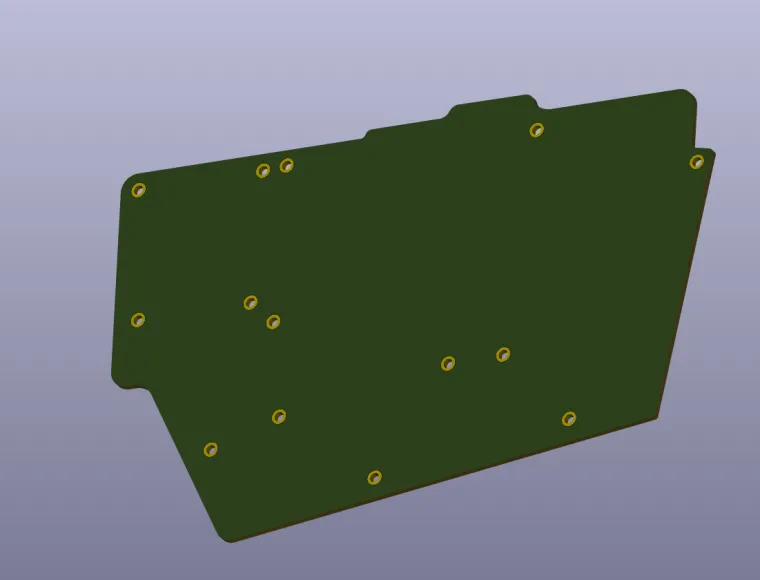

These are top and bottom FR4 plates for split keyboard - Klein. And can be frabricated as PCB on Elecrow and then assembled as an FR4 sandwitch case.

Code

  • Top & Bottom

    Top_and_Bottom_Gerber_143433062567b83f5a4bc25.zip
    Download(15)
Topic
View All
License: Attribution-MIT License
