Rudolph_V2 designed by Rick P

Rudolph_V2 designed by Rick P

  • thumbnail-img


Story

Introduction

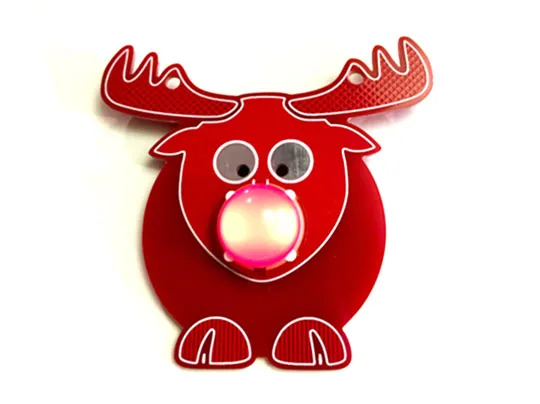

Red is used as the main color, and the design includes LED lights or other luminous elements to simulate the glowing effect of the nose.

Great! Create new ways to celebrate by combining holiday elements with modern electronic technology!

—————————————————————

The parts list include:

1x Lite-On LTJ-811HR (LED)

1x Line BAT-HLD-001 (Battery holder)

6x 100Ohm 0805 SMD Resistor

——————————————————————

This project is a repost. Designed by Rick P

PCB manufactured by Elecrow

Schematic and Layout

Rudolph_V2 designed by Rick P
