Raspberry PI 5 Case with HDMI Adapter Card

A case for your Raspberry PI 5, NVMe M.2 Base hat, and HDMI Adapter Board.

Raspberry PI 5 Case with HDMI Adapter Card

  • thumbnail-img
  • thumbnail-img


Hardware Components

  • Raspberry PI 5 HDMI Adapter Board

    Waveshare
    X 1 fenxiang
  • M2.6 Allen Hex Self Tapping Screws

    HH Fasteners
    X 1 fenxiang

Story

This case is for a Raspberry PI 5, NVMe M.2 Base hat, and HDMI Adapter Board.  Providing two power supply support methods and dual 4K Outputs. Uses the Micro HDMI-compatible To HDMI-compatible Adapter Board and NVMe Base hat with a Raspberry PI 5.

Using the PCIe connector, the NVMe Base brings high-speed storage to Raspberry Pi 5 by utilizing an NVMe disk instead of the microSD card to improve disk performance.

Place the reset button into the back of the bottom case before securing the Raspberry Pi with NVMe Base hat and HDMI-compatible Adapter Board to the case.  Used four (4) M2.6 Allen Hex Self Tapping Screws to secure the HDMI Adapter Board to the bottom.

  • Supports Raspberry Pi 5 Dual 4K Outputs
  • Converts Micro HDMI Interfaces To HDMI Female Ports For Easier Connection
  • Supports Power Supply Via Type-C Port (front) Or Screw Terminal (back)



board layout for Pi 5 case

Schematic and Layout
  • case bottom with hardware installed

    Download(2)
  • pi5 adapter board HDMI

    Download(2)
  • HDMI Adapter Board Features

    Download(1)
CAD-Custom parts and enclosures

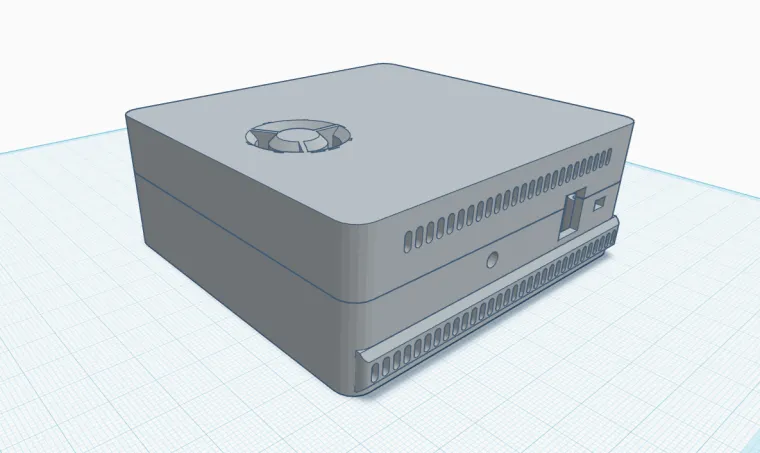

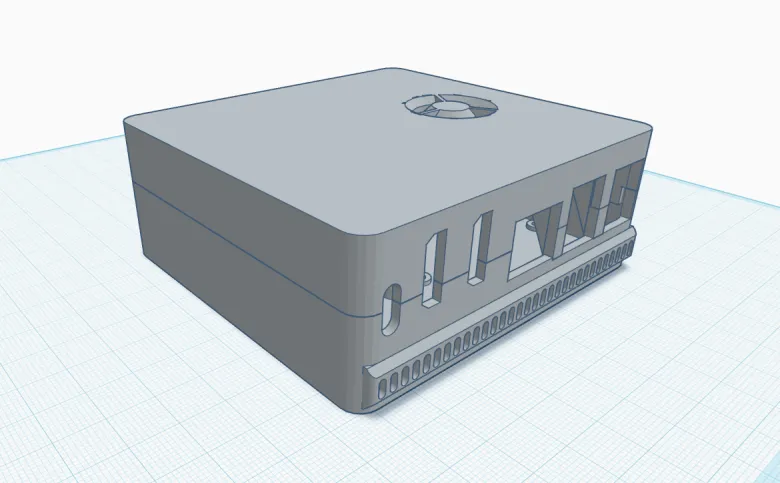

  • pi 5 nvme hdmi complete case

    pi-5-nvme-hdmi_68342297667e189394094f.stl
    Download(3)
  • pi 5 nvme hdmi case top

    pi-5-nvme-hdmi-top_100964737567e1899970125.stl
    Download(3)
  • pi 5 nvme hdmi case bottom

    pi-5-nvme-hdmi-bottom_5849106067e189c3bcc7b.stl
    Download(1)
  • PI 5 NVMe HDMI - Reset Button Rounded

    PI_5_NVMe_HDMI_-_Reset_Button_Rounded_200198120267e189e85ecf4.stl
    Download(1)
