Raspberry pi 4B case for ELECROW 3.5 Monitor

Raspberry pi 4B case for ELECROW 3.5 Monitor

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

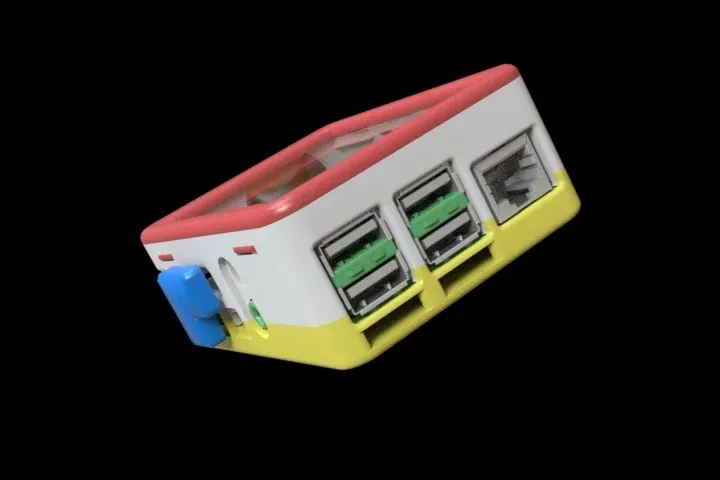

Raspberry Pi Case for ELECROW 3.5 monitor and other monitors

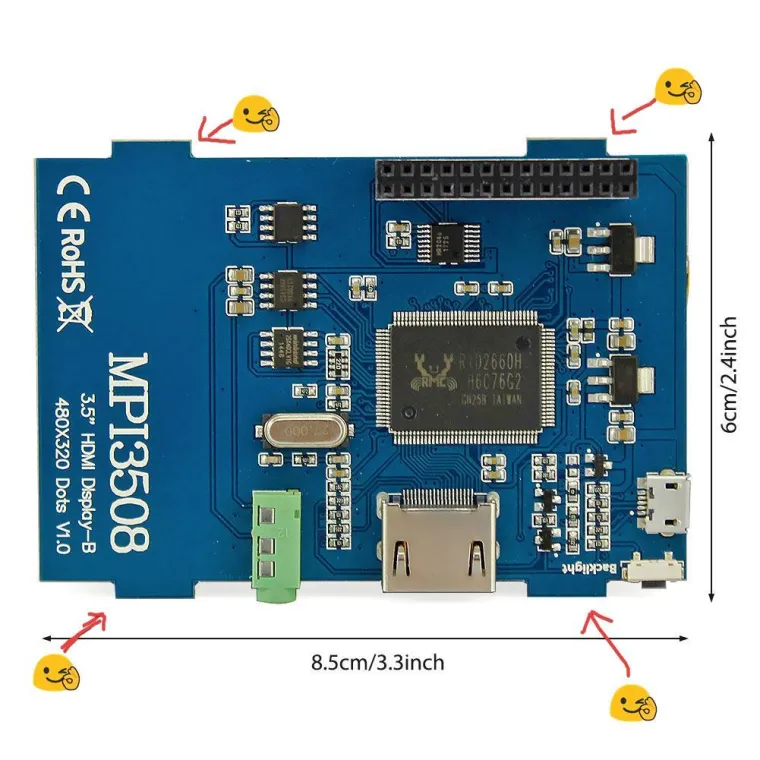

When purchasing an ELECROW monitor, please select one with the same shape by referring to the image.

If the monitor size matches, it may be possible to use it without tabs from other companies, but this has not been confirmed.

You can download the STL file here: https://www.thingiverse.com/thing:4657520

February 7, 2021 Update

Compaction of fan position

Optimization of air duct

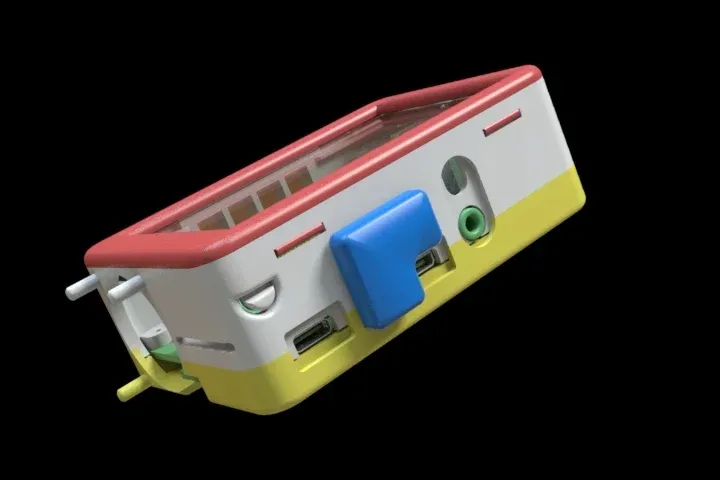

Position and shape of audio plug

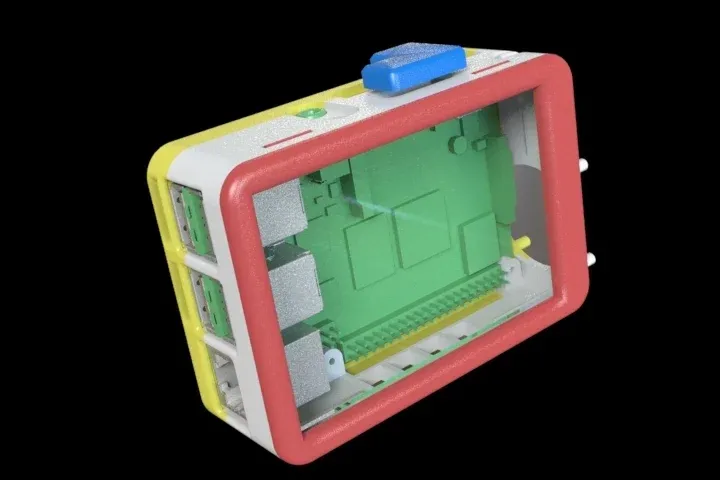

Addition of parts to support the monitor

Addition of HDMI terminal cover

Addition of monitor altitude switch



File updates

Body v1.5

Bottom v1.5.stl

Body fanless v1.5.stl

Bottom fanless v1.5.stl



Additional files

HDMI Cap v1.stl



Required Parts

Raspberry 4B x1

M2x8 x4

3010 FAN x1

Elecrow 3.5" monitor x1
