Project #15: Environment – GPS – Mk27

https://www.donluc.com/?p=4320

https://youtu.be/VzbtMqUvcMw

https://learn.dfrobot.com/makelog-314923.html

#DonLucElectronics #DonLuc #Arduino #RTC #EEPROM #DHT11 #ASM #Display #Elecrow #Project #Patreon #Electronics #Microcontrollers #IoT #Fritzing #Programming #Consultant

Crowtail - GPS

This Crowtail - GPS module is a cost-efficient and field-programmable gadget armed with a NEO-6M-0-001 and serial communication configuration. It features 55 channels, and a GPS L1 C/A code receiver. The sensitivity of tracking and acquisition both reach up to -161dBm, making it a great choice for personal navigation projects and location services, as well as an outstanding one among products of the same price class.

-Input Voltage: 5 Volt
-Supports NMEA and U-Blox Binary
-Low power consumption
-Baud rates configurable

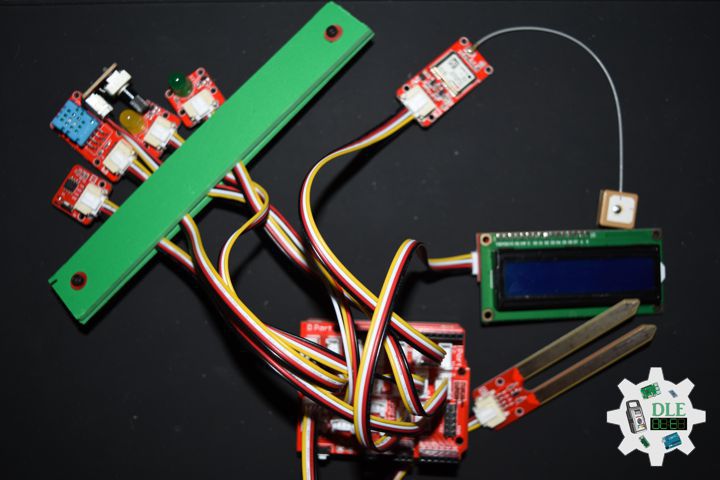

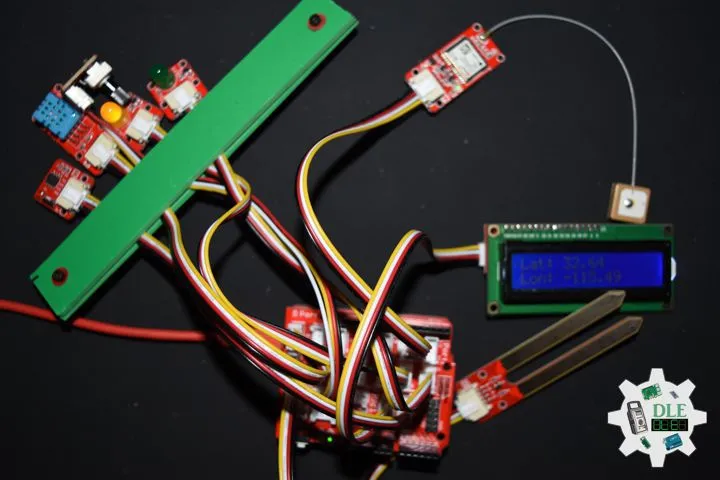

DL2502Mk04

1 x Crowduino Uno - SD
1 x Crowtail - Base Shield
1 x Crowtail - GPS
1 x Crowtail - RTC 2.0
1 x Crowtail - Temperature and Humidity Sensor 2.0
1 x Crowtail - Rotary Angle Sensor 2.0
1 x Crowtail - Moisture Sensor 2.0
1 x Crowtail - I2C LCD
1 x Crowtail - LED(Green)
1 x Crowtail - LED(Yellow)
1 x USB Battery Pack
1 x USB Mini-B Cable

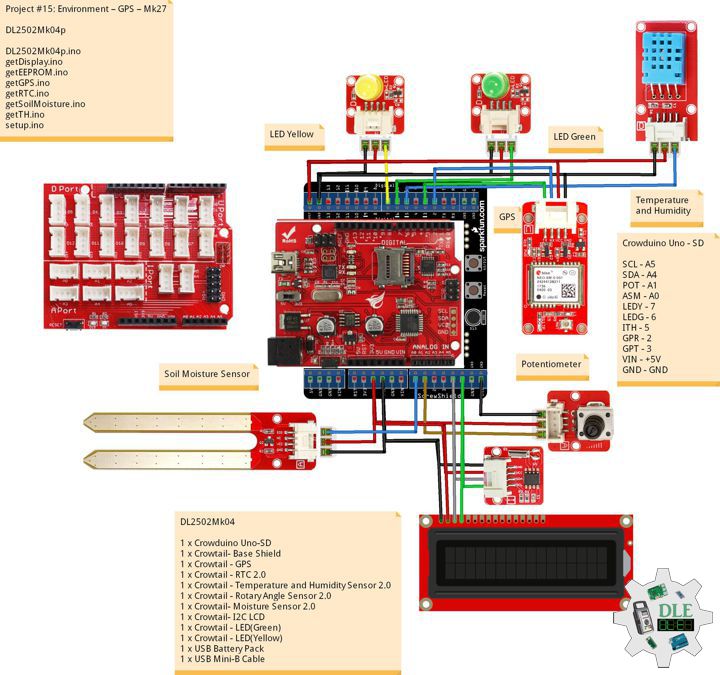

Crowduino Uno - SD

SCL - A5
SDA - A4
POT - A1
ASM - A0
LEDY - 7
LEDG - 6
ITH - 5
GPR - 2
GPT - 3
VIN - +5V
GND - GND

DL2502Mk04p

DL2502Mk04p.ino
getDisplay.ino
getEEPROM.ino
getGPS.ino
getRTC.ino
getSoilMoisture.ino
getTH.ino
setup.ino
