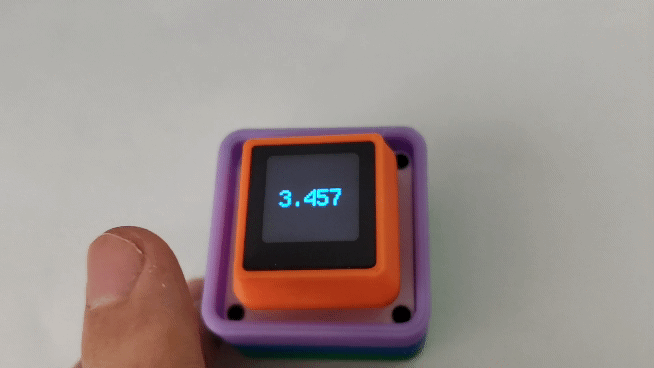

Programmable macro keyboard with display - MagiClick v2.3c

powered by circuitpython

Programmable macro keyboard  with display - MagiClick v2.3c

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

MagiClick S3 - 带显示功能的机械宏键盘 |Hackaday.io

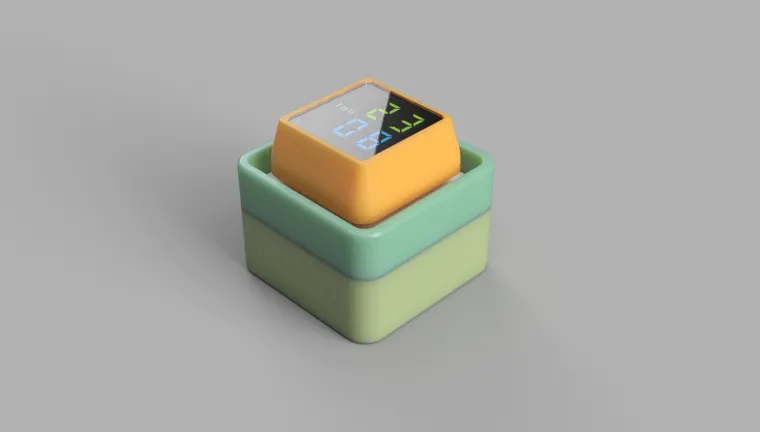

随着 3D 打印的普及和广泛使用,我重新设计了外观,以最大限度地减少打印过程中不必要的支撑,使其更易于打印。配色方案可以自由定制,以呈现更好的效果。

我们计划支持两种不同形状的屏幕:矩形和圆形。

对于代码,我们计划从 CircuitPython 9.x 开始更新,同时还支持其他框架,例如 Arduino 和 MicroPython。

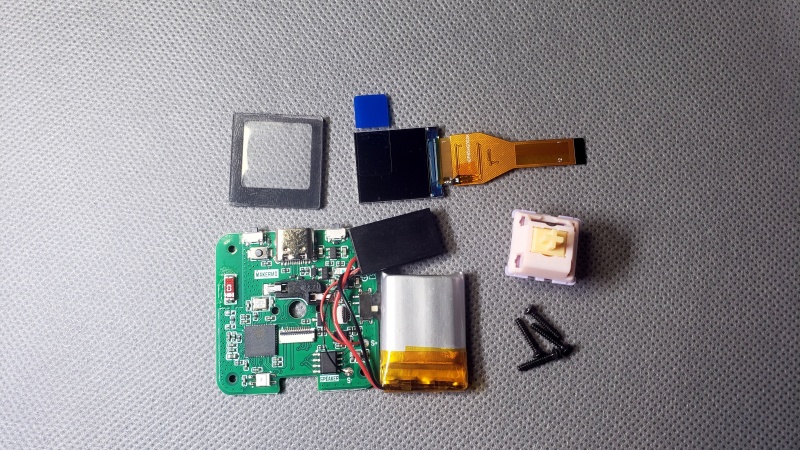

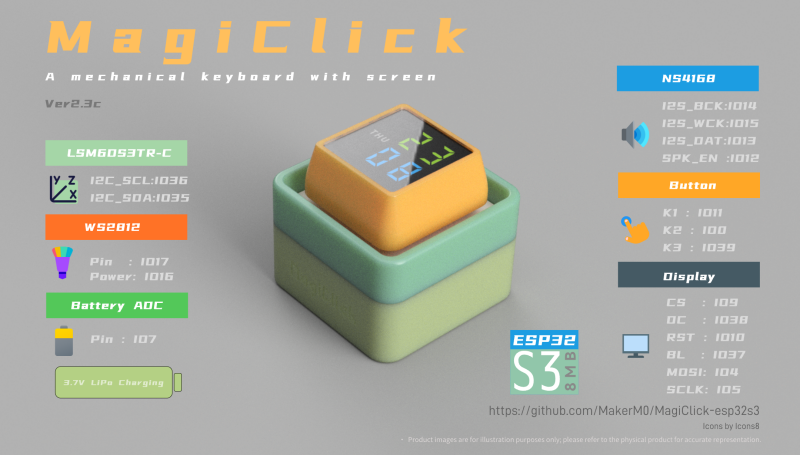

为了便于生产和组装,通过去除冗余组件并将 PCB 数量减少到只有一个,简化了电路板。此外,还进行了一些 circuit 修改,但相关引脚仍然与以前的设计兼容。



额外:

电池:602025

显示器:0.85' TFT (驱动器:NV3023)

面板:v2.3

3D 打印:STL

购买















Code
  • https://github.com/MakerM0/MagiClick-S3-Single
    View

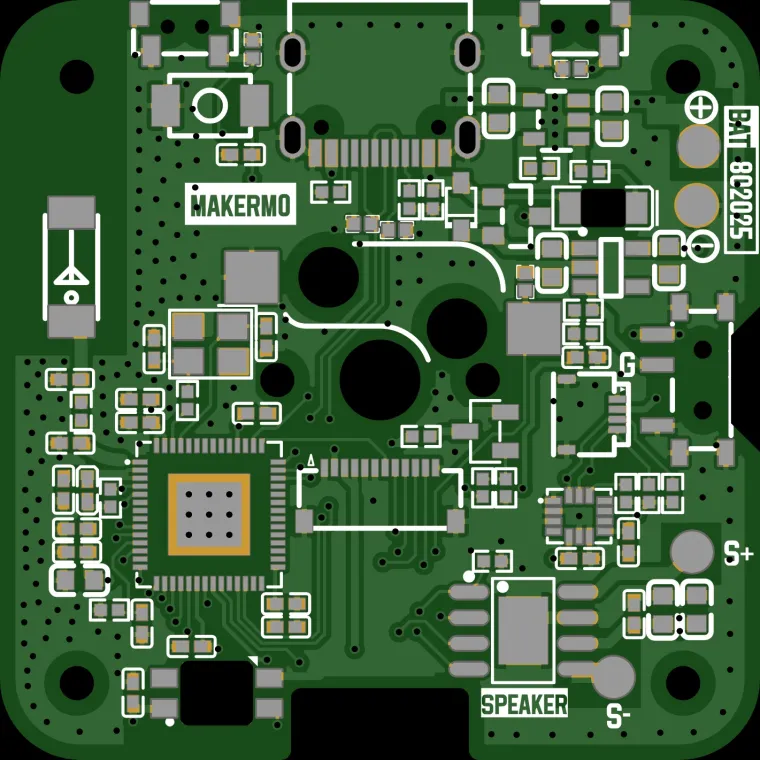

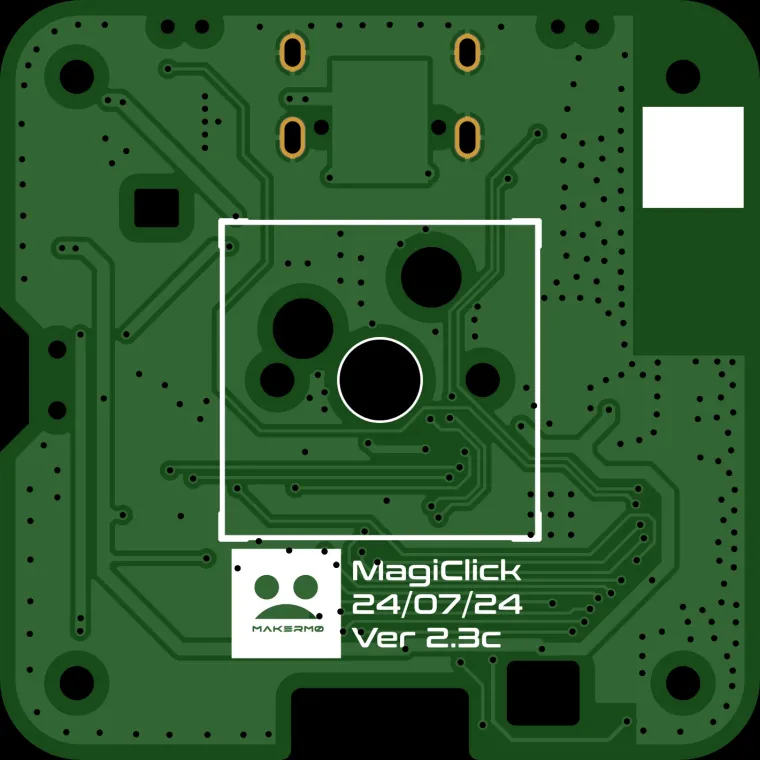

Schematic and Layout
CAD-Custom parts and enclosures

Programmable macro keyboard with display - MagiClick v2.3c

powered by circuitpython

584

4
1
14
