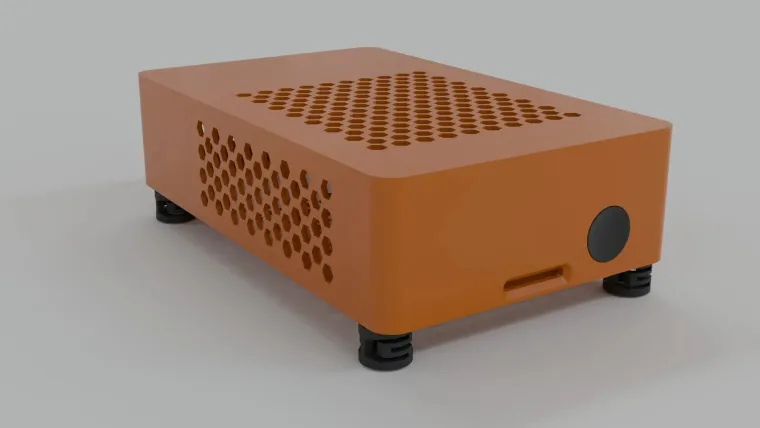

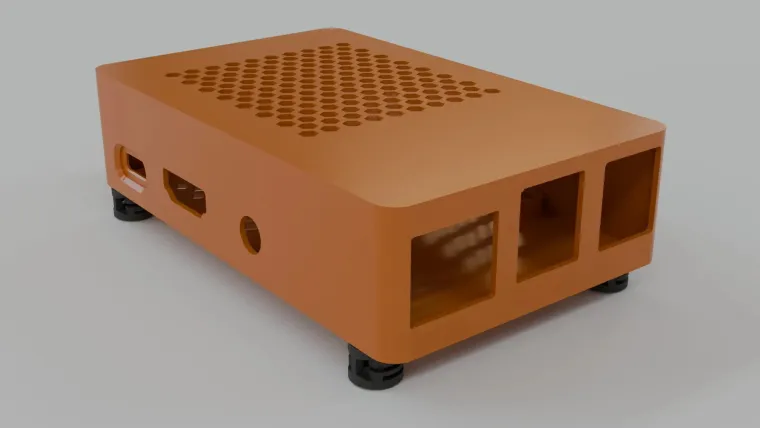

Orange PI-3B printable case

Usable small case for Orange PI 3B board

Orange PI-3B printable case

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Plasticity 3D

    Plasticity 3D

Story

As owner of Orange PI-3B board i design small and usable case.

This is the firs version.

Materials used:

PLA/PETG (around 20g)plastic for the case

TPU (1g) for the stands (less vibrations)

4 x M3 bolts

CAD-Custom parts and enclosures
  • Orange PI-3B

    Orange_PI_3B_140698640967f19380ef768.stp
    Download(3)
