Mini Bench-scale

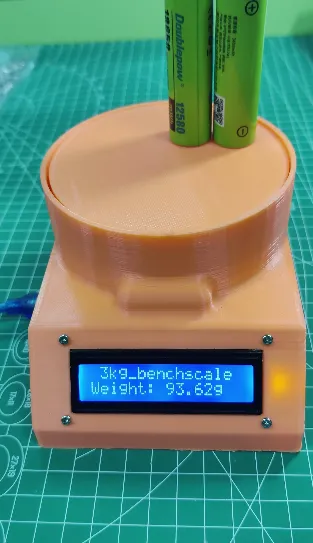

Using a weighing sensor and 3D printing to create a mini scale.

Mini Bench-scale

  • thumbnail-img


Story

Supplies

  • Platform scale program and library files.

  • Step 1: 3D Design

    第 1 步：3D 设计
    • Design the size of the housing according to the size of the weighing sensor.

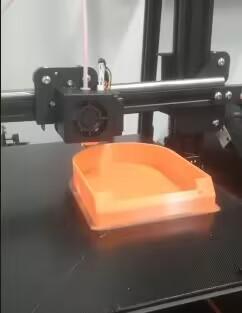

    • It's printed on a 3D printer

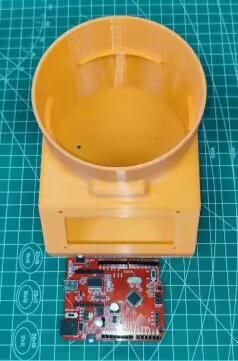

    • Step 2: Assemble

      第 2 步：组装
      第 2 步：组装
      第 2 步：组装
      第 2 步：组装
      3 More Images

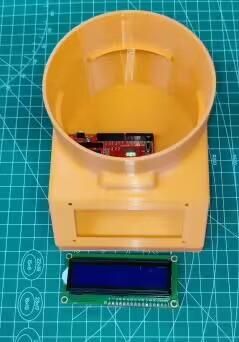

      • Install the printed module and sensor



      Step 3: Debugging

      第三步：调试

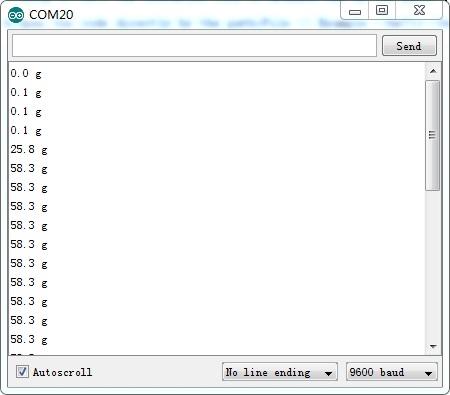

      Download the program to the arduino,

      Start the program and put a 100-gram weight on it to see if it's accurate?

      Step 4: Modifying Library Files

      第四步：修改库文件
      第四步：修改库文件
      • Open the hx711.cpp file
      • Pull to the last "float Hx711::getGram()" position

      Modify the parameters in the red circle, adjust them appropriately, and then download and run the program to see if it is accurate.

      • Debug several times until it is accurate
Topic
View All
License: Attribution-ShareAlike (CC BY-SA)

Mini Bench-scale

Using a weighing sensor and 3D printing to create a mini scale.
