microKit09 MK2

Recreation of a 1983 MC6809 single board computer

microKit09 MK2

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

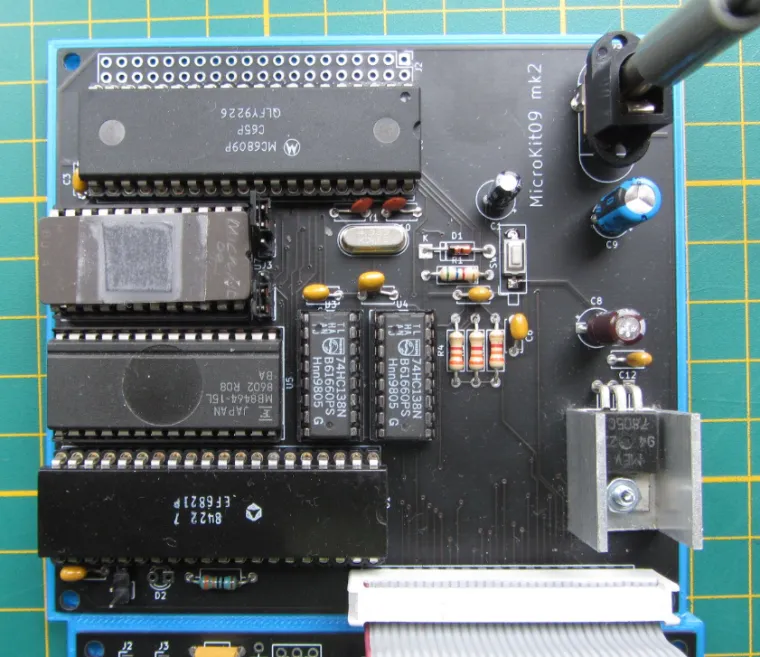

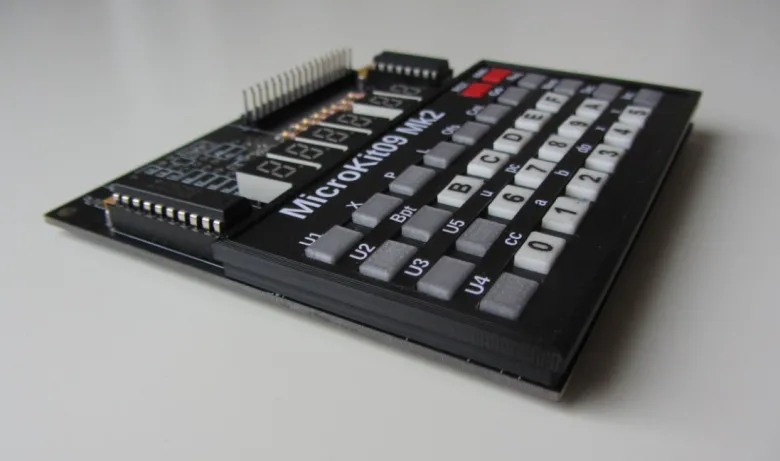

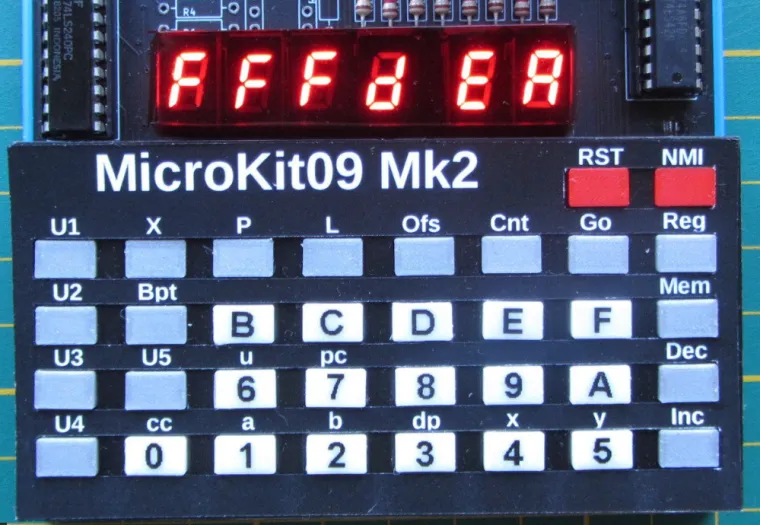

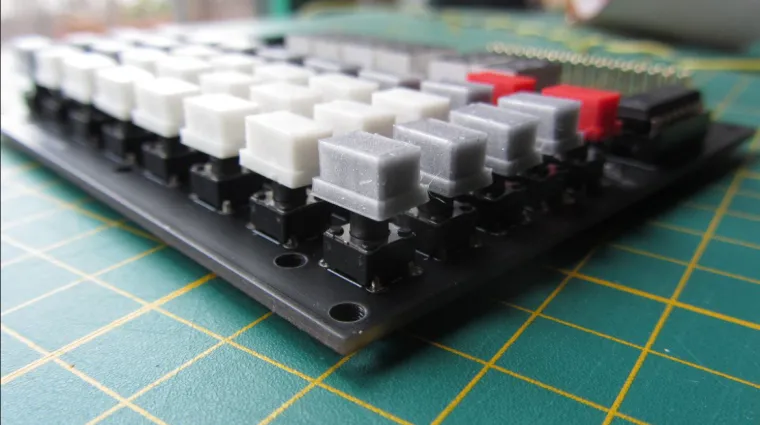

In several 1983 editions of the French computer magazine 'Led' a 6809 single board computer was published, supporting a 6-digit, 7-segment Led display and 34 keys. This is a recreation, in a more compact form. The keyboard style is modelled after the Multitech Micro-Professor MPF-1B.



The boards turned out not perfect, but workable. Waiting for updated PCBs, including the ACIA/PTM expansion.



The goal of the project is not to run Basic, Flex or OS-9, but getting familiar with the 6809 architecture and instruction set.



More information can be found here: http://electrickery.nl/comp/microKit09/.



There is also a git repo: https://github.com/electrickery/MicroKit09MK2. Here the updates to the firmware, boards and 3D-printed parts will be stored.



This project was reposted with the permission of the author. If you are interested in this project and want to know more, Please check this article: microKit09 MK2 | Hackaday.io

And if you want to explore more projects, please follow the author: fjkraan (Hackaday). He has many wonderful projects and is an excellent maker. Enjoy it! :)
