StanleyProjects

Published: Sep 30,2024

LedBoxV3 | StanleyProjects.com

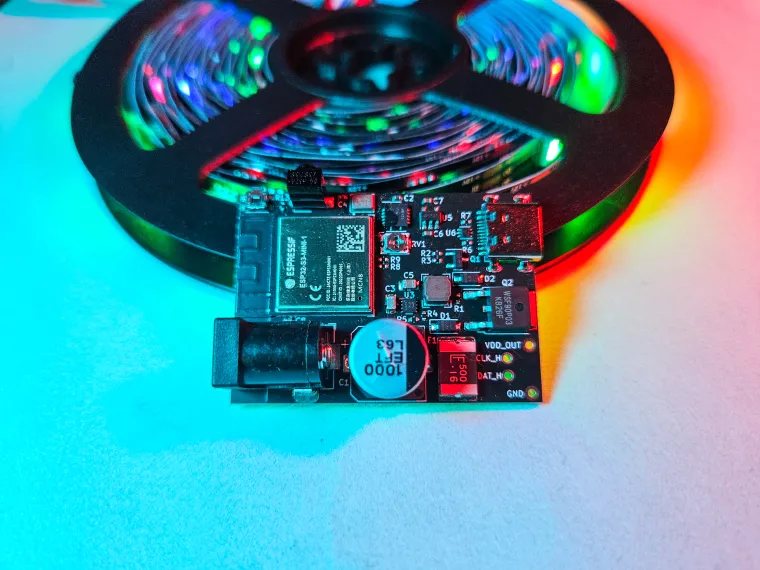

LedBox V3 is an ultimate, sound-reactive LED controller, compatible with 5-12V addressable LED strips (WS281x, SK6812, etc.), supporting 3-(data) and 4-(data/clock) wire signal protocols. Whether you prefer a plug-and-play solution, or you are a maker that loves tinkering with hardware, it offers the best of both worlds.

Attribution-ShareAlike (CC BY-SA)

Hardware Components

EEEFT1E102UP

X 1
CC0402KRX7R9BB104

X 1
CL21A106KAYNNNE

X 1
CL21A226MQQNNNF

X 1
LDK105CBJ106MVLF

X 1
CC0402KRX7R7BB104

X 1
1N5819W

X 1
2920L500/16MR

X 1
DC-005-5A-2.0

X 1
TYPE-C-31-M-14

X 1
CR4018-2R2M

X 1
ICS-43434

X 1
BSS138

X 1
WSF90P03

X 1
RC0402FR-0710KL

X 1
0402WGF1001TCE

X 1
RT0402BRD0775KL

X 1
RT0402BRD0724KL

X 1
AC0402FR-075K1L

X 1
RC0402JR-0727RL

X 1
VG039NCHXTB201

X 1
EVQP7C01P

X 1
ESP32-S3-MINI-1

X 1
SN74AHCT125RGYR

X 1
TPS62160DSG

X 1
TSOP38238

X 1
HT7550-7

X 1
USBLC6-2P6

X 1

Story

Introduction

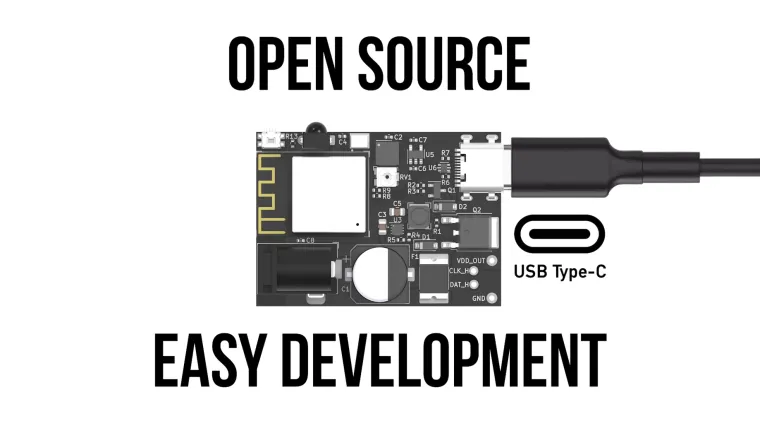

Powered by the cutting-edge ESP32-S3 running the powerful dual-core Xtensa LX7 with 8MB of flash, the LedBox V3 is a game-changer in the realm of addressable LED control modules. Its future-proof design ensures compatibility with even the most complex operations such as real-time sound-reactive FFT-based 2D matrix animations. Additionally, it's native USB interface facilitates effortless prototyping.

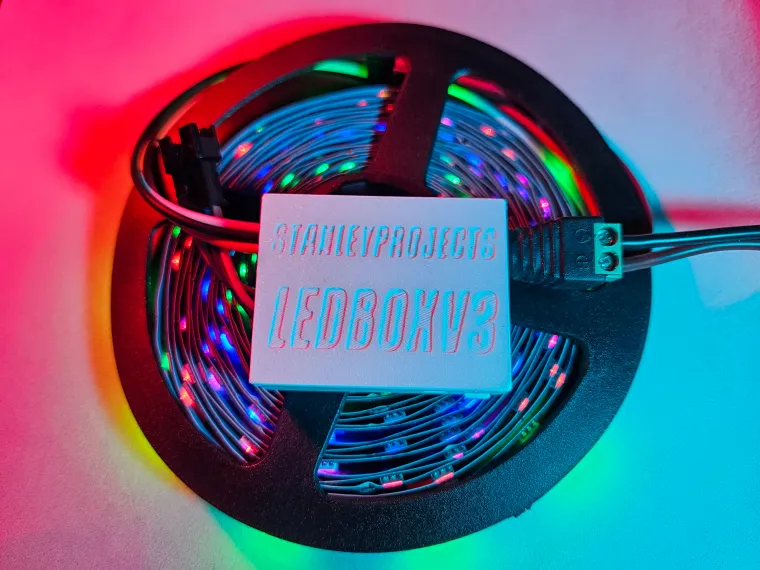

Purchased module comes with the latest version of WLED-MM, and a plastic case.

Specification

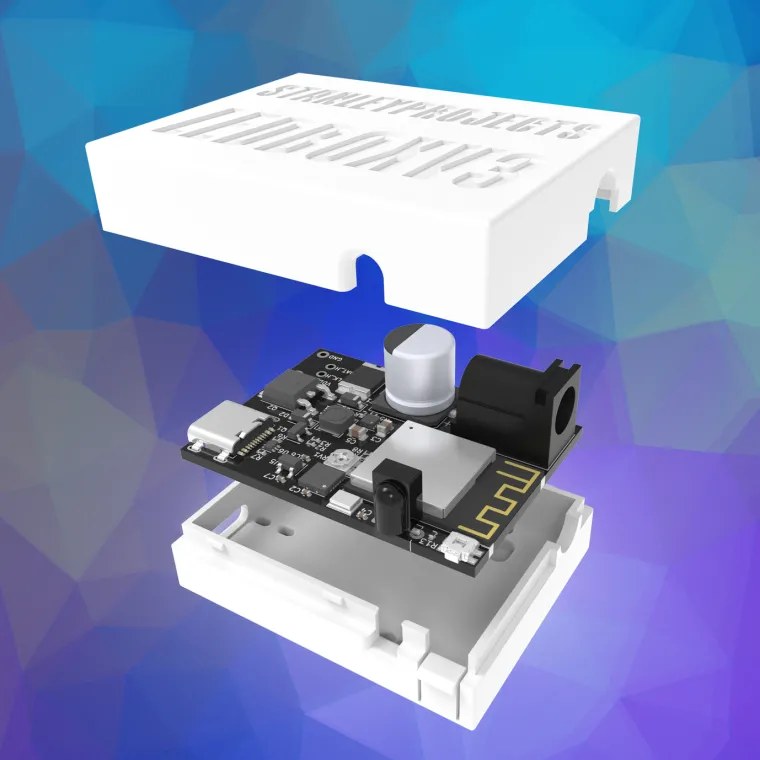

The module has a comprehensive array of features including a dedicated 3.3V step-down converter, signal line level-shifter, digital MEMS microphone, side button, 32kHz IR receiver, 10A safety resettable fuse, 1000µF buffer capacitor, and a variable impedance matching resistor. These features ensure maximum functionality and compatibility with various LED strips, all neatly packaged within a compact and 3D printable enclosure.
