Fade LED When Dark

Small night lamp with NE555 and one LED,

Fade LED When Dark

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • NE555P

    X 1 fenxiang
  • 2N3904

    X 1 fenxiang

Tools, APP Software Used etc.

  • Kicad

Story

Fade LED When Dark

Circuit presentation

I think most of us use a source of light when we can`t see anything around us, so I present a small circuit and also it can be used for a funny project, like a night lamp. I have modified the author`s schematic because I want the LED to glow when it`s dark in a room.

Please try it, and more then that have some fun with it !

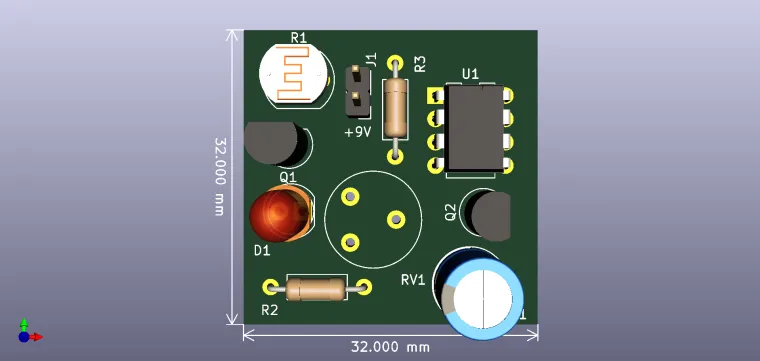

Note: the 3D view is just for aspect !

The reference source: https://www.iot-experiments.com/power-on-a-circuit-when-the-lights-are-on/
