Elecrow Christmas Tree by Gerrit Maus

Elecrow Christmas Tree by Gerrit Maus

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

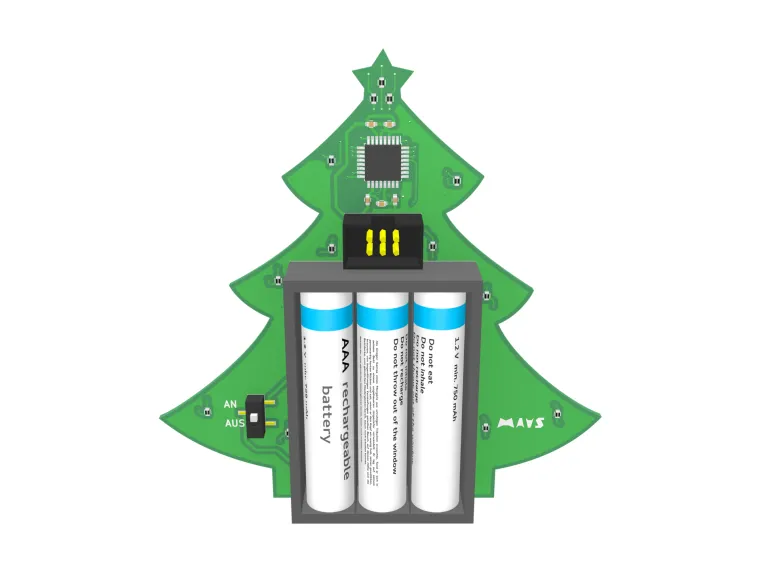

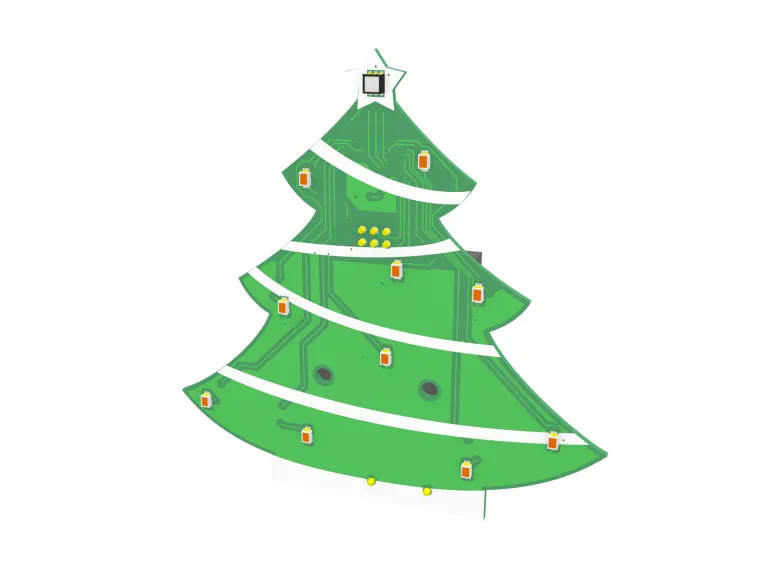

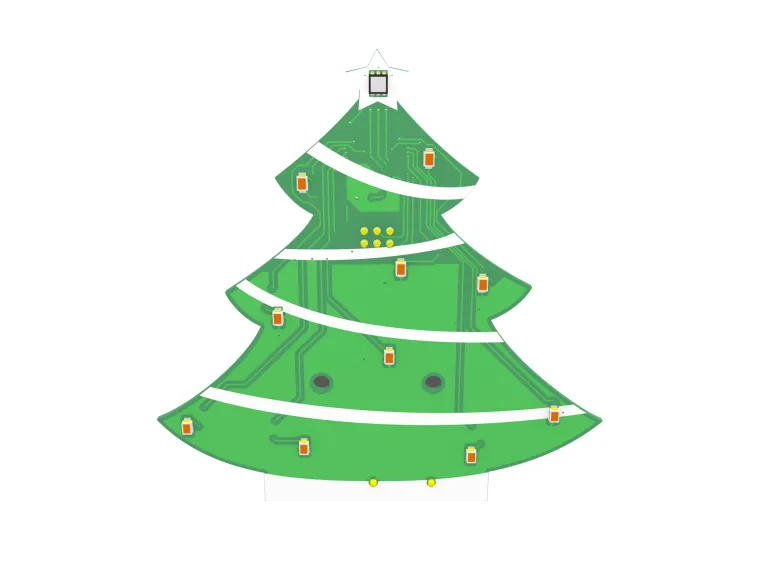

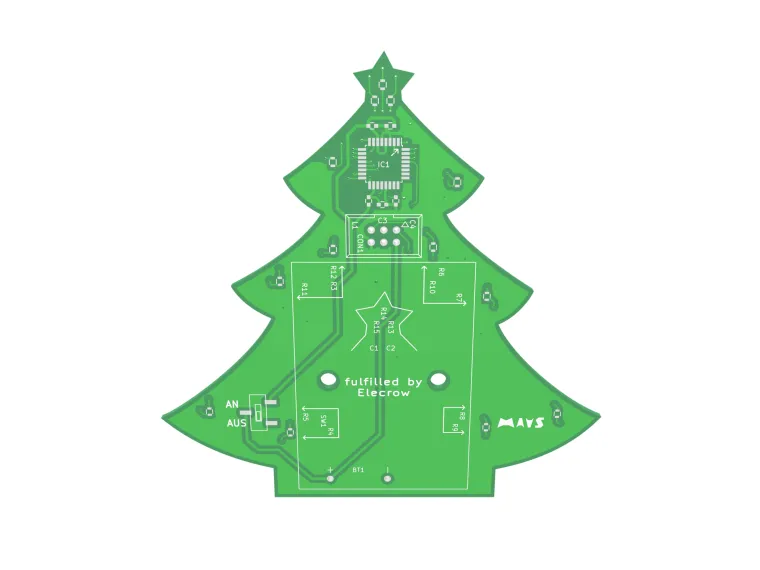

This Christmas tree is a simple circuit with some LEDs around an Atmel ATMEGA328P with the possibility to measure the battery voltage. All LED currents are planned to be very low so all LEDs will be driven by the microcontroller itself. In the download section you will find the schematic (pdf) and all Gerber files.

Bill of Materials

Reference Value Footprint Mouser part number
IC1 ATMEGA328P-A TQFP-32
C4 100nF 0603
C3 100nF 0603
C2 100nF 0603
C1 100nF 0603
L1 10µH 0603
BT1 3 x AAA   534-2479
SW1 SPDT   611-JS102011SCQN
R3 169R 0603
R4 169R 0603
R5 169R 0603
R6 169R 0603
R7 169R 0603
R8 169R 0603
R9 169R 0603
R10 169R 0603
R11 169R 0603
R12 169R 0603
R13 249R 0603
R14 178R 0603
R15 169R 0603
D1 Standard LED PLLC-2
D2 Standard LED PLLC-2
D3 Standard LED PLLC-2
D4 Standard LED PLLC-2
D5 Standard LED PLLC-2
D6 Standard LED PLLC-2
D7 Standard LED PLLC-2
D8 Standard LED PLLC-2
D9 Standard LED PLLC-2
D10 Standard LED PLLC-2
D11 RGB LED PLLC-6
CON1 6 positions 2x3 box header 710-61200621621

Designed by Gerrit Maus, PCB manufactured by Elecrow. Enjoy it!

Repost from this article: Visit the designer's website for more details.

Code
  • Sourcecode (works, ugly, not very well documented)

    elecrow_christmas_tree_sourcecode_1444627577675fcf0c3451c.zip
    Download(1)
Schematic and Layout
  • Schematic

    elecrow_christmas_tree_schematic_2082130375675fcedb552e9.pdf
    Download(1)
