Double voltage source

Double voltage source +15V / -15V and +5V / -5V stabilized

Double voltage source

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Kicad

Story

Double voltage source



Circuit presentation



Double voltage source + 15V / -15V and + 5V / -5V stabilized



This circuit offers a set of two double voltages, at a maximum current of 1A. The 7815 and 7915 integrated circuits can be replaced with 7812 and 7912, or even 7809 and 7909, resulting in a different voltage output. 7805 and 7905 series integrated circuits are also used for positive and negative voltage.

For this type of circuit you should use a 2x 15V toroidal transformer at a current of 1-1.5A.



Bill of materials available in the download section, and the schematic as well.

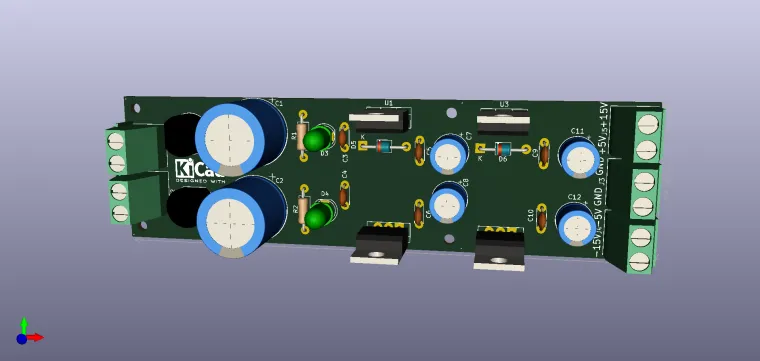

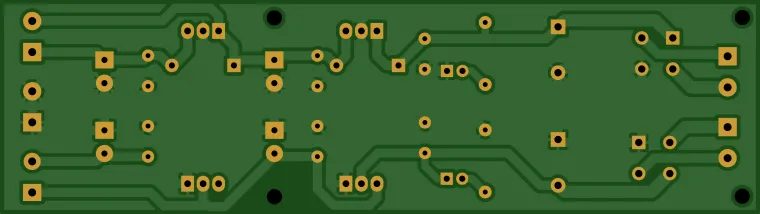

Schematic and Layout

Double voltage source

Double voltage source +15V / -15V and +5V / -5V stabilized
