Display stand for CrowPanel 7"

Display stand for CrowPanel 7" display with handle - use it on a table or as a handheld console.

Display stand for CrowPanel 7

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • OpenSCAD, a 3D modeling programming language

    Open Source

Story

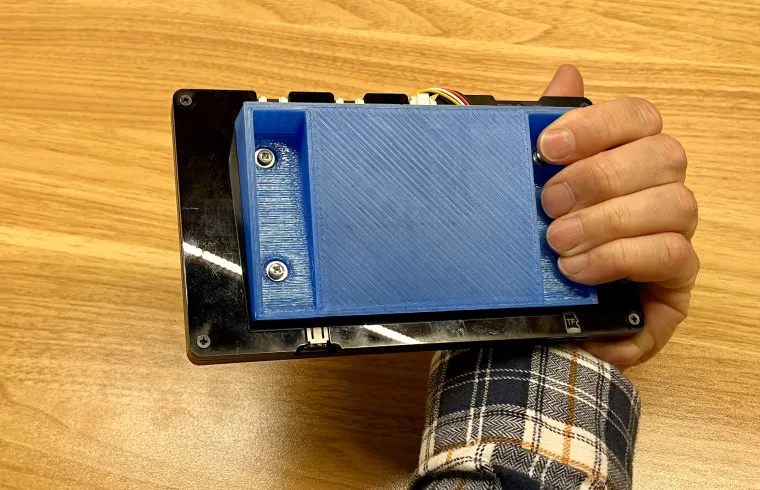

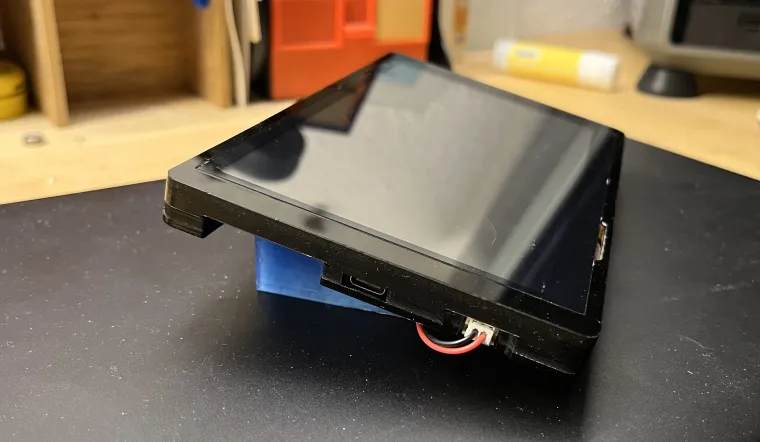

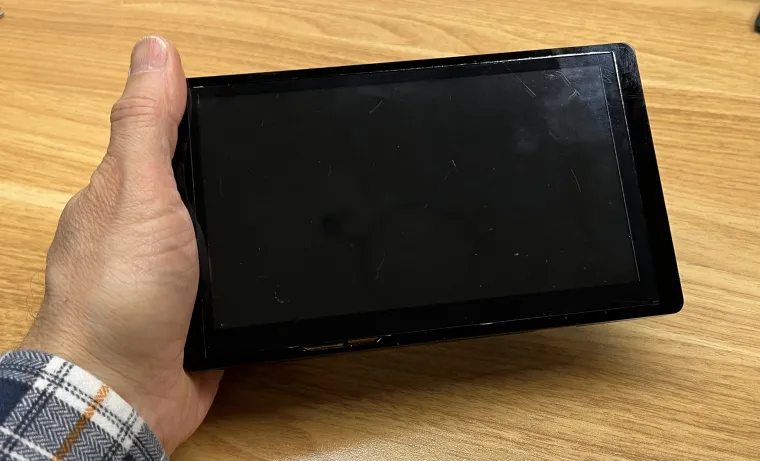

I created the display stand for the Elecrow CrowPanel 7" version to tilt the display to a workable angle when its placed on a table. I added handles on the back that allows you to hold the display in one hand and thereby enabling it to be used it as a console as well.

The display stand screws using 4 pcs M3x8mm to the back of the acrylic case that you can order together with the Elecrow 7" ESP Display. Base has room to hold both PCB for RJ12 or similar and a battery.

Link to display: https://www.elecrow.com/esp32-display-7-inch-hmi-display-rgb-tft-lcd-touch-screen-support-lvgl.html

Link to RJ12 PCB: FluidDial RJ12 Wiring Kit | Bart Dring

Should you want to customize the display stand it for a different purpose, check out the OpenSCAD source file from Thingiverse link below.



#crowpanel #displaycase #displaystand #fluidnc #handheld
