DCC accessory decoder for 16 Servos with LED indicators

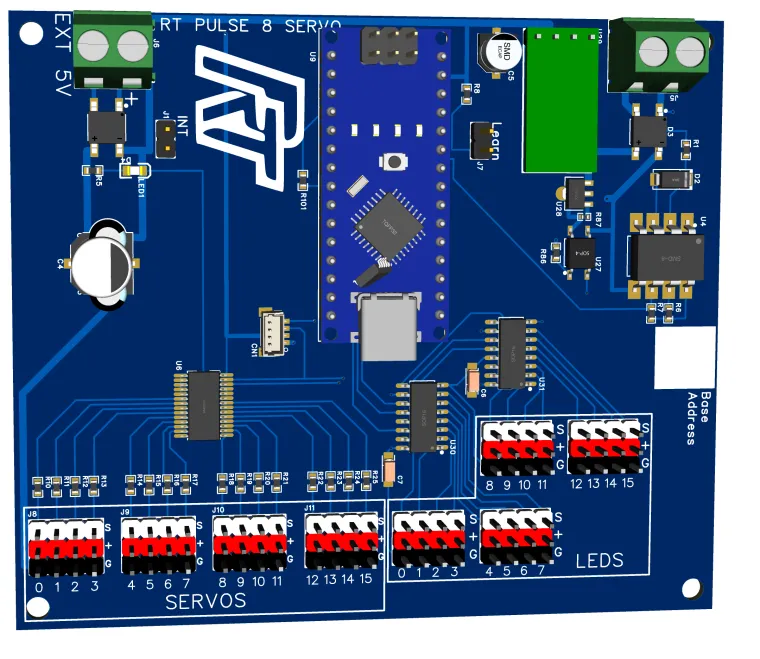

A single board arduino nano controlled DCC accessory decoder for control of upto 16 servos with led output indication.

ccc ccc
Copyright Info

Attribution-ShareAlike (CC BY-SA)

Read More⇒
  949
  15
  1
cover-img

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Platformio

    fenxiang

  • Easyeda pro

    fenxiang

Story

This is a DCC accessory decoder for model railroads.

It is able to control upto 16 servos.

Desigined for animations on model railroad layouts or to control turnouts.

The decoder also provides auxilary outputs to control leds for position indication if required.

The full operation manual is available here Operation Manual

The decoder can be totally powered by the DCC track or have a separate power supply for the servos and leds.
