3Plus v2 - A multifunctional MacroPad with display

3Plus v2 - A multifunctional MacroPad with display

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

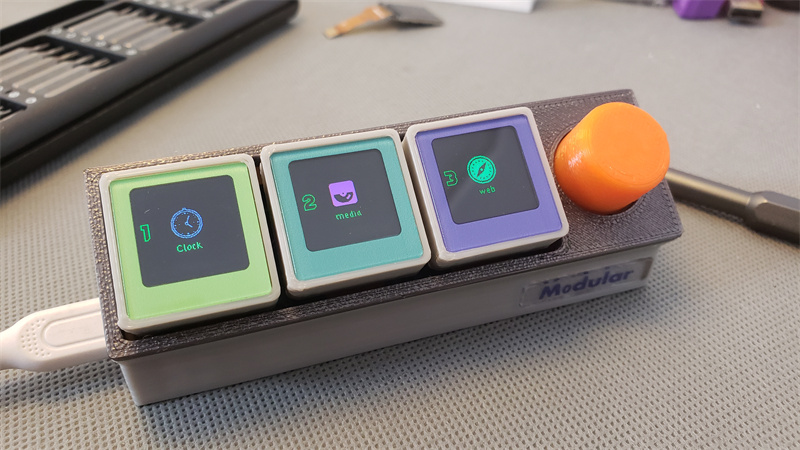

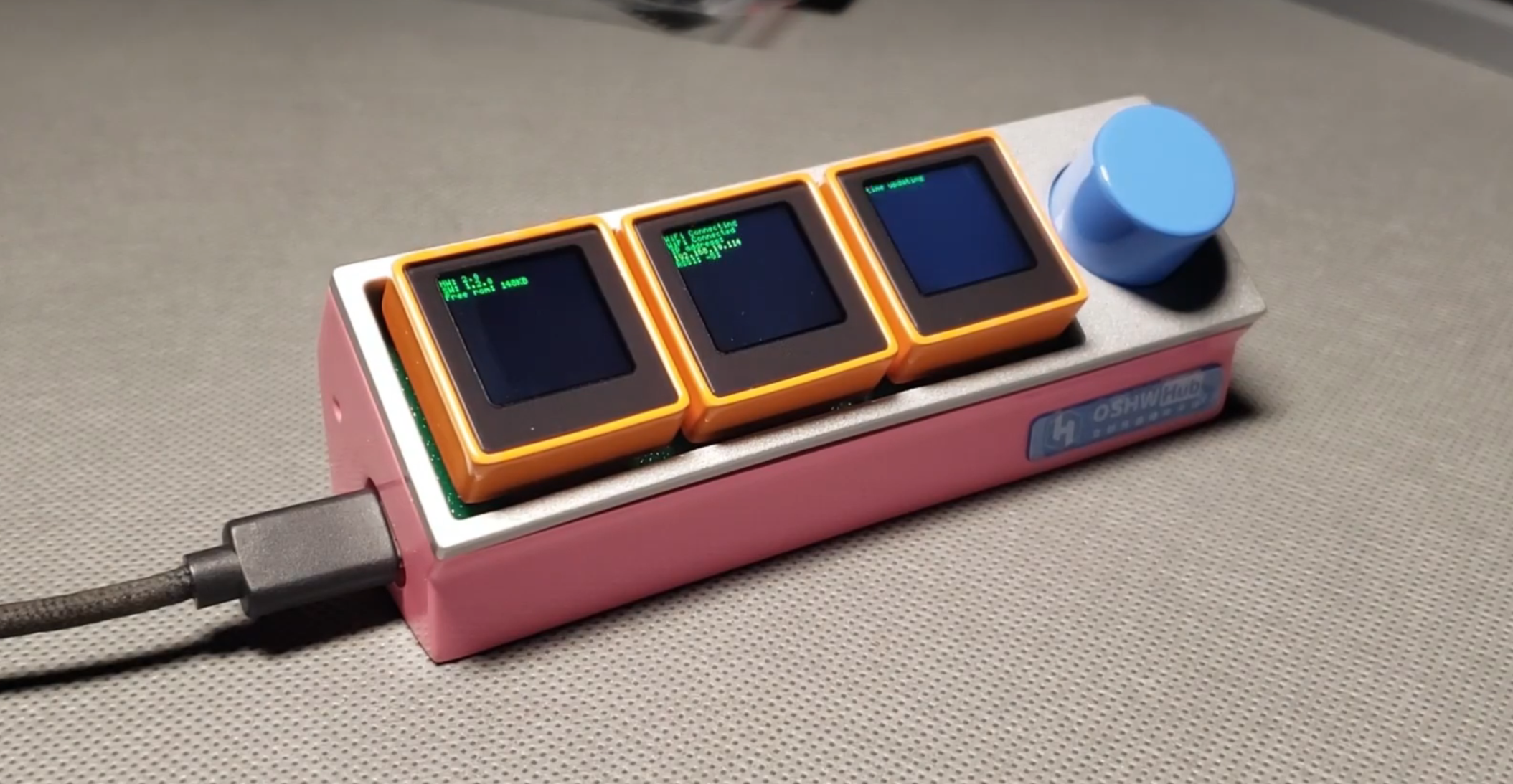

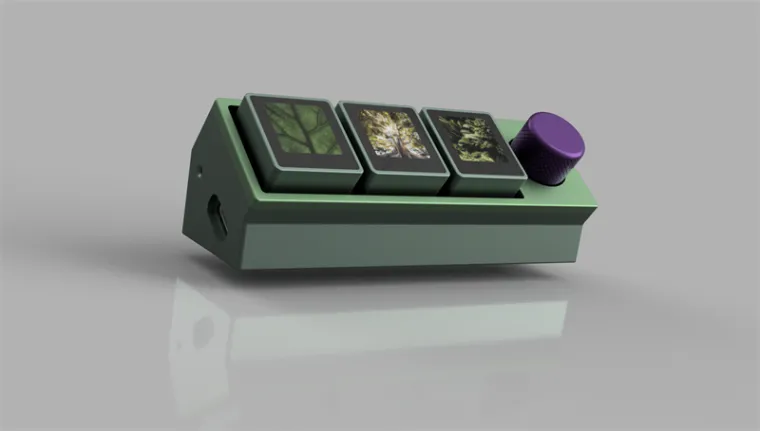

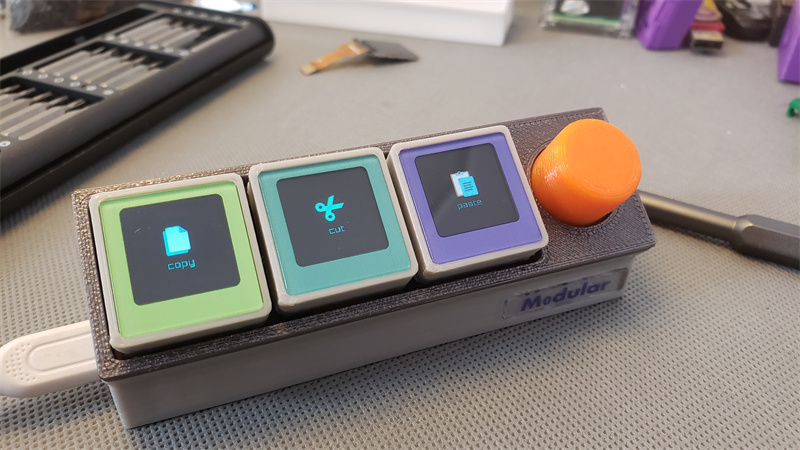

This is a multifunctional macro keyboard with a display, using mechanical switches. The V2 version mainly aims to address issues present in previous iterations:

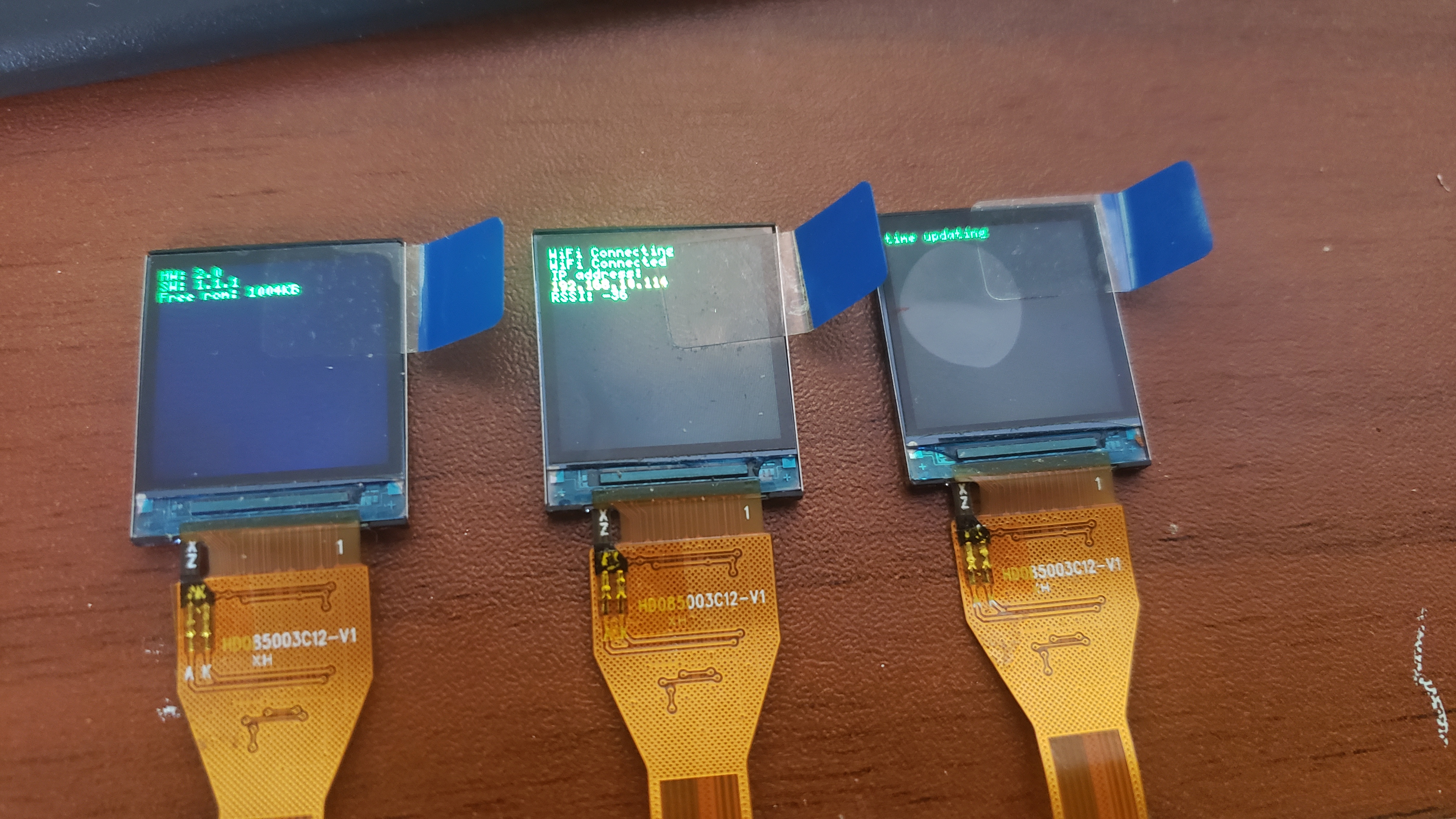

  • It adopts a 0.85-inch TFT color screen, replacing the original OLED to prevent image retention.
  • It reduces screen costs and procurement difficulties.
  • It decreases the number of prototypes needed; currently, only one PCB prototype is required.
  • It uses a 0603 package, which is solder-friendly.

PCB

thickness:1.6mm



3D printing



click here





NOTE

Selecting between the NS4168 and the MAX98357.







Code
  • https://github.com/MakerM0/3Plus_v2
    View
Schematic and Layout
  • https://github.com/MakerM0/3Plus_v2
    View
CAD-Custom parts and enclosures
