RS485Bridge with RJ45 for Epever

What is it?

RS485Bridge is a versatile RS485 to WiFi bridge, designed to seamlessly connect to your Renogy Charge Controller, Renogy Smart Lithium Battery, EPEVER charge controller, and even other RS485 devices via RJ45 or screw terminal. The device makes the data of these devices available over WiFi, enabling monitoring and control through multiple platforms. You can access real-time data through a robust web interface (also supported in Access Point mode), automatically upload data to [PVOutput](http://pvoutput.org), or send it to your local MQTT Broker.

This updated version features a QWIIC connector, which further expands its capabilities by allowing easy integration with additional sensors and devices.

Why did you make it?

I wanted a straightforward and efficient way to remotely monitor and control my Renogy charge controller, while also integrating its data into my home automation system via MQTT and uploading to [PVOutput](http://pvoutput.org). This solution ensures that I can always check up on my system, even when I'm away on vacation.

What makes it special?

This product is distinguished by its comprehensive feature set and ease of integration:

• Multi-Device Compatibility: Works with Renogy, EPEVER, and other RS485 devices.
• Flexible Data Access: Supports Home Assistant, MQTT, PVOutput, and a web interface (depends on device).
• Enhanced Control: Three open collector outputs for versatile automation tasks.
• Expandable: QWIIC connector for easy integration with additional sensors and devices.
• User-Friendly Interface: Real-time data updates, intuitive controls, and detailed system information.

What's included?

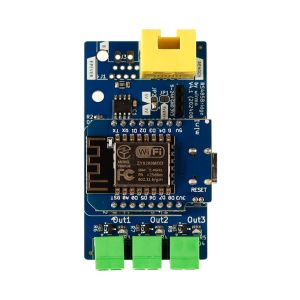

• 1x PCB with soldered SMD components
• 1x ESP8266 D1 Mini
• 1x MAX485 RS485 IC (SMD)
• 3-4x Capacitor (SMD)
• 8x Resistors (SMD)
• 4x LEDs (SMD)

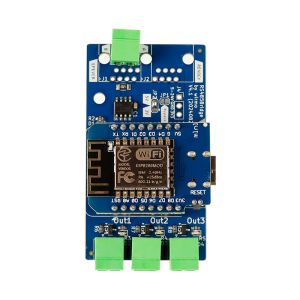

• 1x RJ45 connector or Screw Terminal
• 1x JST connector
• 1x Socket strips (for connecting Buck-Converter)
• 4x Terminal blocks
• 4x Terminal block receptacles
• 3x Transistors

Optional

• 1x Buck-Converter (fixed 3.3V)
• 1x 3D-printed case

What's not included?

• RJ45 cables (better sourced locally)

Further Information

Compatability

Please take a look at the compatability list found here before ordering. Also keep in mind that this is an open source project so some things might not work as expected.

Software

The device is shipped without preprogrammed software. To install it you can use the webinstaller and then follow the comissioning guide.

Disclaimer

Renogy, EPEVER and all other trademarks are the property of their respective owners. This device is a DIY project and is not officially endorsed by Renogy, EPEVER or others.
