Raspberry Pi5 Proto

Description

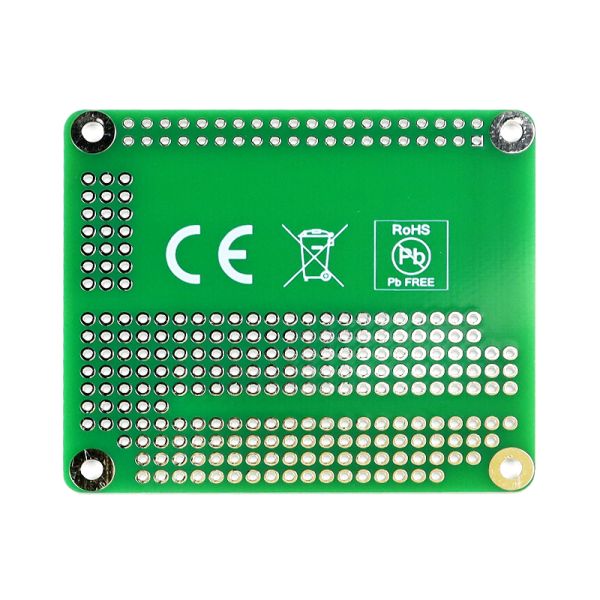

This is a RASPBERRY PI5 PROTO board with approx. dimension 66x56mm. The board has been specifically designed for the Raspberry Pi and is compatible with all of the mounting holes and larger 40 pin GPIO header found on standard versions of the Raspberry Pi including all variations of the Raspberry Pi A+/B+/2/3/3+/3A+/4 and Pi 5 models. There's also long power strips for +3V3, +5V0 and Ground connections to the Pi. For easy prototyping all 40 GPIO pins are labeled on the board. Pins have standard 2.54mm spacing, which it makes it easy to install standard DIP-format ICs and other components.

Feature

• Board design with 40-pin GPIO breakout
• Compatible with Raspberry Pi A+/B+/2/3/3+/3A+/4 and Pi 5 models
• Standard 2.54mm spacing
• 3V3, 5V0 and GND power strips
• Silk screen GPIO pin labels/names on board
• 4 x 2.75mm mounting holes
• RoHS Compliant
• Dimensions: approx. 66mm x 56mm x 1.6mm



Application

• prototyping
