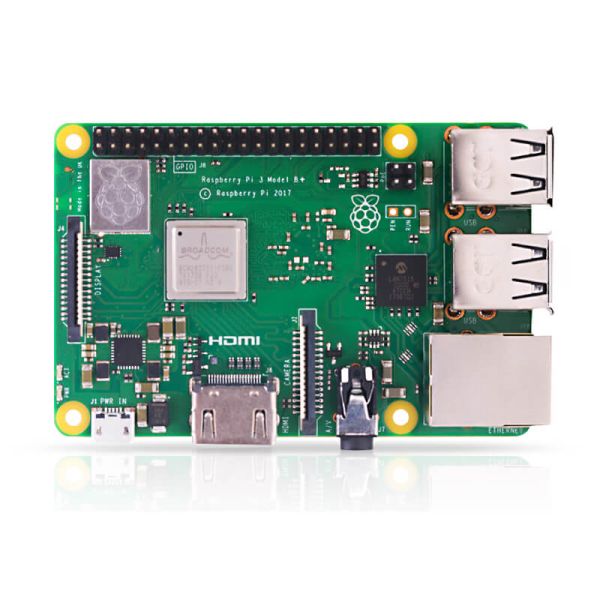

Raspberry Pi 3 Model B+
$40.70
Availability:
In stock
SKU
RPD07540B
Weight
75g
【Raspberry Pi 3B+】Supports Gigabit and PoE Ethernet, uses Broadcom BCM2837B0 Cortex-A53 (ARMv8) 64-bit SoC @1.4GHz processor, which is very suitable for hardware programming learning and maker projects.
【Wireless connection】Supports 2.4GHz and 5GHz WLAN, Bluetooth 4.2 and BLE. Built-in USB2.0 Gigabit Ethernet, convenient and fast network connection.
【Power supply】Supports 5V/2.5A DC power input and PoE power supply.
Description
The product in the Raspberry Pi 3 range Raspberry Pi 3B+ comes to provide you with the same Pi as before, but the new features are that it supports gigabit and PoE capable Ethernet, also better in overheating protection for the 64-bit processor. As we all know, Raspberry Pi is a small and affordable computer that you can use to learn to program. Four built-in USB ports on the Raspberry Pi 3B+ can provide enough connectivity for a mouse, keyboard, or anything else you want to connect with your Pi. In addition, the low-level peripherals on the Pi make it great for hardware hacking. The 0.1-inch spaced 40-pin GPIO header on the Raspberry Pi gives you access to 27 GPIO, UART, I2C, SPI, as well as 3.3 and 5V sources.
Features
-
Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @1.4GHz.
-
1GB LPDDR2 SDRAM.
-
2.4GHz and 5GHz IEEE802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE.
-
Gigabit Ethernet over USB2.0 (maximum throughput 300Mbps).
-
Extended 40-pin GPIO header.
-
Full-size HDMI-compatible interface.
-
4 USB 2.0 ports.
-
CSI camera port for connecting a Raspberry Pi camera.
-
DSI display port for connecting as Raspberry Pi touchscreen display.
-
4-pole stereo output and composite video port.
-
Micro SD port for loading your operating system and storing data.
-
5V/ 2.5A DC power input.
-
Power-over-Ethernet (PoE) support (requires separate PoE HAT)
Package list
- Raspberry Pi 3B+ Module x 1
