QR /1D/2D/code Scanner Bar Code Recognition Module

Description

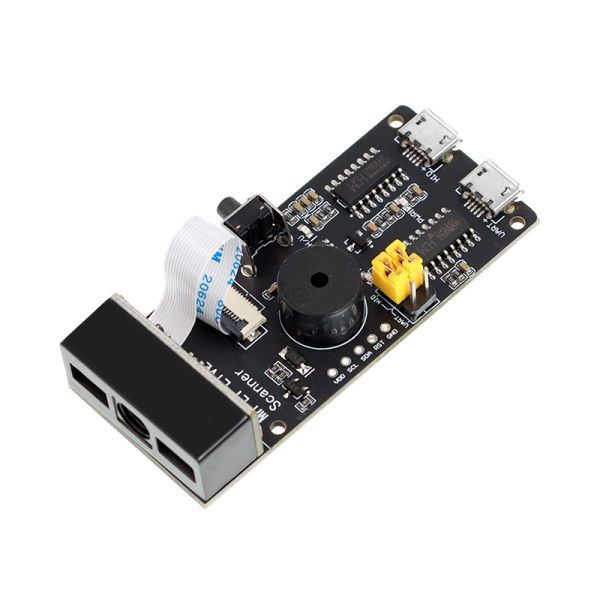

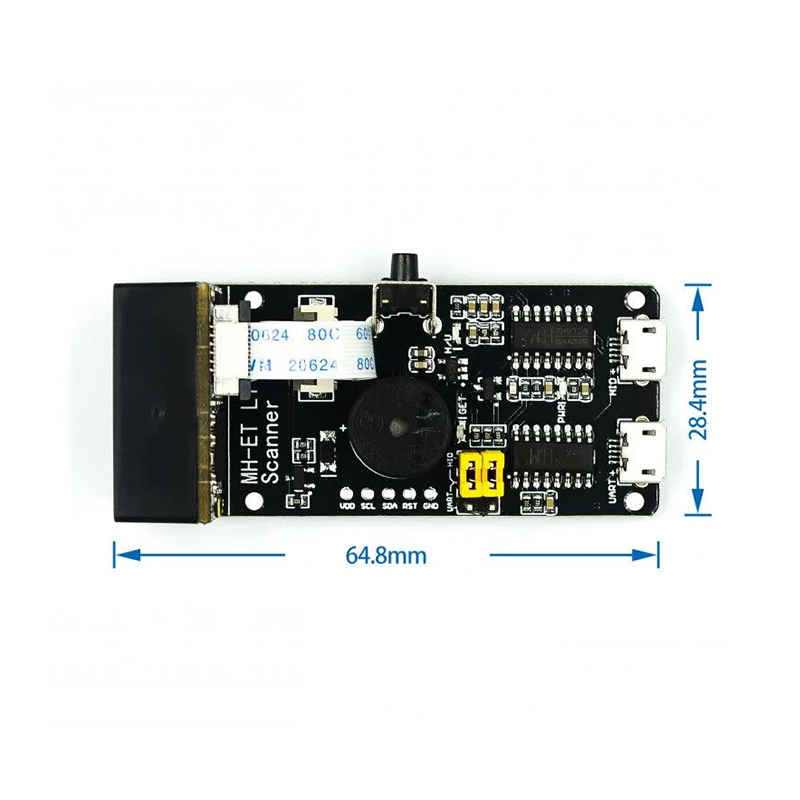

This Scanner v3.0 is a barcode and QR code scanning recognition module. It adopts a professional image processing chip for barcode recognition. It can quickly and accurately read under the high performance of fast and stable reading in complex environments. Take one-dimensional code and two-dimensional code on the carrier of paper, screen, plastic, etc.. Small in size, the onboard USB and UART interface, can be directly connected to the computer, or integrated into a variety of devices. The product features low power consumption and low heat. Quick start, cold start and warm start can be kept on standby, no need to wait, it is ready to open.

Feature

Easy to operate, no need to understand complex image recognition algorithms
Support for reading common one-dimensional codes and two-dimensional codes such as Barcodes and QR
Onboard micro USB and UART serial port for access to a computer or embedded device
Onboard auxiliary light source for reading in a completely dark environment
Support for setting module parameters by scanning the setup code (see the specification for details)
Settable parameters include (read mode, baud rate setting, command mode, prompt tone output adjustment, output format, and barcode selective setting)

Type of barcode/QR code reading

Read barcode type (1D): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat Read the QR code type (2D): QR Code, PDF417, Data Matrix
