Description

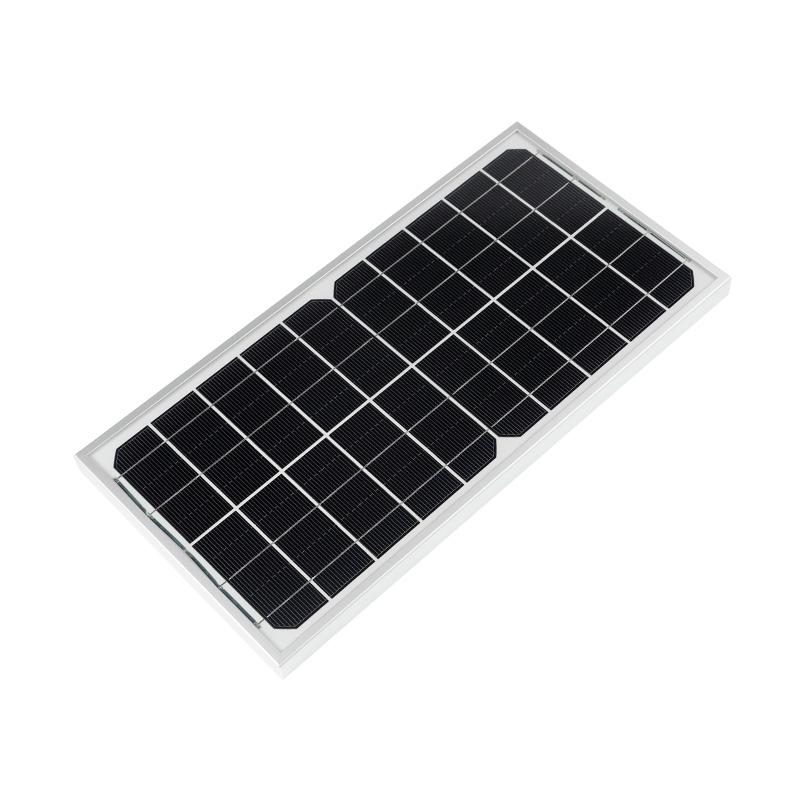

This is a 12 V, 10 W solar panel for ESP32-S3 PowerFeather. In ideal conditions, it is able to saturate ESP32-S3 PowerFeather's maximum charging current limit of 2 A. The rigid aluminum frame and tempered glass cover makes it suitable for outdoor installations. More importantly, this has an open-circuit voltage under 18 V - the maximum external DC voltage ESP32-S3 PowerFeather supports.

This solar panel can be easily connected to ESP32-S3 PowerFeather using the PowerFeather ProtoWing.

Specifications

Cell Type	Monocrystalline
Power	10 W
Vmp (Max Power Point Voltage)	12 V
Voc (Open Circuit Voltage)	13.9 V
Imp (Max Power Current)	830 mA
Isc (Short Circuit Current)	890 mA
Dimensions	355 mm x 180 mm x 18 mm
Weight	0.75 kg
Cable	30 cm, DC5521 barrel jack
Frame	Aluminum
Front Cover	Tempered Glass
Back Sheet Color	White

Package List

(1) PowerFeather Solar Panel

Other Products

Useful Links

See the Documentation for more hardware details and usage guides.
Visit the Community Forum for announcements, conversations, help/support requests and showcases.
