PicoPD - USB-C PD 3.0 PPS Trigger with RP2040
Availability:
Out of stock
Buy 2 for
$19.00
each and save 5 %
Buy 4 for
$18.40
each and save 8 %
×
Add to cart successfully!
Customers Who View This Item Also Bought
PicoPD will help you negotiate the voltage from your USB PD wall plug/power bank while still retaining the full functionality of RP2040.

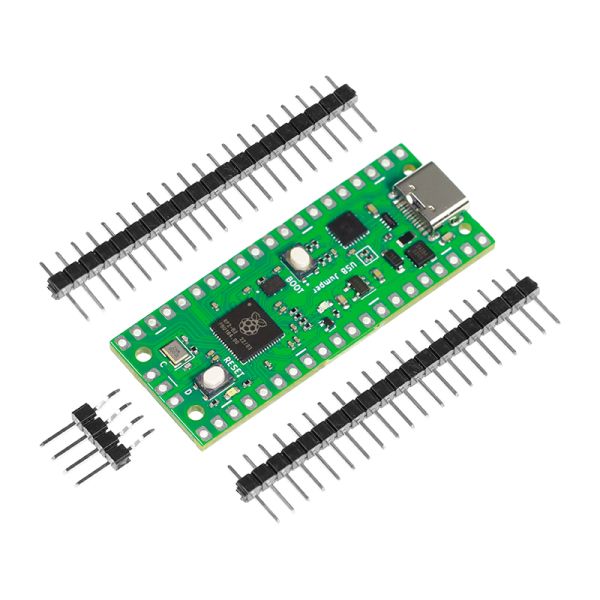

Note: All shipments now include a straight header and USB breakout header. A additional accessory USB-C Splitter is recommeded to enable both PD and Serial Communication.
Introduction
Why can't we just utilize laying around USB-C wall plugs to prototype higher voltage devices? PicoPD will help you negotiate the voltage from your USB PD wall plug/power bank while still retaining the full functionality of RP2040.
Documentation: Hackaday.io - PicoPD
Source Code: PicoPD - GitHub
Example Project: Variable power supply with USB-C PPS - PicoPD
Specification:
Power
Capable of USB PD3.0 PPS provides 3.3V-21V output in 20mV step
Capable of USB PD2.0 Fixed Power of 5, 9, 12, 15, or 20 V at a maximum of 5A (100 W at 20 V)
+20A capable P-MOS load switch tied to USB-C VBUS
USB Type-C port (for power delivery and programming)
USB-C current/voltage reading build-in on the circuit
ESD protection on D+/D-/CC1/CC2 pins
V1.2: 200mA LDO AP2204K-3.3 Low dropout
Microcontroller
RP2040 flexible clock running up to 133 MHz
264kB on-chip SRAM
16MB on-board QSPI flash
LEDs
Red - Power indicator
Green - User controllable - GPIO 25
Reset button
Boot button
Programming: Through USB-C, USB header, or SWD
