Paul's Watch Flasher REV02

Description

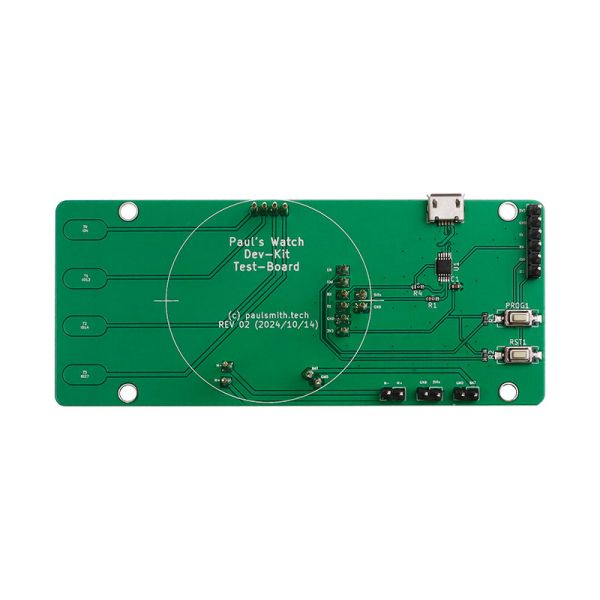

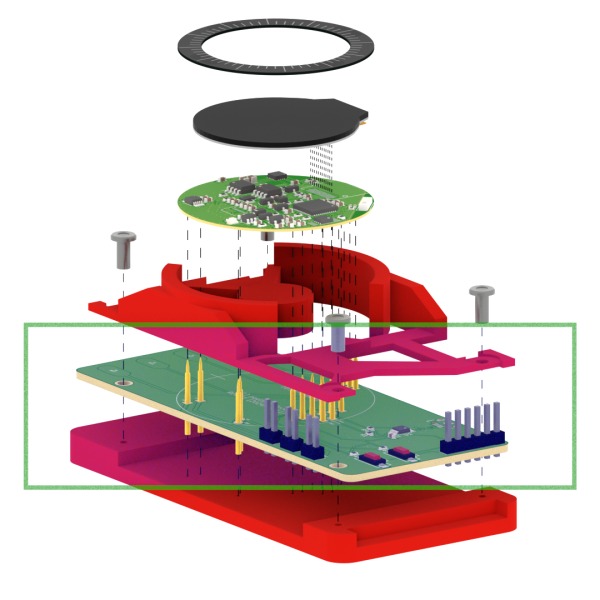

Introducing the Watch Flasher/Tester—a vital tool in Paul's Watch Dev Kit that enhances your development process. This thoughtfully designed PCB, paired with a 3D-printed base and cover, allows users to seamlessly test and verify your software, ensuring your smartwatch is performing at its best. The Watch Mainboard REV05 is pushed onto the 16 pogo pins, and can be held in place or clamped down.

Equipped with a micro USB port for easy connectivity, the Watch Flasher/Tester features a USB to serial interface for straightforward communication with your device. With numerous breakout pins available, you can easily attach a vibration motor to verify haptic feedback, test touch pads for interactive functionality, and connect a LiPo battery for power measurements.

Specification

• dimensions: 101.6mm * 43mm * 1.6mm
• USB-Serial controller: CH340E
• Reset + Prog Button
• 4x Touch buttons
• Pins: 3V3, GND, TX, RX, IO0, EN
• Pins: BAT+, GND
• Pins: 5Vin, GND
• Pins: M+,M- (motor)
• Requires 2 3D printed parts to assemble.
