Open Timecard Mini 2.0 - Essential

The ideal version in the second generation of the Open Timecard Mini for home and test lab, merging effective multi-path mitigation to boost urban accuracy with proven excellent performance even with small antennas.

Why Open Timecard Mini 2.0?

Innovative Sandwich Boards

From high-precision timing for PTP/NTP Grandmaster clock solutions to high-precision location services for Industrial IoT and Automotive. The new mini 2.0 range has what you need.

Save space

The CM4 PCIe baseboard makes integrating your CM4 into existing devices such as PCs or servers easy, saving space and simplifying your workspace.

Full feature

The base board fully utilizes all the CM4 IO board features, including the 40-pin GPIO, 2 USB-C ports, a micro-HDMI port, an eMMC boot port, and a USB-A port.

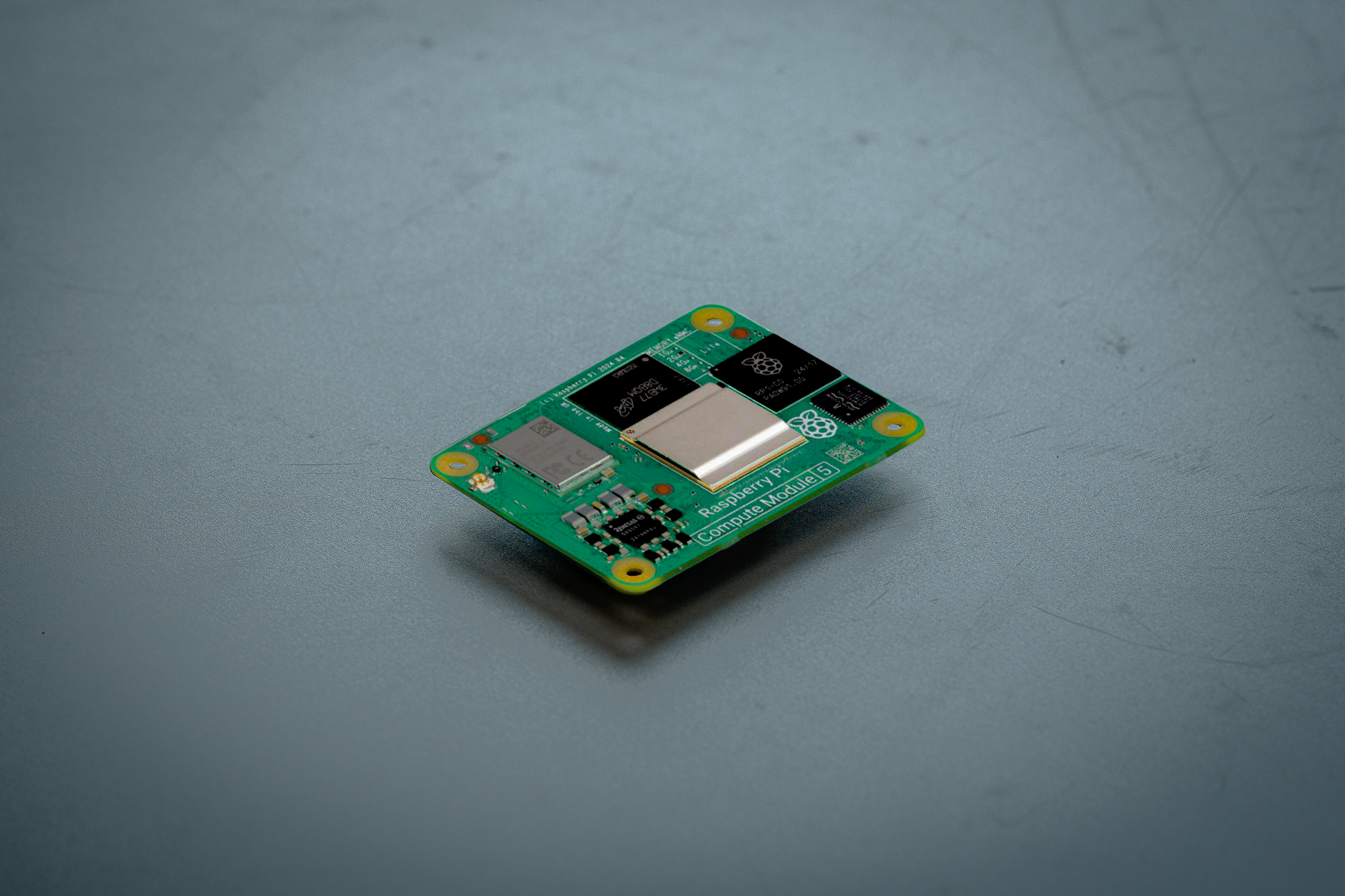

CM5 Compatible

The Open Timecard Mini is now also compatible with the latest Raspberry Pi CM5 via 40Pin GPIO, providing a significant boost over its predecessor with 2-3 times faster processing speeds.

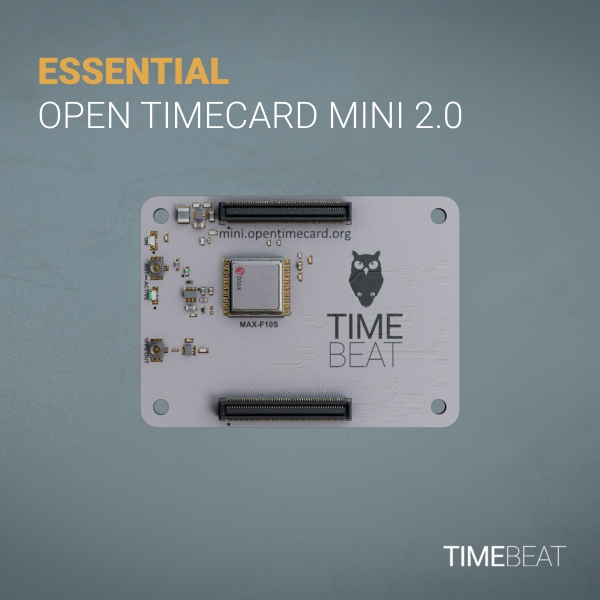

What's inside the Essential?

General Features:

• 1x ANT: u.fl IPEX-1 connector for connecting GNSS antenna input.
• 1x PPS OUT: u.fl IPEX-1 connectors
• 200 Pin top: Direct connection for the Raspberry Pi CM4 footprint

GNSS Features:

• U-blox F10 dual-band receiver
• GPS / QZSS L1C/A (1575.42 MHz), L5 (1176.450 MHz) Galileo E1-B/C (1575.42 MHz), E5a (1176.450 MHz) BeiDou B1C (1575.42 MHz), B2a (1176.450 MHz) NavIC SPS-L5 (1176.450 MHz)
• Timing Accuracy: 30ns-60ns (typical)
• Time-to-First-Fix (TTFF):

• • Cold Start: 28 seconds
  • Reacquisition: 1 seconds

For more information, please visit: Timebeat Open Timecard Mini 2.0
