Nunki Micro Designer CH32V003

Description

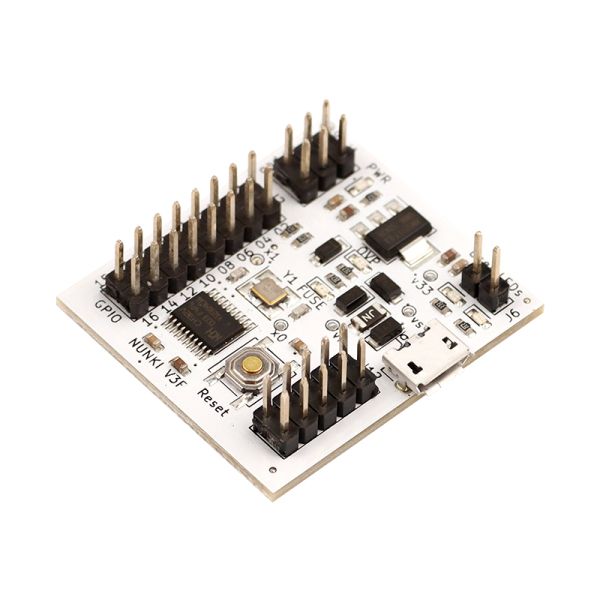

NUNKI Micro Designer is a miniature development board for DIY projects
up to integration into more complex design.

It includes a CH32V003 microcontroller, input side protections, GPIO and
programmation ports for use with standard WCH-Link-E programmer using a
simple 6 pin IDC cable for Power, Programming and UART communication
with a computer.

Onboard Resources

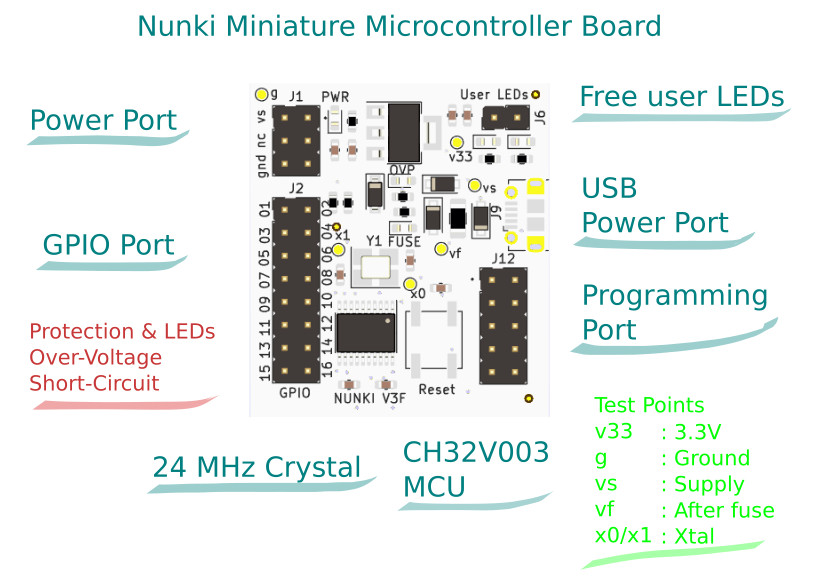

Pin Diagram

See Board manual

Features

CH32V003 Microcontroller
24 MHz Crystal
Many peripherals including I2C, SPI, USART, Timers, Analog to Digital converters
20 pin GPIO
10 pin programmer port
6 pin supply port
USB port for power supply
2 free standing user LEDs
1 reset button
On-board 3.3V regulator
Over-Voltage with Red warning LED
Supply side fuse with Overload/Short-Circuit red warning LED

Specification

RISC-V CH32V003 F4P6 Microcontroller
32 bit RV32 EC core running at 48 MHz with built-in PLL
16k Flash
2k SRAM
3.3V Operating
USB (5V) and power port (5-12V) supply
37x33mm (1.46x1.30 in)
